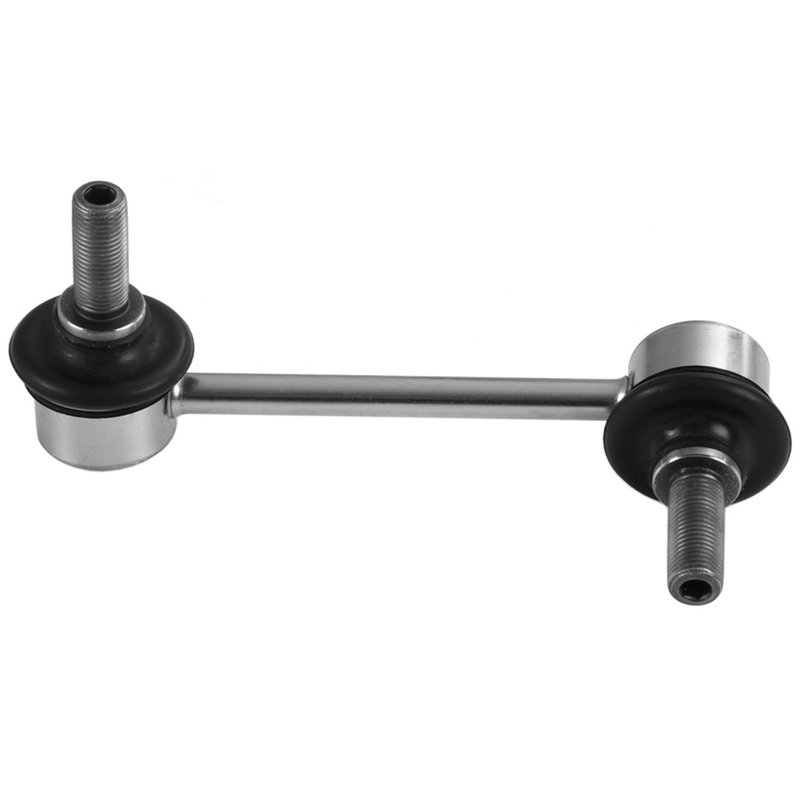

Delphi TC6814 Suspension Stabilizer Bar Link Kit - Rear Right
| Brand | Delphi TC6814 |
|---|---|
| Position | Rear Right |
| Bearing Material | Polyoxymethilen (POM) |
| Bolt Length | 5.02 |
| Bolt Length | 127.5 |
| Bolt Thread Diameter | 0.472 |
| Bolt Thread Diameter | 12.0 |
| Bolts Included | No |
| Bushings Included | No |
| Dust Boot Included | Yes |
| End 1 Type | Ball Joint |
| End 2 Type | Ball Joint |
| Front Or Rear Suspension | Front |
| Grease Fittings Included | No |
| Greaseable | No |
| Length | 5.02 |
| Length | 127.5 |
| Locking Nuts Included | Yes |
| Pre-Greased | No |
| Washers Included | No |
| Weight | 0.76 |
| Fits | Honda · 4 vehicles |
OE expertise. Delphi applies original-equipment know-how to its aftermarket steering portfolio.
Extreme testing. Built to handle temperatures below -40 C and above 120 C, plus 720 hours of salt spray.
Ball joint ends. Both ends use ball joints for dependable suspension link performance.
Cross-references MOOG Chassis Products K750918 and 52320-T6Z-A01 for the same application. See all 2.
OE-Style Front Right Stabilizer Link
The Delphi TC6814 suspension stabilizer bar link kit is built for the front right position on select Honda Ridgeline models. It uses ball joint ends, a dust boot, and a POM bearing material to support stable sway bar connection and consistent suspension response.
Compatible with 2017-2020 Honda Ridgeline, rear right, this Delphi TC6814 part is engineered with OE-focused dimensional and material analysis for proper fit and function. It is a direct replacement choice for drivers servicing front suspension noise, looseness, or worn stabilizer link components on the Honda Ridgeline.
Key Features
- Delphi TC6814 suspension stabilizer bar link kit
- Front suspension application with rear right position listed in fitment data
- Ball joint ends on both sides for articulation
- Dust boot included for joint protection
- POM bearing material for wear resistance
- Locking nuts included
- Not pre-greased and not greaseable
- Length: 127.5 mm / 5.02 in
- Bolt thread diameter: 12.0 mm / 0.472 in
Detailed Description
Delphi TC6814 is a suspension stabilizer bar link kit developed with OE-level engineering practices for aftermarket replacement. Delphi subjects its steering and suspension components to temperature extremes below -40 degrees C and above 120 degrees C, along with extended salt-spray exposure, to evaluate durability in demanding conditions. The result is a stabilizer link designed around dimensional accuracy and material compatibility for the intended application.
This part cross-references MOOG Chassis Products K750918 for the same application. If you are servicing a Honda Ridgeline and need a Delphi TC6814 replacement, verify the listed position and vehicle details before installation.
Common Repair Symptoms
- Clunking or rattling from the suspension over bumps
- Excessive play in the sway bar link connection
- Uneven front-end stability during cornering
- Worn or damaged stabilizer link ball joints
- Noise caused by deteriorated dust boot protection
Installation Notes and Tips
Install this stabilizer bar link in the listed position only after confirming vehicle year, make, model, and side. Inspect the sway bar, mounting points, and adjacent suspension hardware for wear before assembly. Because this part is not pre-greased and does not include grease fittings, it is intended for sealed-service use.
Quality Assurance
Delphi applies OE-focused testing and material analysis to support fitment accuracy and durability across its aftermarket steering and suspension portfolio. The TC6814 is built to align with the requirements of 2017-2020 Honda Ridgeline applications and to meet the demands of everyday suspension service.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2020 | Honda | Ridgeline | Rear Right | — |
| 2019 | Honda | Ridgeline | Rear Right | — |
| 2018 | Honda | Ridgeline | Rear Right | — |
| 2017 | Honda | Ridgeline | Rear Right | — |
