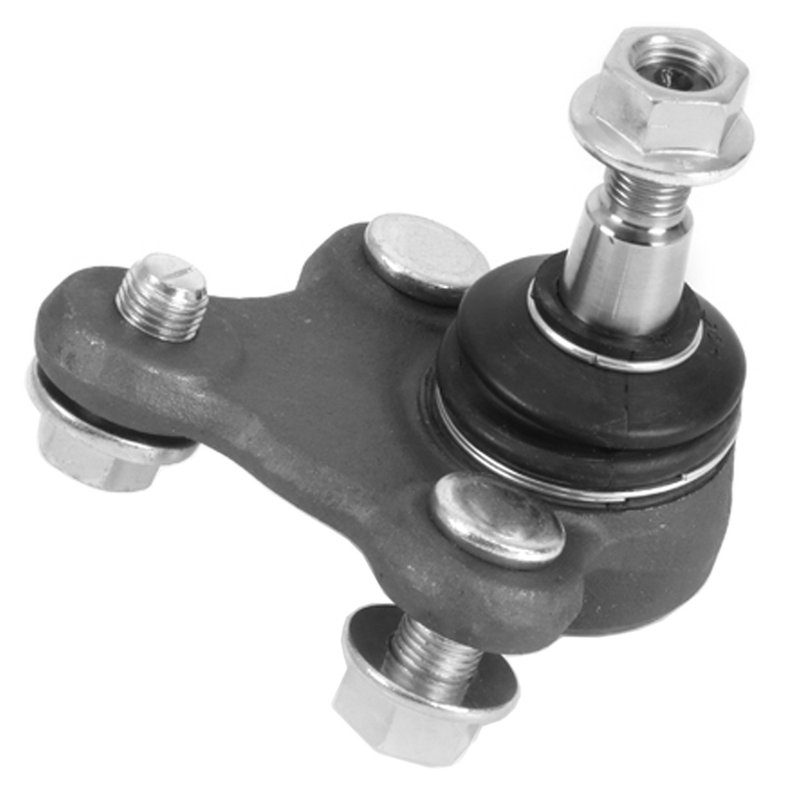

Delphi TC6816 Suspension Ball Joint - Front Right Lower
| Brand | Delphi TC6816 |
|---|---|
| Position | Front Right Lower |
| Adjustable | No |
| Bushings Included | No |
| Castle Nut Included | No |
| Color | Black |
| Cotter Pin Hole | No |
| Cotter Pin Included | No |
| Distance Between Mounting Holes | 33.5 |
| Distance Between Mounting Holes | 43.9 |
| Dust Boot Included | Yes |
| Dust Boot Material | Choloroprene Rubber (CR) |
| Grease Fitting Included | No |
| Greaseable | No |
| Height | 3.543 |
| Height | 90.0 |
| Length | 104 |
| Length | 494 |
| Material | Steel |
| Mount Plate Included | No |
| Mounting Bolt Length | 0.827 |
| Mounting Bolt Length | 21.0 |
| Mounting Bolt Shank Diameter | 0.472 |
| Mounting Bolt Shank Diameter | 12.0 |
| Mounting Bolt Thread Length | 0.827 |
| Mounting Bolt Thread Length | 21.0 |
| Mounting Bolt Thread Pitch | 1.25 |
| Mounting Bolts Included | Yes |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 3 |
| Mounting Type | Bolt On |
| Nuts Included | Yes |
| Stud Tapered End 1 Diameter | 0.591 |
| Stud Tapered End 1 Diameter | 15.0 |
| Stud Tapered End 2 Diameter | 0.673 |
| Stud Tapered End 2 Diameter | 17.1 |
| Stud Thread Diameter | 12.0 |
| Stud Thread Length | 0.807 |
| Stud Thread Length | 20.5 |
| Stud Thread Pitch | 1.25 |
| Stud Type | Threaded |
| Tapered Stud | Yes |
| Washers Included | No |
| Width | 98.0 |
| Fits | Hyundai and Kia · 20 vehicles |
OE expertise. Delphi applies OE engineering to its aftermarket steering parts.
Bolt-on installation. Mounting hardware is included for a straightforward replacement.
Steel construction. A dust boot and threaded tapered stud support durable operation.
Cross-references Beck/Arnley 101-8303, Dorman - Premium BJ60394PR and MOOG Chassis Products K500386 for the same application. See all 5.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
OE-Style Front Right Lower Ball Joint
Delphi TC6816 is a suspension ball joint built for the front right lower position on select Hyundai and Kia applications. It combines OE-based dimensional analysis with durable steel construction and a sealed dust boot to support precise steering and suspension movement.
Compatible with 2017-2023 Hyundai Elantra, 2018-2023 Hyundai Kona, 2018-2020 Hyundai Elantra GT, 2019-2023 Kia Forte, and 2021-2022 Kia Forte5 in the front right lower position. This part cross-references MOOG Chassis Products K500386 for the same application.
Key Features
- Delphi part number TC6816
- Suspension ball joint for front right lower mounting
- Steel construction with black finish
- Dust boot included; chloroprene rubber (CR) boot material
- Bolt-on mounting type with 3 mounting holes
- Mounting bolts and nuts included
- Threaded tapered stud with 12.0 mm stud thread diameter
- Greaseable design not required; no grease fitting included
- OE-focused dimensional and material analysis for fit consistency
Detailed Description
Delphi TC6816 is engineered as an OE-style suspension ball joint for the front right lower position. Delphi applies OE safety technology and aftermarket steering expertise to this component, with testing that includes extreme temperature exposure below -40 degrees C and above 120 degrees C, plus 720 hours of salt spray exposure. The result is a replacement ball joint built to support consistent suspension articulation and stable front-end geometry on the listed Hyundai and Kia vehicles. If you are replacing a worn front right lower ball joint on a 2017-2023 Hyundai Elantra, 2018-2023 Hyundai Kona, 2018-2020 Hyundai Elantra GT, 2019-2023 Kia Forte, or 2021-2022 Kia Forte5, TC6816 provides a direct-fit service part reference.
What It Helps Fix
- Front-end clunking or popping over bumps
- Excessive play in the lower suspension joint
- Uneven tire wear caused by worn steering and suspension geometry
- Loose or imprecise steering feel
- Inspection failure from a damaged or worn ball joint
Installation Notes and Tips
Verify the front right lower position before installation and compare the original part’s mounting style, stud taper, and bolt pattern to TC6816. The part uses a bolt-on design with included mounting bolts and nuts, and the dust boot is already supplied. Always inspect the surrounding control arm, fasteners, and alignment angles during replacement, then perform a wheel alignment after installation.
Quality Assurance
Delphi uses OE-based dimensional and material analysis to improve part-to-part compatibility with the original equipment design. TC6816 is also validated through temperature and corrosion testing to help confirm durability in demanding suspension service.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2023 | Hyundai | Kona | Front Right Lower | — |
| 2023 | Kia | Forte | Front Right Lower | — |
| 2022 | Hyundai | Kona | Front Right Lower | — |
| 2022 | Kia | Forte | Front Right Lower | — |
| 2022 | Kia | Forte5 | Front Right Lower | — |
| 2021 | Hyundai | Kona | Front Right Lower | — |
| 2021 | Kia | Forte | Front Right Lower | — |
| 2021 | Kia | Forte5 | Front Right Lower | — |
| 2020 | Hyundai | Elantra | Front Right Lower | — |
| 2020 | Hyundai | Elantra GT | Front Right Lower | — |
| 2020 | Hyundai | Kona | Front Right Lower | — |
| 2020 | Kia | Forte | Front Right Lower | — |
| 2019 | Hyundai | Elantra | Front Right Lower | — |
| 2019 | Hyundai | Elantra GT | Front Right Lower | — |
| 2019 | Hyundai | Kona | Front Right Lower | — |
| 2019 | Kia | Forte | Front Right Lower | — |
| 2018 | Hyundai | Elantra | Front Right Lower | — |
| 2018 | Hyundai | Elantra GT | Front Right Lower | — |
| 2018 | Hyundai | Kona | Front Right Lower | — |
| 2017 | Hyundai | Elantra | Front Right Lower | — |
