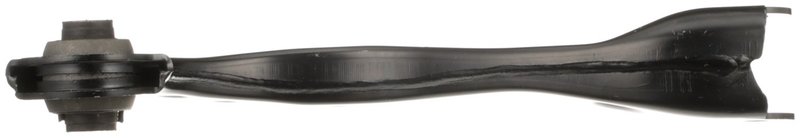

Delphi TC6917 Suspension Control Arm - Rear Left Upper

Rear Left Upper Suspension Control Arm

Restore rear suspension geometry with this Delphi suspension control arm, part number TC6917. Built from steel with black bushings and natural rubber bushings included, it is a direct-fit replacement for the rear left upper position on select Lexus and Toyota models.

Delphi applies OE-focused dimensional and material analysis to help ensure proper fit and consistent performance. This rear left upper control arm is engineered for vehicles such as the Toyota Camry, Toyota Corolla, and Lexus ES350, where accurate suspension alignment and stable rear-end control matter.

Key Features

• Delphi TC6917 suspension control arm for the rear left upper position
• Steel construction for strength and durability
• Black finish with black bushings
• Bushings included; mounting hardware not included
• Natural rubber (NR) bushings for OE-style compliance
• OE-focused dimensional and material analysis for fitment confidence
• Interchange reference: 48790-06010

Detailed Description

The Delphi TC6917 is a rear left upper suspension control arm designed for precise replacement on compatible Lexus and Toyota applications. It is built from steel and supplied with bushings already included, using natural rubber bushings to match the original suspension layout and help maintain proper rear suspension movement. The 11.56-inch (293.5 mm) length supports accurate positioning in the suspension assembly.

Compatible With: 2021-2023 Lexus ES250, rear left upper; 2019-2023 Lexus ES300h, rear left upper; 2019-2023 Lexus ES350, rear left upper; 2018-2023 Toyota Camry, rear left upper; 2019-2023 Toyota Corolla, rear left upper; 2022-2023 Toyota Corolla Cross, rear left upper; 2016-2023 Toyota Prius, rear left upper; 2017-2023 Toyota Prius Prime, rear left upper; 2019-2022 Toyota Avalon, rear left upper; 2018-2022 Toyota C-HR, rear left upper; 2019-2022 Toyota Prius AWD-e, rear left upper; 2019 Toyota Corolla, rear left upper, Japan Built.

What This Part Helps Address

• Rear suspension looseness or instability
• Uneven tire wear caused by worn rear control arm bushings
• Clunking or knocking from the rear suspension area
• Incorrect rear wheel alignment after wear or damage
• Excess movement in the rear left upper suspension link

Installation Notes and Tips

Replace the control arm at the rear left upper position and verify alignment after installation. Because mounting hardware is not included, reuse or source the correct hardware as needed. Inspect adjacent bushings, links, and fasteners before completing the repair, especially on higher-mileage Toyota Camry, Toyota Corolla, and Lexus ES350 applications.

Quality Assurance

Delphi subjects steering and suspension components to extreme temperature and salt-spray testing and uses OE-level dimensional and material analysis to support fit and durability. This part number is TC6917.
