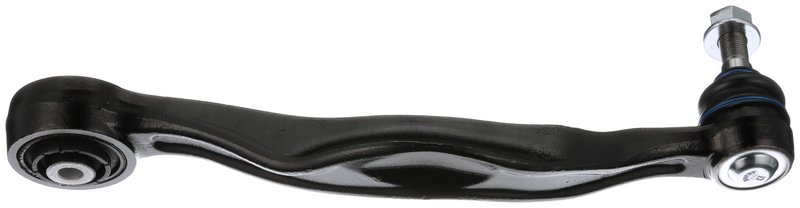

Delphi TC6935 Suspension Control Arm and Ball Joint Assembly - Rear Right Upper Rearward

Delphi TC6935 Rear Right Upper Control Arm

Delphi TC6935 is a rear right upper rearward suspension control arm and ball joint assembly built for direct replacement on select Genesis and Hyundai applications. It combines a steel casting/forged control arm with a pre-greased ball joint, rubber bushings, and included mounting hardware for a service-ready repair.

Compatible with 2017-2020 Genesis G80 and 2015-2016 Hyundai Genesis, this Delphi control arm is engineered for OE-style fit and consistent suspension geometry. The TC6935 part number is a practical choice when replacing worn rear suspension components on the Genesis G80 or Hyundai Genesis.

Key Features

• Part number: TC6935
• Rear right upper rearward position
• Steel control arm with casting/forged construction
• Ball joint included with machined mounting type and threaded stud
• Pre-greased design with dust boot included
• Bushings included; rubber bushing material
• Black control arm, black bushings, and black boot
• Mounting hardware and locking nut included
• Premium grade replacement
• Non-greaseable design

Detailed Description

Delphi applies OE-focused dimensional and material analysis to its aftermarket steering and suspension portfolio, and this TC6935 assembly reflects that approach. The control arm is built from steel with a black finish, paired with a chloroprene rubber dust boot and rubber bushings for a direct-fit suspension repair. It is configured for power steering applications and uses a clockwise (right) thread direction.

This part cross-references Beck/Arnley 102-7822 and Dorman - Premium CB60658PR for the same application. For drivers servicing a Genesis G80 or Hyundai Genesis, TC6935 provides a complete rear suspension control arm and ball joint assembly in one unit.

What It Helps Repair

• Rear suspension clunking from a worn ball joint or bushing
• Uneven rear tire wear caused by loose suspension geometry
• Rear-end instability or wandering during driving
• Excess play in the rear right upper rearward control arm
• Noise and vibration from deteriorated suspension components

Installation Notes

Install on the rear right upper rearward position only. Verify vehicle year, make, model, and suspension layout before replacement. Because the assembly includes the ball joint, bushings, dust boot, and mounting hardware, it is suited to a complete component swap rather than rebuilding individual pieces. Torque fasteners to factory specifications after installation and perform a wheel alignment if required by the repair procedure.

Quality Assurance

Delphi subjects its OE-style parts to extreme temperature and corrosion testing, including exposure below -40 degrees C, above 120 degrees C, and 720 hours of salt spray. That testing supports consistent fit and durability for 2017-2020 Genesis G80 and 2015-2016 Hyundai Genesis rear suspension service.
