Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

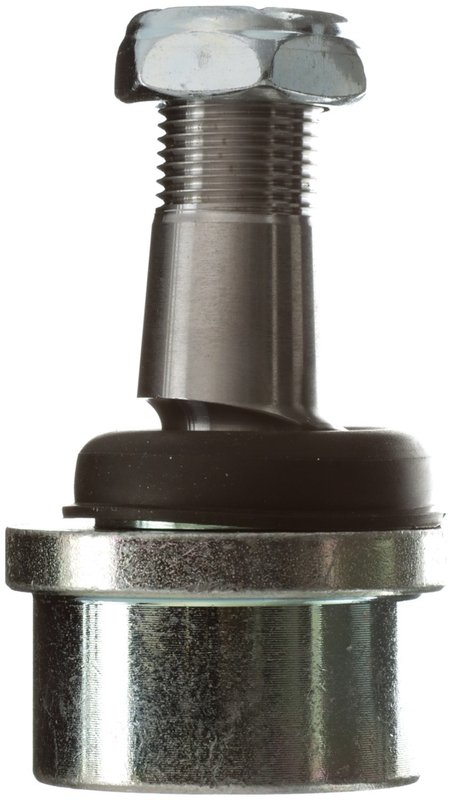

Delphi TC6944 Suspension Ball Joint - Front Lower
| Brand | Delphi TC6944 |
|---|---|
| Position | Front Lower |
| Material | Steel |
| Maximum Outside Diameter | 1.750 |
| Maximum Outside Diameter | 44.45 |
| Length | 3.000 |
| Length | 83.00 |
| Color | Silver |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 55 |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | No |
| Washers Included | No |
| Height | 100.00 |
| Height | 4.000 |
| Mounting Hole Quantity | 0 |
| Adjustable | Yes |
| Greaseable | No |
| Stud Thread Length | 0.8 |
| Stud Thread Length | 20 |
| Stud Type | Threaded |
| Mounting Type | Press-in |
| Dust Boot Material | Rubber |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Fits | Dodge · 12 vehicles |
Standard replacement. Press-in design for straightforward suspension service.
Steel construction. Built with a rubber dust boot for added protection.
OE expertise. Delphi applies dimensional and material analysis for compatibility.
Cross-references Dorman - OE Solutions BJ96166RD, Mevotech Supreme MS25541 and MOOG Chassis Products K8195T for the same application. See all 7.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Delphi Front Lower Ball Joint for Ram
Delphi TC6944 is a standard replacement suspension ball joint built for front lower applications on select Dodge Ram trucks. It combines a steel body, rubber dust boot, and press-in mounting style to support OE-style service on 1994-1999 Dodge Ram 1500 and 1994-1999 Dodge Ram 2500 models.
Key Features
- Front lower suspension ball joint
- Fits 1994-1999 Dodge Ram 1500, front lower
- Fits 1994-1999 Dodge Ram 2500, front lower
- Steel construction with silver finish
- Dust boot included; rubber boot material
- Press-in mounting type with tapered stud
- Adjustable design
- Standard replacement suspension grade
- Delphi part number TC6944
Detailed Description
Delphi TC6944 is engineered for front lower suspension service on Dodge Ram 1500 and Dodge Ram 2500 trucks from 1994 through 1999. Delphi applies OE-focused dimensional and material analysis to help match the aftermarket part to the original application, while the ball joint is tested for temperature extremes and salt-spray exposure to support durability in demanding road conditions. This part cross-references MOOG Chassis Products K8195T for the same application.
The assembly includes a dust boot and uses a threaded, tapered stud with press-in mounting. It does not include a grease fitting, so it is a sealed-style service part for front suspension repair. If you are replacing worn steering and suspension components on a Ram truck, Delphi TC6944 provides a direct front lower ball joint solution for these model years.
What It Helps Address
- Front-end looseness or play in the lower suspension joint
- Clunking or popping noises from the front suspension
- Uneven tire wear related to worn ball joint movement
- Steering instability on Dodge Ram 1500 and Ram 2500 trucks
- Inspection failure caused by excessive suspension joint wear
Installation Notes and Tips
Verify vehicle year, model, and front lower position before ordering Delphi TC6944. Because this is a press-in ball joint, proper suspension service tools are required for removal and installation. Inspect the surrounding control arm, steering components, and mounting surfaces for wear before reassembly. Confirm the tapered stud and thread engagement match the original setup on your Ram truck.
Quality Assurance
Delphi uses OE-based engineering practices for its steering and suspension portfolio, with testing that includes extreme temperature exposure and extended salt-spray evaluation. The brand also performs dimensional and material analysis to support fit and function for the intended application.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 1999 | Dodge | Ram 1500 | 4WD | Front Lower | — |
| 1999 | Dodge | Ram 2500 | 4WD | Front Lower | — |
| 1998 | Dodge | Ram 1500 | 4WD | Front Lower | — |
| 1998 | Dodge | Ram 2500 | 4WD | Front Lower | — |
| 1997 | Dodge | Ram 1500 | 4WD | Front Lower | — |
| 1997 | Dodge | Ram 2500 | 4WD | Front Lower | — |
| 1996 | Dodge | Ram 1500 | 4WD | Front Lower | — |
| 1996 | Dodge | Ram 2500 | 4WD | Front Lower | — |
| 1995 | Dodge | Ram 1500 | 4WD | Front Lower | — |
| 1995 | Dodge | Ram 2500 | 4WD | Front Lower | — |
| 1994 | Dodge | Ram 1500 | 4WD | Front Lower | — |
| 1994 | Dodge | Ram 2500 | 4WD | Front Lower | — |
