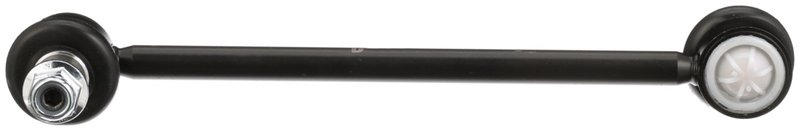

Delphi TC6966 Suspension Stabilizer Bar Link - Front
| Brand | Delphi TC6966 |
|---|---|
| Position | Front |
| Length | 230.00 |
| Length | 9.060 |
| Dust Boot Included | Yes |
| Width | 1.73 |
| Width | 44 |
| Washers Included | No |
| Height | 2.560 |
| Height | 65.00 |
| Grade Type | Standard replacement |
| Bolts Included | No |
| Housing Material | Steel |
| Greaseable | No |
| Weight | 0.873 |
| Bearing Material | Plastic |
| Wrench Size | 17mm |
| Locking Nuts Included | Yes |
| Fits | Tesla · 8 vehicles |
Standard replacement. OE expertise applied for compatibility with the original part.
Steel housing. Built with a plastic bearing and dust boot for durable service.
Locking nuts included. Ready for a secure, straightforward installation.
Cross-references Mevotech Supreme MS95807 and 1030603-00-B for the same application. See all 2.
OE-Style Front Stabilizer Bar Link
Delphi TC6966 is a front suspension stabilizer bar link built for the 2014-2021 Tesla S. It uses OE-focused dimensional and material analysis to support proper fitment and consistent suspension response on this application.
Key Features
- Fits 2014-2021 Tesla S, front
- Delphi part number TC6966
- Steel housing for durable suspension service
- Plastic bearing material
- Dust boot included
- Standard replacement grade type
- Locking nuts included
- 17 mm wrench size
- Front position application
Detailed Description
This Delphi suspension stabilizer bar link is engineered for front-end service on the Tesla S and reflects Delphi’s OE-based approach to aftermarket steering and suspension parts. The TC6966 measures 230.00 mm in length, 44 mm in width, and 65 mm in height, with a steel housing and dust boot included for added protection at the joint area. Delphi validates parts through temperature extremes and salt-spray exposure, then checks dimensions and materials to help maintain OE-style compatibility. This part cross-references Mevotech Supreme MS95807 for the same application.
Common Problems This Part Can Help Address
- Front suspension clunking over bumps
- Loose or imprecise stabilizer bar connection
- Excessive sway-bar link wear at the front axle
- Noise caused by deteriorated link components
- Restoring stable front-end handling on a Tesla S
Installation Notes and Tips
Install TC6966 at the front position only. Verify the existing link length and mounting style before replacement, and use the specified 17 mm wrench size during service. Locking nuts are included; bolts and washers are not listed as included. Inspect adjacent sway bar and suspension components for wear before completing the repair on a Tesla S.
Quality Assurance
Delphi applies OE safety and dimensional expertise to this aftermarket suspension link. The part is tested for temperature extremes below -40 degrees C and above 120 degrees C, and it is exposed to 720 hours of salt spray to evaluate durability in demanding conditions.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2021 | Tesla | S | AWD | Front | — |
| 2020 | Tesla | S | AWD | Front | — |
| 2019 | Tesla | S | AWD | Front | — |
| 2018 | Tesla | S | AWD | Front | — |
| 2017 | Tesla | S | AWD | Front | — |
| 2016 | Tesla | S | AWD | Front | — |
| 2015 | Tesla | S | AWD | Front | — |
| 2014 | Tesla | S | AWD | Front | — |
