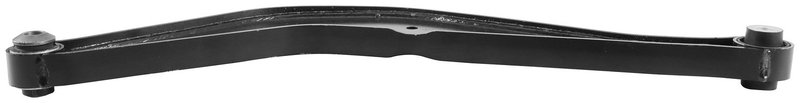

Delphi TC7009 Lateral Arm - Rear Left Lower Rearward or Rear Left Upper Rearward
| Brand | Delphi TC7009 |
|---|---|
| Position | Rear Left Lower Rearward and Rear Left Upper Rearward |
| Material | Steel |
| Bushing Color | Black |
| Length | 24.01 |
| Length | 610.0 |
| Color | Black |
| End 1 Type | Bushing |
| End 2 Type | Bushing |
| Bushings Included | Yes |
| Mounting Hardware Included | No |
| Adjustable | No |
| Bushing Material | Rubber |
| Mounting Hole Diameter | 0.49 |
| Mounting Hole Diameter | 0.57 |
| Mounting Hole Diameter | 12.5 |
| Mounting Hole Diameter | 14.5 |
| Position(s) | Rear left lower rearward, rear left upper rearward. for the posit |
| Fits | Buick and Chevrolet · 10 vehicles |
OE-focused design. Delphi applies OE expertise to aftermarket steering and suspension parts.
Steel construction. A black-finished arm with rubber bushings for suspension service.
Extreme testing. Exposed to severe temperatures and 720 hours of salt spray.
Cross-references Mevotech Original Grade GS501263, Mevotech Supreme CMS501263 and MOOG Chassis Products RK643569 for the same application. See all 8.
Overview
Delphi TC7009 is a steel lateral arm built with rubber bushings and a black finish for suspension service where OE-style dimensions matter. It is engineered for rear left lower rearward and rear left upper rearward applications on select Chevrolet Malibu and Buick Regal Sportback models.
Key Features
- Steel construction with black coating
- Rubber bushings included at both ends
- Non-adjustable design for direct replacement use
- OE-focused dimensional and material analysis
- Part number TC7009 for application matching
Detailed Description
Delphi TC7009 lateral arm is designed around OE-style fit and material selection for suspension repair. Delphi applies its OE expertise to the aftermarket steering and suspension portfolio, with testing that includes extreme temperature exposure and extended salt-spray resistance. The arm uses steel construction, black bushings, and rubber bushing material to match the intended suspension geometry and mounting requirements. This part cross-references Monroe Shocks & Struts (e.g., 527181, 23350587) for the same application.
Compatible With Chevrolet Malibu and Buick Regal Sportback applications, TC7009 supports rear suspension service where the original arm has wear, corrosion, or bushing deterioration. Use TC7009 when replacing a lateral arm that must match OE dimensions and mounting points on these specific vehicles.
What It Is Used For
- Replacing a worn or damaged rear suspension lateral arm
- Addressing clunking or looseness from deteriorated bushings
- Restoring suspension alignment geometry after component wear
- Correcting corrosion-related failure in the original arm
Installation Notes
Fits 2016-2022 Chevrolet Malibu, Rear Left Lower Rearward. Fits 2018-2020 Buick Regal Sportback, Rear Left Upper Rearward. Verify the application-specific position before ordering, since the same part number is listed for more than one rear-left location. Mounting hardware is not included.
Quality Assurance
Delphi subjects parts to extreme temperature testing and 720 hours of salt spray, and uses dimensional and material analysis to improve OE-to-aftermarket compatibility. Part number TC7009 is backed by Delphi's OE-focused engineering approach.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2022 | Chevrolet | Malibu | — | Rear Left Lower Rearward | — |
| 2021 | Chevrolet | Malibu | — | Rear Left Lower Rearward | — |
| 2020 | Buick | Regal Sportback | FWD | Rear Left Upper Rearward | — |
| 2020 | Chevrolet | Malibu | — | Rear Left Lower Rearward | — |
| 2019 | Buick | Regal Sportback | FWD | Rear Left Upper Rearward | — |
| 2019 | Chevrolet | Malibu | — | Rear Left Lower Rearward | — |
| 2018 | Buick | Regal Sportback | FWD | Rear Left Upper Rearward | — |
| 2018 | Chevrolet | Malibu | — | Rear Left Lower Rearward | — |
| 2017 | Chevrolet | Malibu | — | Rear Left Lower Rearward | — |
| 2016 | Chevrolet | Malibu | — | Rear Left Lower Rearward | — |
| No rows match your filter. | |||||
