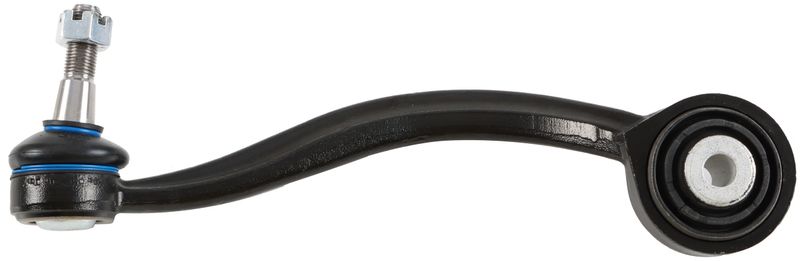

Delphi TC7017 Suspension Control Arm and Ball Joint Assembly - Front Right Upper Forward

OE-Style Front Right Upper Forward Control Arm

Delphi TC7017 is a premium suspension control arm and ball joint assembly for the front right upper forward position. It is built for the 2017-2020 Genesis G80 and the 2014-2015 Hyundai Genesis, with OE-focused materials and dimensional checks for proper fit.

Delphi applies OE safety and engineering practices to its aftermarket steering and suspension portfolio. This assembly is tested for extreme temperature exposure and salt-spray resistance, helping support consistent performance in demanding road conditions.

Key Features

• Part number: TC7017
• Fits front right upper forward suspension position
• Compatible with 2017-2020 Genesis G80 and 2014-2015 Hyundai Genesis
• Steel control arm with casting/forged construction
• Ball joint included with press-in mounting type
• Threaded ball joint stud with clockwise (right) thread direction
• Pre-greased design with bushings, dust boot, mounting hardware, and locking nut included
• Black control arm, black bushings, and black dust boot
• Premium grade type with rubber bushings and chloroprene rubber dust boot
• Non-adjustable, greaseable: no

Detailed Description

Delphi TC7017 is a front right upper forward suspension control arm and ball joint assembly engineered for direct replacement service on the Genesis G80 and Hyundai Genesis. The steel arm uses a forged/cast construction for strength, while the included ball joint, bushings, and dust boot help restore steering and suspension connection points in one assembly. Delphi’s OE-based dimensional and material analysis supports accurate fitment between the original and replacement part, making this a practical choice for Genesis G80 front suspension repair and Hyundai Genesis upper control arm replacement.

This part cross-references Beck/Arnley 102-7816 for the same application.

Common Repair Uses

• Front-end clunking or looseness from worn upper control arm components
• Uneven tire wear caused by suspension geometry issues
• Steering wander or reduced directional stability
• Ball joint play in the front right upper forward suspension position
• Cracked bushings or damaged dust boot at the control arm assembly

Installation Notes and Tips

Install TC7017 in the front right upper forward position only. Verify the threaded stud direction, press-in ball joint style, and mounting hole layout before installation. Because the assembly is pre-greased and includes the ball joint, bushings, dust boot, mounting hardware, and locking nut, it is ready for replacement service once the old component is removed and the suspension is aligned.

Quality Assurance

Delphi subjects its OE-style steering and suspension parts to temperature extremes below -40 degrees C and above 120 degrees C, along with extended salt-spray exposure, to evaluate durability and corrosion resistance. The brand’s OE engineering background and material analysis are used to support fit and performance consistency for this replacement assembly.
