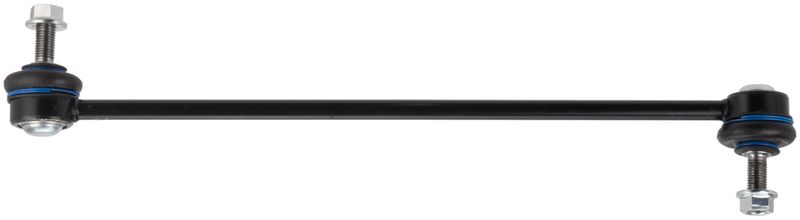

Delphi TC7030 Suspension Stabilizer Bar Link - Front

Front Suspension Stabilizer Link

Delphi TC7030 is a front suspension stabilizer bar link built as a standard replacement for select Hyundai and Kia applications. It uses ball joint ends, a steel housing, and a rubber dust boot to support consistent front-end suspension movement on vehicles such as the Hyundai Kona, Kia Soul, and Hyundai Veloster.

Key Features

• Part number: TC7030
• Front suspension stabilizer bar link
• Standard replacement grade
• Ball joint ends on both sides
• Steel housing with plastic bearing material
• Rubber dust boot included
• Locking nuts and hardware included
• Rod type: suspension rod
• Bar diameter: 9.00 mm
• Length: 295.00 mm

Detailed Description

Delphi TC7030 is engineered for the front position and built to match OE-style dimensions and material requirements for proper suspension geometry. Delphi applies dimensional and material analysis to improve OE and aftermarket part compatibility, and each link is tested across extreme temperature ranges and salt-spray exposure to evaluate durability in demanding road conditions. This part cross-references MOOG Chassis Products K750890 for the same application.

Compatible With 2018-2023 Hyundai Kona, front; 2019-2023 Hyundai Kona Electric, front; 2022-2023 Hyundai Kona N, front; 2021-2023 Kia Seltos, front; 2019-2023 Kia Soul, front; 2020-2023 Kia Soul EV, front; 2019-2022 Hyundai Veloster N, front; and 2019-2021 Hyundai Veloster, front. The Delphi TC7030 is a direct-fit front stabilizer link for these listed vehicles.

Common Issues This Part May Address

• Front suspension clunking or rattling over bumps
• Excessive play in the stabilizer bar connection
• Worn ball joints at the link ends
• Noise caused by deteriorated dust boot protection
• Loose or unstable front sway bar linkage

Installation Notes and Tips

Verify the front position and compare the original link length, end style, and bar diameter before installation. Use the included hardware and locking nuts during replacement, and confirm fastener torque to the vehicle manufacturer specification. Because this link uses ball joint ends and a standard replacement design, it is important to inspect adjacent suspension components for wear before completing the repair.

Quality Assurance

Delphi uses OE-focused engineering practices for its steering and suspension portfolio, including dimensional checks, material analysis, temperature testing below -40 degrees C and above 120 degrees C, and 720 hours of salt-spray exposure. These validation steps support consistent fit and durability for front suspension service on Hyundai Kona, Kia Soul, and related applications.
