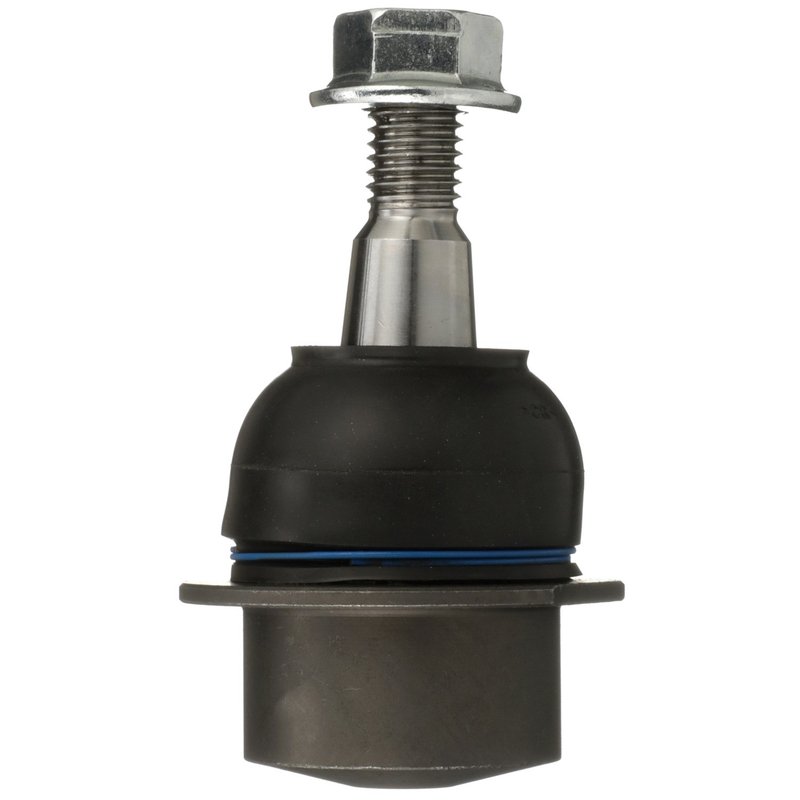

Delphi TC7135 Suspension Ball Joint - Front Left or Front Left Lower
| Brand | Delphi TC7135 |
|---|---|
| Position | Front Left Lower |
| Adjustable | No |
| Ball Joint Assembly | Yes |
| Bushings Included | No |
| Castle Nut Included | Yes |
| Color | Silver |
| Cotter Pin Hole | Yes |
| Cotter Pin Included | Yes |
| Dust Boot Included | Yes |
| Dust Boot Material | Choloroprene Rubber (CR) |
| Grease Fitting Included | No |
| Greaseable | No |
| Height | 3.425 |
| Height | 87.0 |
| Item Grade | Standard Replacement |
| Length | 48 |
| Material | Steel |
| Maximum Outside Diameter | 1.89 |
| Maximum Outside Diameter | 48.0 |
| Mount Plate Included | No |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 0 |
| Mounting Type | Pressed |
| Nuts Included | Yes |
| Position(s) | Front Left, Front Left Lower. For the position specific to your vehicle, refer to the Application tab. |
| Stud Tapered End 1 Diameter | 0.689 |
| Stud Tapered End 1 Diameter | 17.5 |
| Stud Tapered End 2 Diameter | 0.787 |
| Stud Tapered End 2 Diameter | 20.0 |
| Stud Thread Diameter | 0.551 |
| Stud Thread Diameter | 14.0 |
| Stud Thread Length | 0.846 |
| Stud Thread Length | 21.5 |
| Stud Thread Pitch | 2.0 |
| Stud Type | Threaded |
| Tapered Stud | Yes |
| Washers Included | No |
| Width | 48.0 |
| Fits | Cadillac · 23 vehicles |
Standard replacement. OE expertise helps ensure compatibility with the original part.
Steel construction. Built with a dust boot and corrosion-tested for demanding conditions.
Pressed fit. Includes mounting hardware, nuts, cotter pin, and castle nut.
Cross-references Dorman - OE Solutions 521-021, Dorman - Premium CB90463PR and 25862781 for the same application. See all 4.
Delphi TC7135 Front Left Lower Ball Joint
Delphi TC7135 is a standard replacement suspension ball joint built for front-end steering and suspension service. It is a pressed-in, steel ball joint with a dust boot, castle nut, cotter pin, and mounting hardware included for the listed applications.
Key Features
- Steel construction with a silver finish
- Pressed mounting type for OE-style suspension service
- Threaded, tapered stud with 14.0 mm stud thread diameter
- Dust boot included; boot material is chloroprene rubber (CR)
- Castle nut, cotter pin, nuts, and mounting hardware included
- Non-greaseable design with no grease fitting
- Standard replacement part for front left and front left lower positions
Application Details
This Delphi ball joint is engineered for select Cadillac CTS, Cadillac STS, and Cadillac SRX front suspension applications. It fits 2008-2014 Cadillac CTS, front left lower; 2007-2011 Cadillac STS, front left lower, with MX7 transmission code; 2004-2009 Cadillac SRX, front left lower; and 2005-2006 Cadillac STS, front left, with MV3 transmission code. Delphi TC7135 is a direct-fit suspension service part for these OE-style positions.
Delphi applies OE dimensional and material analysis to help maintain proper compatibility between the original suspension geometry and the replacement part. The part is tested across extreme temperature ranges and salt-spray exposure to evaluate durability in demanding road conditions. This part cross-references Dorman OE Solutions 521-021 for the same application.
Common Problems This Part Can Address
- Front suspension looseness or play
- Clunking or popping noises from the lower control arm area
- Uneven tire wear caused by worn ball joint movement
- Steering wander or imprecise front-end response
- Inspection failure due to excessive suspension wear
Installation Notes
Delphi TC7135 uses a pressed mounting design, so installation requires proper suspension service tools and correct press procedures. Verify the vehicle position, transmission code notes, and stud taper before installation on Cadillac CTS, Cadillac STS, or Cadillac SRX applications. Always confirm alignment after replacing a front left lower ball joint.
Quality Assurance
Delphi evaluates this suspension ball joint for OE-style fit and material compatibility, with testing that includes extreme temperature exposure and extended salt-spray resistance. The design reflects Delphi’s OE-focused steering and suspension expertise for aftermarket replacement use.
| Year | Make | Model | Body Type | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2014 | Cadillac | CTS | Wagon | AWD | Front Left Lower | — |
| 2014 | Cadillac | CTS | Coupe | AWD | Front Left Lower | — |
| 2013 | Cadillac | CTS | — | AWD | Front Left Lower | — |
| 2012 | Cadillac | CTS | — | AWD | Front Left Lower | — |
| 2011 | Cadillac | CTS | — | AWD | Front Left Lower | — |
| 2011 | Cadillac | STS | — | — | Front Left Lower | with MX7 Transmission Code |
| 2010 | Cadillac | CTS | Sedan | AWD | Front Left Lower | — |
| 2010 | Cadillac | CTS | Wagon | AWD | Front Left Lower | — |
| 2010 | Cadillac | STS | — | — | Front Left Lower | with MX7 Transmission Code |
| 2009 | Cadillac | CTS | — | AWD | Front Left Lower | — |
| 2009 | Cadillac | SRX | — | — | Front Left Lower | — |
| 2009 | Cadillac | STS | — | RWD | Front Left Lower | with MX7 Transmission Code |
| 2009 | Cadillac | STS | — | AWD | Front Left Lower | with MX7 Transmission Code |
| 2008 | Cadillac | CTS | — | AWD | Front Left Lower | — |
| 2008 | Cadillac | SRX | — | — | Front Left Lower | — |
| 2008 | Cadillac | STS | — | AWD | Front Left Lower | with MX7 Transmission Code |
| 2007 | Cadillac | SRX | — | — | Front Left Lower | — |
| 2007 | Cadillac | STS | — | AWD | Front Left Lower | with MX7 Transmission Code |
| 2006 | Cadillac | SRX | — | — | Front Left Lower | — |
| 2006 | Cadillac | STS | — | — | Front Left | with MV3 Transmission Code |
| 2005 | Cadillac | SRX | — | — | Front Left Lower | — |
| 2005 | Cadillac | STS | — | — | Front Left | with MV3 Transmission Code |
| 2004 | Cadillac | SRX | — | — | Front Left Lower | — |
