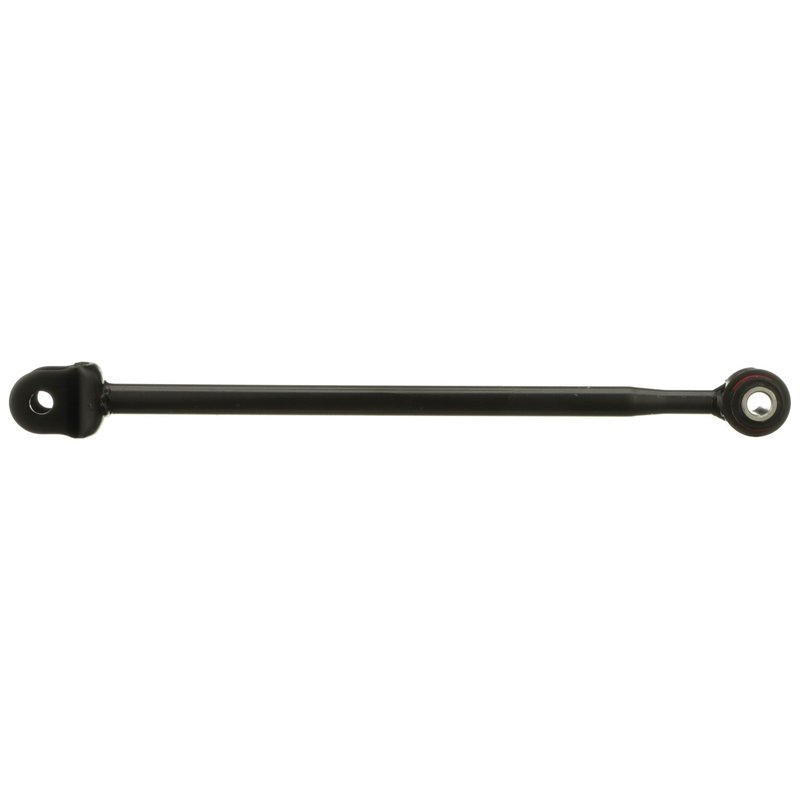

Delphi TC7275 Suspension Control Arm - Rear Forward

OE-Style Rear Forward Control Arm for Toyota Solara

Delphi TC7275 is a standard replacement suspension control arm built for the rear forward position on select Toyota Solara models. It uses steel construction with a forged/cast design, an E-coat finish, and a preinstalled ball joint to support precise rear suspension geometry.

Fits 2004-2008 Toyota Solara, rear forward. This Delphi control arm is engineered with OE-focused dimensional and material analysis to help maintain proper alignment and suspension response on the Toyota Solara.

Key Features

• Part number: TC7275
• Fits rear forward position on 2004-2008 Toyota Solara
• Steel construction with forged/cast manufacturing
• E-coat finish for added corrosion resistance
• Ball joint included; bushings not included
• Straight shape with standard replacement grade
• Black finish and black bushing color
• Non-adjustable design with plastic bearing type

Detailed Description

Delphi TC7275 is a suspension control arm for the rear forward location on 2004-2008 Toyota Solara applications. It measures 485.0 in length, 43.0 in width, and 52.0 in height, with 443.0 distance between mounting holes for OE-style fitment. The steel body and E-coat finish are selected to handle demanding undercar conditions, while the included ball joint supports a complete service replacement where the original joint is worn.

Delphi applies OE-level dimensional and material analysis to help ensure the aftermarket part matches the original suspension layout. This makes TC7275 a practical choice for Toyota Solara rear suspension service when restoring control arm integrity and maintaining consistent wheel location.

This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.

What It Helps Fix

• Rear suspension looseness or clunking from a worn control arm assembly
• Uneven rear tire wear caused by altered suspension geometry
• Alignment instability after bushing or ball joint wear
• Excessive rear-end movement over bumps or during cornering
• Noise from a deteriorated rear forward suspension arm

Installation Notes and Tips

Install Delphi TC7275 in the rear forward position only on confirmed 2004-2008 Toyota Solara applications. Verify mounting-hole spacing, arm orientation, and suspension condition before installation. Because bushings are not included, inspect related wear components and replace any damaged hardware or adjacent suspension parts as needed during service.

Quality Assurance

Delphi tests this suspension control arm for OE-style performance across extreme temperature and corrosion exposure conditions, including subzero temperatures, high heat, and extended salt-spray testing. The brand’s OE engineering background supports consistent fit and material selection for replacement service.
