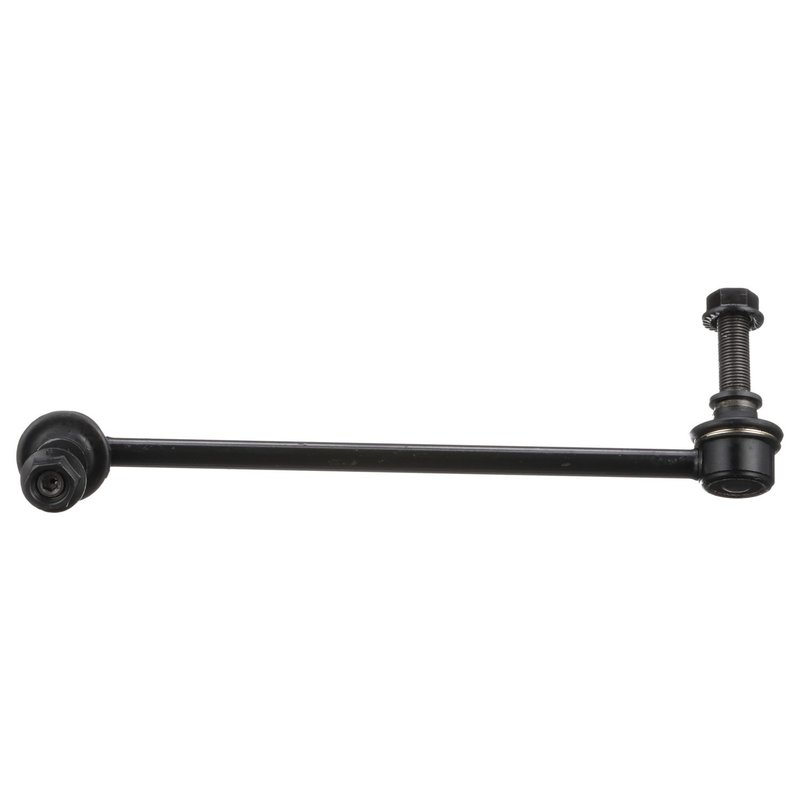

Delphi TC7649 Suspension Stabilizer Bar Link - Front Right
| Brand | Delphi TC7649 |
|---|---|
| Position | Front Right |
| Material | Steel |
| Length | 245.0 |
| End 1 Type | Male |
| End 2 Type | Male |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Bolt Thread Size | M12 x 1.25 |
| Width | 28.0 |
| Washers Included | Yes |
| Height | 73.0 |
| Grade Type | Regular |
| Bolts Included | No |
| Housing Material | Steel |
| Greaseable | No |
| Bolt Head Diameter | 12.0 |
| Bearing Material | Steel |
| Bolt Length | 1.5 |
| Distance Between Mounting Holes | 245.0 |
| Locking Nuts Included | Yes |
| Item Grade | Standard replacement |
| Fits | Cadillac and Chevrolet · 34 vehicles |
Standard replacement. OE expertise helps ensure compatibility with the original part.
Steel construction. Built with steel housing and bearing materials for durable service.
Dust boot included. Helps protect the link from dirt and moisture.
Cross-references MOOG Chassis Products K750673 and 20761142 for the same application. See all 2.
Delphi Front Right Stabilizer Bar Link TC7649
Delphi TC7649 is a front right suspension stabilizer bar link built for OE-style replacement on select Cadillac and Chevrolet applications. It uses steel construction, male ends, and a dust boot to support consistent sway bar connection and steering response.
Key Features
- Part number: TC7649
- Front right suspension stabilizer bar link
- Steel material and steel housing for standard replacement use
- Male end 1 and male end 2 configuration
- Dust boot included; washers and locking nuts included
- M12 x 1.25 bolt thread size
- Item grade: standard replacement
- Compatible with 2020-2025 Cadillac CT4, front right
- Compatible with 2020-2025 Cadillac CT5, front right
- Compatible with 2016-2024 Chevrolet Camaro, front right
- Compatible with 2013-2019 Cadillac ATS, front right
- Compatible with 2014-2019 Cadillac CTS, front right
Detailed Description
Delphi TC7649 is engineered as a direct-fit suspension stabilizer bar link for the front right position. It is designed around OE dimensional and material analysis to help maintain proper fitment between the original and replacement part, making it a practical choice for Cadillac CT4, Cadillac CT5, Chevrolet Camaro, Cadillac ATS, and Cadillac CTS applications. The steel construction, regular grade design, and included dust boot support dependable service in everyday suspension use. Delphi also validates its steering and suspension components through extreme temperature exposure and extended salt-spray testing to evaluate durability in demanding conditions.
This part cross-references MOOG Chassis Products K750673 for the same application.
What It Helps Address
- Front-end clunking or rattling from a worn stabilizer bar link
- Excessive sway bar movement at the front right corner
- Loose or inconsistent steering feel over bumps and turns
- Suspension noise caused by worn link joints or damaged protective boots
- Restoring proper sway bar connection on select Cadillac and Chevrolet models
Installation Notes and Tips
Install at the front right position only and verify thread size, mounting dimensions, and end configuration before installation. Because this link uses male ends and M12 x 1.25 threads, confirm the mating hardware and suspension layout match the vehicle application. Always inspect adjacent sway bar bushings, control arm components, and mounting points for wear before completing the repair.
Quality Assurance
Delphi applies OE-focused dimensional and material analysis to support fit and function, and its suspension components are tested for temperature extremes and salt-spray exposure to evaluate durability. Part number TC7649 is built as a standard replacement for confirmed front right applications on Cadillac and Chevrolet vehicles.
| Year | Make | Model | Body Type | # Doors | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2025 | Cadillac | CT4 | — | — | RWD | Front Right | — |
| 2025 | Cadillac | CT5 | — | — | RWD | Front Right | — |
| 2024 | Cadillac | CT4 | — | — | RWD | Front Right | — |
| 2024 | Cadillac | CT5 | — | — | RWD | Front Right | — |
| 2024 | Chevrolet | Camaro | — | — | — | Front Right | — |
| 2023 | Cadillac | CT4 | — | — | RWD | Front Right | — |
| 2023 | Cadillac | CT5 | — | — | RWD | Front Right | — |
| 2023 | Chevrolet | Camaro | — | — | — | Front Right | — |
| 2022 | Cadillac | CT4 | — | — | RWD | Front Right | — |
| 2022 | Cadillac | CT5 | — | — | RWD | Front Right | — |
| 2022 | Chevrolet | Camaro | — | — | — | Front Right | — |
| 2021 | Cadillac | CT4 | — | — | RWD | Front Right | — |
| 2021 | Cadillac | CT5 | — | — | RWD | Front Right | — |
| 2021 | Chevrolet | Camaro | — | — | — | Front Right | — |
| 2020 | Cadillac | CT4 | — | — | RWD | Front Right | — |
| 2020 | Cadillac | CT5 | — | — | RWD | Front Right | — |
| 2020 | Chevrolet | Camaro | — | — | — | Front Right | — |
| 2019 | Cadillac | ATS | — | — | RWD | Front Right | — |
| 2019 | Cadillac | CTS | — | — | RWD | Front Right | — |
| 2019 | Chevrolet | Camaro | — | — | — | Front Right | — |
| 2018 | Cadillac | ATS | — | — | RWD | Front Right | — |
| 2018 | Cadillac | CTS | — | — | RWD | Front Right | — |
| 2018 | Chevrolet | Camaro | — | — | — | Front Right | — |
| 2017 | Cadillac | ATS | — | — | RWD | Front Right | — |
| 2017 | Cadillac | CTS | — | — | RWD | Front Right | — |
| 2017 | Chevrolet | Camaro | — | — | — | Front Right | — |
| 2016 | Cadillac | ATS | — | — | RWD | Front Right | — |
| 2016 | Cadillac | CTS | — | — | RWD | Front Right | — |
| 2016 | Chevrolet | Camaro | — | — | — | Front Right | — |
| 2015 | Cadillac | ATS | — | — | RWD | Front Right | — |
| 2015 | Cadillac | CTS | Sedan | — | RWD | Front Right | — |
| 2014 | Cadillac | ATS | — | — | RWD | Front Right | — |
| 2014 | Cadillac | CTS | Sedan | 4 Door | RWD | Front Right | — |
| 2013 | Cadillac | ATS | — | — | RWD | Front Right | — |
