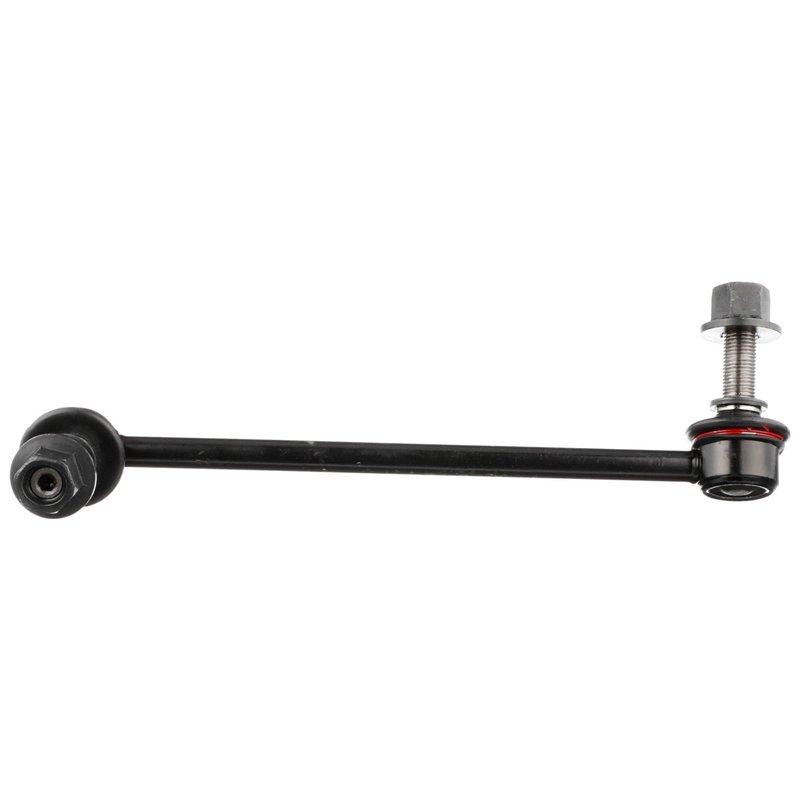

Delphi TC7650 Suspension Stabilizer Bar Link - Front Right

Delphi Suspension Stabilizer Bar Link for Cadillac Vehicles

The Delphi TC7650 suspension stabilizer bar link is engineered for precise fitment on select Cadillac models including ATS, CT4, CT5, and CTS. Designed with durable steel construction and equipped with a dust boot and washers, this front right stabilizer bar link ensures reliable suspension performance and vehicle stability.

• Constructed from high-quality steel for strength and durability
• Length of 225.0 mm with a 28.0 mm width and 69.0 mm height
• Both ends feature male connectors for secure attachment
• Includes dust boot and washers for protection and proper installation
• Compatible with Cadillac ATS, CT4, CT5, and CTS front right suspension
• Locking nuts included for secure fastening
• Bolt thread size M12 x 1.25 with 12.0 mm bolt head diameter

Product Details and Specifications

The Delphi TC7650 suspension stabilizer bar link is a standard replacement part designed to maintain the integrity of your Cadillac's suspension system. Its steel housing and bearing material provide the necessary rigidity and wear resistance required for consistent handling. The part measures 225.0 mm between mounting holes, ensuring exact fitment for the front right position on compatible Cadillac models. While greaseable features are not included, the integrated dust boot helps protect internal components from dirt and debris, extending the service life of the link. Locking nuts and washers are included to facilitate a secure and stable installation.

Common Applications and Problem Resolution

• Reduces suspension noise caused by worn or damaged stabilizer bar links
• Improves vehicle handling and cornering stability
• Eliminates excessive play or looseness in the front suspension
• Prevents uneven tire wear related to suspension issues
• Restores proper alignment and suspension geometry

Installation Notes and Tips

Installation of the Delphi TC7650 stabilizer bar link requires basic suspension knowledge and appropriate tools. Ensure the vehicle is securely lifted and supported before beginning. Remove the old stabilizer bar link carefully, noting the orientation of the male ends. Use the included locking nuts and washers to secure the new link, tightening bolts to manufacturer torque specifications. The dust boot should be inspected for proper seating to prevent contamination. Since this part is not greaseable, no additional lubrication is necessary during installation.

Quality Assurance and Warranty Information

Delphi suspension components are manufactured to meet or exceed OEM standards for fit, form, and function. The TC7650 stabilizer bar link is a standard replacement grade part backed by Delphi's quality control processes. While specific warranty terms may vary, Delphi typically offers coverage against defects in material and workmanship to ensure reliability and customer confidence.
