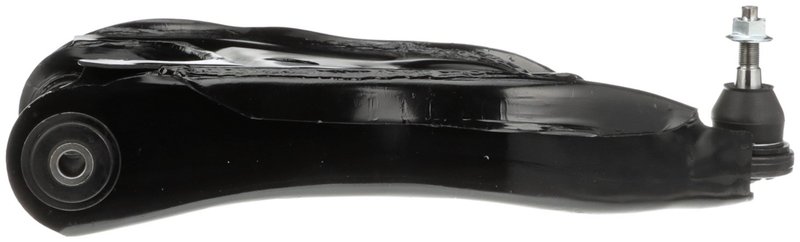

Delphi TC7722 Suspension Control Arm and Ball Joint Assembly - Front Left Lower

Delphi TC7722 Front Left Lower Control Arm

Delphi TC7722 is a front left lower suspension control arm and ball joint assembly built for 2002-2005 Dodge Ram 1500 applications. It combines a stamped steel arm, pre-greased ball joint, and included bushings to support precise front suspension movement and steering response.

For Dodge Ram 1500 owners replacing worn front suspension components, this assembly provides an OE-style service part with the key wear items already integrated. Delphi applies dimensional and material analysis to help match OE fit and function in the aftermarket.

Key Features

• Fits 2002-2005 Dodge Ram 1500, front left lower
• Part number: TC7722
• Stamped steel control arm with painted black finish
• Ball joint included with threaded stud design
• Pre-greased, non-greaseable assembly
• Bushings included with black rubber construction
• Dust boot included with chloroprene rubber material
• Mounting hardware and locking nut included
• Clockwise (right) thread direction
• Premium grade replacement for power steering applications

Detailed Description

Delphi TC7722 is a front left lower control arm assembly for the 2002-2005 Dodge Ram 1500. It is built from stamped steel and finished in black paint, with a pre-installed ball joint, bushings, and dust boot to simplify suspension service. The assembly uses a threaded ball joint stud, two mounting holes, and a non-adjustable design for direct replacement use.

Delphi’s OE-focused engineering is reflected in the part’s material selection and durability testing. The assembly is evaluated for temperature extremes and salt-spray exposure, helping support long-term performance in demanding road conditions. This part cross-references MOOG Chassis Products RK623526 for the same application. Delphi TC7722 is a practical choice when replacing a worn Dodge Ram 1500 front left lower control arm and ball joint assembly.

What It Helps Fix

• Front-end clunking or looseness from a worn control arm assembly
• Uneven tire wear caused by suspension play
• Steering wander or reduced directional stability
• Noise from deteriorated bushings or ball joint wear
• Suspension movement issues at the front left lower position

Installation Notes and Tips

Install Delphi TC7722 at the front left lower position on 2002-2005 Dodge Ram 1500 models only. Verify mounting hole diameter, stud orientation, and thread direction before installation. Because the assembly is pre-greased and non-greaseable, no routine lubrication is required after installation. A professional alignment is recommended after replacing a control arm assembly.

Quality Assurance

Delphi applies OE-based dimensional and material analysis to improve fit consistency between original equipment and aftermarket replacement parts. The assembly is also subjected to temperature and corrosion testing to help confirm durability under real-world suspension conditions.
