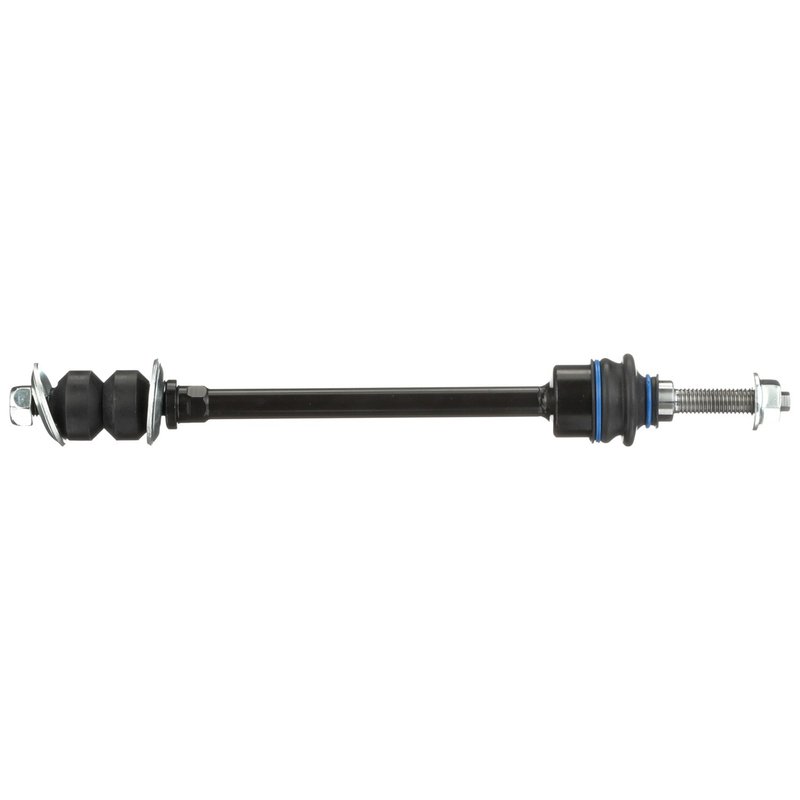

Delphi TC7757 Suspension Stabilizer Bar Link - Front

Front Suspension Stabilizer Bar Link

Delphi TC7757 is a front suspension stabilizer bar link built for OE-style replacement on select Dodge Ram 1500 trucks. It uses a steel housing with a bushing on one end and a ball joint on the other to help restore stable front-end control and consistent sway bar connection.

Fits 2002-2005 Dodge Ram 1500, front. Delphi applies OE dimensional and material analysis to support proper part-to-vehicle compatibility, and this TC7757 link is tested across extreme temperatures and salt-spray exposure for durability in demanding road conditions.

Key Features

• Front suspension stabilizer bar link for select Dodge Ram 1500 applications
• Steel construction with black bushings
• End 1: bushing; End 2: ball joint
• Bushings included with dust boot included
• Locking nuts included; bolts not included
• Standard replacement part for OE-style service
• Non-greaseable design
• Delphi part number TC7757

Detailed Description

Delphi TC7757 is engineered as a front stabilizer bar link for 2002-2005 Dodge Ram 1500 trucks. The design combines a steel body, natural rubber bushing material, and a ball-joint end to help maintain the sway bar connection at the front suspension. Delphi’s OE-focused dimensional and material analysis supports accurate fitment, while the part is validated through temperature extremes below -40 degrees C and above 120 degrees C, plus extended salt-spray exposure.

This part cross-references MOOG Chassis Products K7422 for the same application. If you are replacing a worn front sway bar link on a Dodge Ram 1500, TC7757 provides a direct OE-style service option.

Common Problems This Part May Address

• Front-end clunking or rattling over bumps
• Excessive sway bar movement from a worn link
• Loose or inconsistent steering feel at the front suspension
• Noise caused by deteriorated bushings or ball-joint wear
• Reduced stability from a damaged stabilizer bar connection

Installation Notes and Tips

Verify front-position fitment before installation on your Dodge Ram 1500. Inspect the sway bar, mounting points, and adjacent suspension components for wear before replacing the link. Because bolts are not included, confirm the existing fasteners are serviceable or source the correct hardware separately. Torque all fasteners to the vehicle manufacturer’s specifications after installation.

Quality Assurance

Delphi uses OE-based engineering and extensive material validation for its aftermarket steering and suspension parts. TC7757 is built to standard replacement expectations and tested for temperature and corrosion resistance to support dependable service in front suspension applications.
