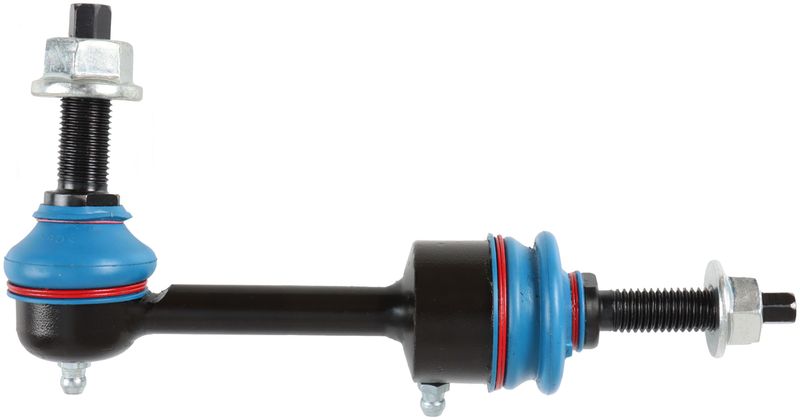

Delphi TC7883PX Suspension Stabilizer Bar Link - Front
| Brand | Delphi TC7883PX |
|---|---|
| Position | Front |
| Material | Steel |
| Length | 203.50 |
| Length | 8.012 |
| Color | Black |
| End 1 Type | Ball joint |
| End 2 Type | Ball joint |
| Pipe Diameter | 0.512 |
| Pipe Diameter | 13.00 |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Width | 1.496 |
| Width | 38.00 |
| Washers Included | No |
| Height | 105.20 |
| Height | 4.142 |
| Nuts Included | Yes |
| Grade Type | Improved design |
| Bolts Included | No |
| Housing Material | Steel |
| Boot Material | Rubber |
| Greaseable | Yes |
| Bar Diameter | 0.512 |
| Bar Diameter | 13.00 |
| Weight | 1.30 |
| Bearing Material | Plastic |
| Wrench Size | 10mm |
| Distance Between Mounting Holes | 137.50 |
| Locking Nuts Included | Yes |
| Hardware Included | Yes |
| Product line | Professional+ |
| Fits | Ram · 25 vehicles |
Serviceable design. Greaseable components support longer part life and easier maintenance.
Steel construction. Built with a steel housing and bar for demanding chassis service.
Improved design grade. Engineered for fleet and working-vehicle suspension demands.
Cross-references Mevotech Original Grade GS258113, Mevotech Supreme MS258113 and Mevotech TTX TXMS258113 for the same application. See all 7.
Overview
Delphi Professional+ suspension stabilizer bar link, part number TC7883PX, is built for fleet and working-vehicle demands. It uses steel construction, greaseable serviceable components, and ball joint ends to support consistent suspension response under load.
Key Features
- Steel housing and bar construction for demanding road conditions
- Ball joint ends for stable link movement
- Greaseable design for serviceable long-term performance
- Dust boot included to help protect internal components
- Improved design grade for suspension service applications
Detailed Description
The Delphi Professional+ line is engineered for chassis applications that see frequent use and harsh conditions. This suspension stabilizer bar link is built to minimize axial deflection under load, helping maintain alignment and handling response while supporting longer suspension life. The black steel body, rubber boot material, and serviceable construction make it a practical replacement for Ram 2500 and Ram 3500 front suspension service. Part number TC7883PX is also cross-referenced to Monroe Shocks & Struts 172286 and 182286 for the same application.
Common Issues Addressed
- Clunking or looseness from a worn stabilizer bar link
- Reduced handling stability from excessive link movement
- Premature wear in suspension components exposed to road debris and weather
- Service downtime caused by non-serviceable chassis parts
Installation Notes
Compatible with front suspension applications on 2014-2025 Ram 2500 and 2013-2025 Ram 3500. Hardware is listed in the product data, and the link uses 10 mm wrench sizing with locking nuts included. Verify fitment, mounting points, and suspension configuration before installation.
Quality Assurance
Delphi Professional+ chassis parts are developed for fleet and working vehicles, with serviceable components that can be regreased to extend part life and reduce downtime.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2025 | Ram | 2500 | Front | Professional+ |
| 2025 | Ram | 3500 | Front | Professional+ |
| 2024 | Ram | 2500 | Front | Professional+ |
| 2024 | Ram | 3500 | Front | Professional+ |
| 2023 | Ram | 2500 | Front | Professional+ |
| 2023 | Ram | 3500 | Front | Professional+ |
| 2022 | Ram | 2500 | Front | Professional+ |
| 2022 | Ram | 3500 | Front | Professional+ |
| 2021 | Ram | 2500 | Front | Professional+ |
| 2021 | Ram | 3500 | Front | Professional+ |
| 2020 | Ram | 2500 | Front | Professional+ |
| 2020 | Ram | 3500 | Front | Professional+ |
| 2019 | Ram | 2500 | Front | Professional+ |
| 2019 | Ram | 3500 | Front | Professional+ |
| 2018 | Ram | 2500 | Front | Professional+ |
| 2018 | Ram | 3500 | Front | Professional+ |
| 2017 | Ram | 2500 | Front | Professional+ |
| 2017 | Ram | 3500 | Front | Professional+ |
| 2016 | Ram | 2500 | Front | Professional+ |
| 2016 | Ram | 3500 | Front | Professional+ |
| 2015 | Ram | 2500 | Front | Professional+ |
| 2015 | Ram | 3500 | Front | Professional+ |
| 2014 | Ram | 2500 | Front | Professional+ |
| 2014 | Ram | 3500 | Front | Professional+ |
| 2013 | Ram | 3500 | Front | Professional+ |
