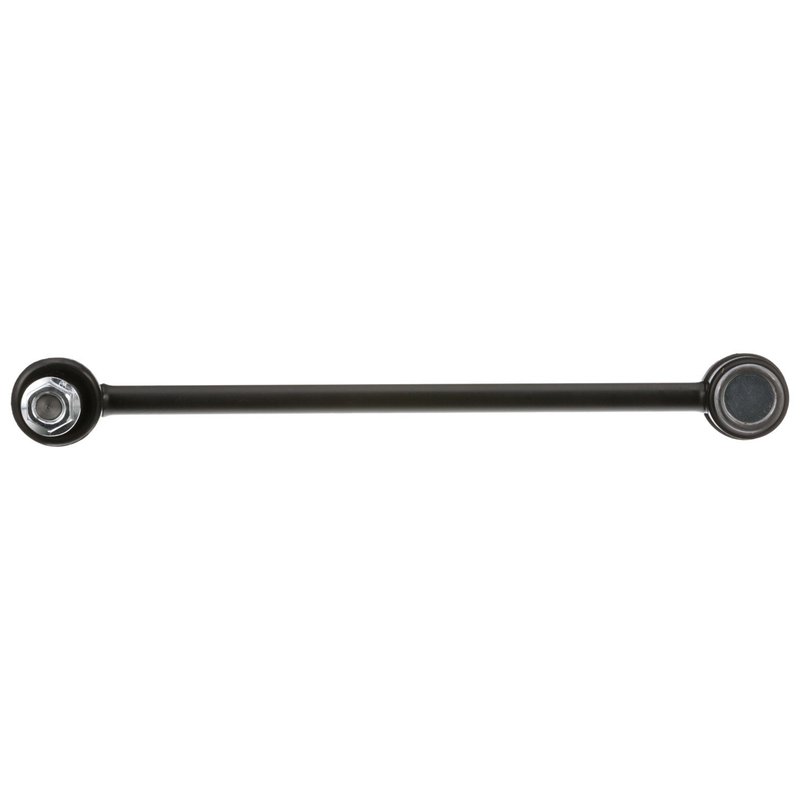

Delphi TC7946 Suspension Stabilizer Bar Link - Front

Delphi Suspension Stabilizer Bar Link for Ram ProMaster City

The Delphi TC7946 suspension stabilizer bar link is engineered to provide reliable front suspension performance for the Ram ProMaster City. Constructed from durable steel with a protective dust boot, this component ensures consistent handling and stability under various driving conditions.

• Made from high-strength steel for durability
• Compatible with front suspension of Ram ProMaster City
• Includes dust boot to protect against contaminants
• Features male ends on both sides for secure fitment
• Locking nuts included for reliable installation
• Standard replacement grade for dependable performance

Durable Construction and Precise Dimensions

The TC7946 stabilizer bar link is crafted from steel with a steel housing, providing robust resistance to wear and corrosion. Its length measures approximately 232 mm (9.13 inches), with a width of 42 mm (1.65 inches) and a height of 122 mm (4.8 inches), ensuring a precise fit for the front suspension system of the Ram ProMaster City. The bearing material is polyoxymethylen (POM), which offers low friction and long-lasting operation. The dust boot included helps protect internal components from dirt and moisture, extending the service life of the part.

Function and Common Applications

This suspension stabilizer bar link is designed to connect the stabilizer bar to the suspension components, reducing body roll and improving vehicle handling. It is commonly used to address issues such as:

• Excessive body sway during cornering
• Clunking or knocking noises from the front suspension
• Uneven tire wear due to suspension instability
• Loose or worn suspension link connections
• Reduced steering responsiveness

Installation Notes and Tips

Installation of the Delphi TC7946 stabilizer bar link requires basic mechanical skills and appropriate tools. The part features male ends on both sides and includes locking nuts to secure the connection. Note that bushings, washers, and bolts are not included, so ensure these components are inspected and replaced if necessary during installation. The recommended wrench size for installation is 18 mm (0.71 inches). Proper torque specifications should be followed to maintain safety and performance.

Quality Assurance and Warranty

Delphi provides this suspension stabilizer bar link as a standard replacement part, meeting OEM specifications for fit and function. The steel construction and quality materials contribute to reliable performance in the front suspension of the Ram ProMaster City. Locking nuts are included to enhance installation security. Warranty details should be confirmed with the point of purchase or Delphi directly, as coverage may vary.
