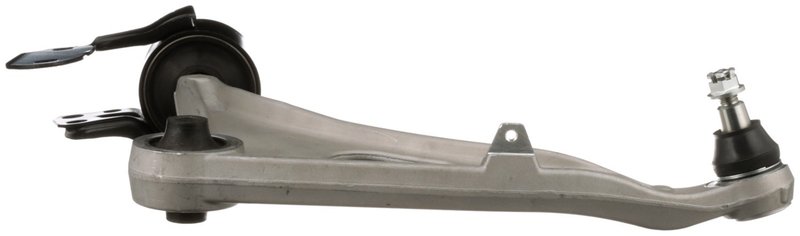

Delphi TC7995 Suspension Control Arm and Ball Joint Assembly - Front Left Lower
| Brand | Delphi TC7995 |
|---|---|
| Position | Front Left Lower |
| Thread Direction | Clockwise (right) |
| Bushing Color | Black |
| Finish | Uncoated |
| Pre-Greased | Yes |
| Bushings Included | Yes |
| Dust Boot Included | Yes |
| Ball Joint Mounting Type | Press in |
| Ball Joint Stud Type | Threaded |
| Ball Joint Included | Yes |
| Control Arm Construction | Casting/forged |
| Control Arm Material | Aluminum |
| Mounting Hardware Included | Yes |
| Grade Type | Premium |
| Mounting Hole Quantity | 3 |
| Boot Material | Chloroprene rubber (cr) |
| Adjustable | No |
| Locking Nut Included | Yes |
| Greaseable | No |
| Control Arm Maximum Width | 16.476 |
| Control Arm Maximum Width | 418.50 |
| Control Arm Color | Gray |
| Ball Joint Stud Length | 3.661 |
| Ball Joint Stud Length | 93.00 |
| Control Arm Maximum Length | 21.496 |
| Control Arm Maximum Length | 546.00 |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Bushing Material | Rubber |
| Dust Boot Material | Chloroprene rubber (cr) |
| Fits | Acura and Honda · 13 vehicles |
OE-style replacement. Built with Delphi OE expertise for accurate aftermarket suspension fit.
Pre-greased assembly. Includes bushings, dust boot, and ball joint for a complete service part.
Aluminum construction. Casting/forged design with an uncoated finish and premium-grade materials.
Cross-references Beck/Arnley 102-8091, Beck/Arnley 102-8093 and Dorman - Premium CB59423PR for the same application. See all 8.
OE-style control arm assembly
Delphi TC7995 is a suspension control arm and ball joint assembly built for direct replacement applications that require OE-level dimensional accuracy. It fits 2014-2020 Acura MDX, front left lower, and 2016-2021 Honda Pilot, front left lower.
Key features
- Aluminum control arm construction with a casting/forged design
- Pre-greased assembly with bushings, dust boot, and ball joint included
- Press-in ball joint with threaded stud and locking nut included
- Uncoated finish with black rubber bushings and chloroprene rubber boot material
- Premium-grade suspension component for power steering applications
Detailed description
Delphi TC7995 combines the control arm, ball joint, and related wear components into one suspension assembly for the front left lower position. The aluminum construction and forged/cast design provide a precise replacement structure, while the pre-greased ball joint and rubber bushings support smooth articulation. Delphi applies OE dimensional and material analysis to help match the original part geometry and fitment requirements for Acura MDX and Honda Pilot applications. This part cross-references Beck/Arnley (e.g., 102-8091, 102-8093) for the same application.
What it is used for
- Restoring suspension geometry when the original control arm is worn or damaged
- Replacing a loose or noisy ball joint assembly
- Addressing bushing wear that can affect steering feel and alignment stability
- Correcting clunks, play, or uneven tire wear linked to front suspension wear
Installation notes and quality
Verify fitment by year, make, model, and front left lower position before installation. The press-in ball joint design and threaded stud require proper suspension service procedures and alignment checks after replacement. Delphi tests parts for temperature extremes and salt-spray exposure, and its OE safety technology is used on vehicles worldwide. Part number TC7995 should be matched carefully to the application before ordering.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2021 | Honda | Pilot | — | — | Front Left Lower | — |
| 2020 | Acura | MDX | 3.5L | V6 | Front Left Lower | — |
| 2020 | Honda | Pilot | — | — | Front Left Lower | — |
| 2019 | Acura | MDX | 3.5L | V6 | Front Left Lower | — |
| 2019 | Honda | Pilot | — | — | Front Left Lower | — |
| 2018 | Acura | MDX | 3.5L | V6 | Front Left Lower | — |
| 2018 | Honda | Pilot | — | — | Front Left Lower | — |
| 2017 | Acura | MDX | 3.5L | V6 | Front Left Lower | — |
| 2017 | Honda | Pilot | — | — | Front Left Lower | — |
| 2016 | Acura | MDX | — | — | Front Left Lower | — |
| 2016 | Honda | Pilot | — | — | Front Left Lower | — |
| 2015 | Acura | MDX | — | — | Front Left Lower | — |
| 2014 | Acura | MDX | — | — | Front Left Lower | — |
| No rows match your filter. | ||||||
