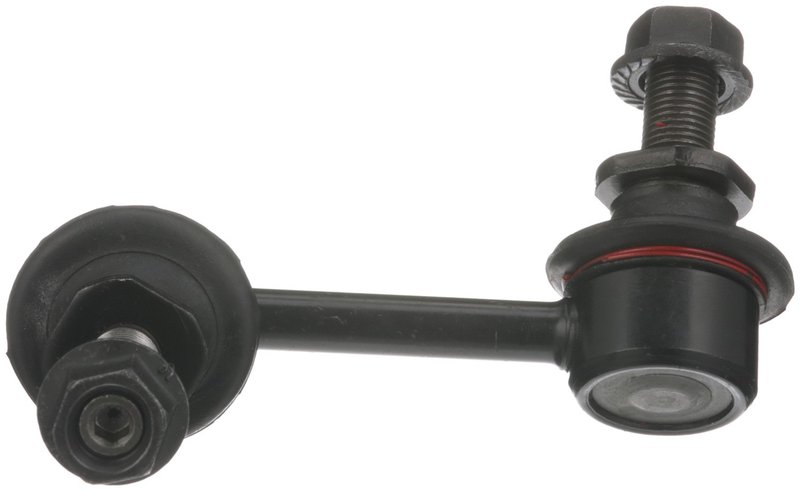

Delphi TC8049 Suspension Stabilizer Bar Link - Front Left

Front Left Stabilizer Bar Link for Lexus

The Delphi TC8049 is a front left suspension stabilizer bar link built for OE-style replacement on select Lexus applications. It is engineered with Delphi’s aftermarket steering and suspension expertise, with dimensional and material analysis used to support proper part-to-vehicle matching.

Compatible with Lexus IS300, IS350, RC300, RC350, GS350, GS300, GS450h, GS200t, IS200t, and RC200t front left positions, this Delphi stabilizer link is a direct-fit service part for common front-end suspension repairs. The TC8049 part number is also a useful reference when cross-checking replacement options.

Key Features

• OE-style suspension stabilizer bar link for the front left side
• Length: 85.0 mm
• Distance between mounting holes: 85.0 mm
• Bushing outside diameter: 46.0 mm
• Dust boot included for added joint protection
• Standard replacement grade
• Non-greaseable design

Detailed Description

Delphi TC8049 is a front left stabilizer bar link designed for Lexus suspension systems that require precise linkage between the sway bar and suspension assembly. Delphi subjects its OE-based components to extreme temperature testing below -40 degrees C and above 120 degrees C, along with 720 hours of salt spray exposure, to evaluate durability in demanding conditions. The TC8049 also benefits from dimensional and material analysis to help maintain OE-level compatibility with the original part.

This part cross-references Monroe Shocks & Struts 172286 and Mevotech Supreme MS868123 for the same application. Use Delphi TC8049 when servicing Lexus GS350 front left, Lexus RC350 front left, or Lexus IS300 front left suspension wear concerns.

What It Helps Fix

• Front-end clunking or rattling from a worn stabilizer link
• Excessive sway bar play at the front left corner
• Uneven suspension response over bumps and turns
• Loose or degraded link bushings and joints
• Noise caused by a damaged dust boot or contaminated joint area

Installation Notes and Tips

Verify the front left position and compare the 85.0 mm mounting-hole distance and 46.0 mm bushing outside diameter before installation. Inspect the sway bar, control arm mounting points, and adjacent hardware for wear, since a new link may not correct noise caused by other suspension components. Confirm vehicle-specific fitment for 2013-2022 Lexus applications, including 2017 Lexus IS200t and IS350 built from 10/2016.

Quality Assurance

Delphi applies OE-focused engineering and validation to its aftermarket steering and suspension parts. TC8049 is tested for temperature extremes and salt-spray exposure to support corrosion resistance and long-term service in everyday driving conditions.
