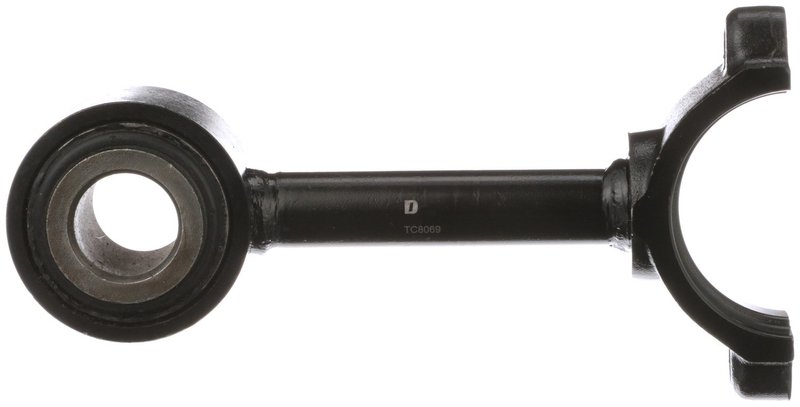

Delphi TC8069 Suspension Stabilizer Bar Link Kit - Front

Delphi TC8069 Front Stabilizer Bar Link Kit

Delphi TC8069 is a front suspension stabilizer bar link kit built for OE-style replacement on the 2004-2009 Lexus GX470. It is engineered with Delphi’s aftermarket steering and suspension expertise, with material and dimensional analysis used to support proper fit and consistent performance.

Key Features

• Front suspension stabilizer bar link kit for the Lexus GX470
• Standard replacement grade for OE-style service
• Neoprene rubber bushings with black bushing color
• Bushings included; pre-greased: no
• Length: 8.15 in. (207.0 mm)
• Sleeve diameter: 2.13 in. (54.0 mm)
• Sleeve length: 1.57 in. (40.0 mm)
• Part number: TC8069

Detailed Description

Delphi TC8069 is a front stabilizer bar link kit for the 2004-2009 Lexus GX470, built as a standard replacement suspension component. The assembly uses neoprene rubber bushings and includes bushings, with no grease fittings, dust boot, washers, bolts, or locking nuts included. Delphi validates parts through temperature and corrosion exposure testing, including extreme hot and cold conditions and extended salt spray exposure, to support durability in demanding road environments. This part cross-references Mevotech Supreme MS86886 for the same application.

Common Symptoms This Part May Address

• Front-end clunking or rattling over bumps
• Excessive sway bar movement at the front suspension
• Loose or worn stabilizer link bushings
• Noise caused by deteriorated suspension linkage components
• Uneven steering feel related to worn front stabilizer hardware

Installation Notes and Tips

Fits 2004-2009 Lexus GX470, front. Verify bushing and sleeve dimensions against the removed part before installation. Because this link kit is not pre-greased and does not include grease fittings, it is installed as a sealed-style replacement component. Inspect adjacent sway bar and suspension hardware for wear before completing the repair.

Quality Assurance

Delphi applies OE-focused dimensional and material analysis to support aftermarket fitment and consistency. The part is also subjected to temperature and salt-spray testing to evaluate performance under harsh operating conditions.
