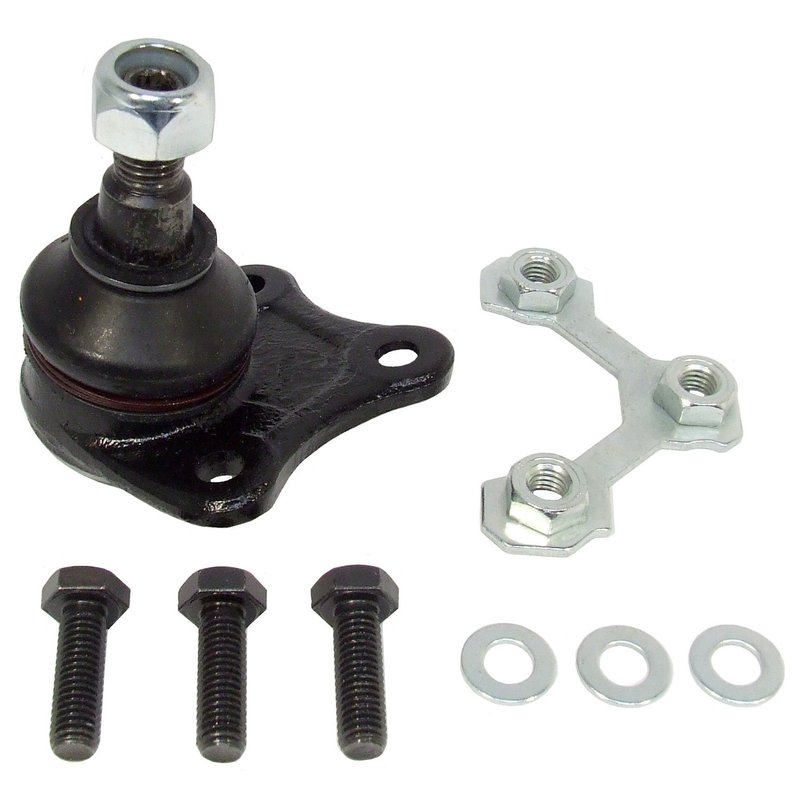

Delphi TC824 Suspension Ball Joint - Front Left or Front Left Lower

Delphi Suspension Ball Joint for Volkswagen Vehicles

The Delphi TC824 suspension ball joint is engineered to provide reliable steering and suspension performance for select Volkswagen models. Designed with durable steel construction and a protective dust boot, this ball joint ensures consistent operation and longevity in your Beetle, Golf, Golf City, GTI, or Jetta.

• Constructed from high-strength steel for durability
• Compatible with Volkswagen Beetle, Golf, Golf City, GTI, and Jetta models
• Includes mounting hardware and washers for straightforward installation
• Equipped with a dust boot to protect against contaminants
• Standard suspension grade type for reliable performance
• Black finish for corrosion resistance

Technical Specifications and Features

The Delphi TC824 suspension ball joint features a maximum outside diameter of 80.0 mm (3.15 inches) and a length of 80 mm (3.15 inches), providing a precise fit for the specified Volkswagen models. The stud thread diameter measures 12.0 mm (0.472 inches) with a stud thread length of 15.5 mm (0.61 inches). The ball joint assembly comes with mounting hardware, including nuts and washers, but does not include a castle nut, cotter pin, or grease fitting. The dust boot is included to help prevent dirt and moisture from compromising the joint's integrity. This non-greasable, non-adjustable ball joint is designed for standard suspension applications, ensuring consistent handling and safety.

Compatible Volkswagen Models and Applications

This Delphi suspension ball joint (part number TC824) is compatible with a range of Volkswagen vehicles, including the Beetle, Golf, Golf City, GTI, and Jetta models. It is specifically designed to meet the suspension requirements of these vehicles, making it a suitable replacement part for maintaining proper steering and suspension function.

Common Issues Addressed by the Delphi TC824 Ball Joint

• Excessive play or looseness in the suspension system
• Uneven tire wear caused by worn ball joints
• Clunking or knocking noises during steering or over bumps
• Reduced steering responsiveness or alignment problems
• Protection against dirt and moisture intrusion with included dust boot

Installation Notes and Tips

Installation of the Delphi TC824 ball joint requires removal of the old ball joint and proper torqueing of the included mounting hardware. The package includes nuts and washers but does not include a castle nut or cotter pin, so verify if your vehicle requires these components separately. Since this ball joint is non-greasable, no additional lubrication is necessary during installation. Use a 19 mm wrench for mounting hardware and ensure the mounting bolts are tightened to manufacturer specifications. Always inspect the dust boot for damage during installation to maintain joint protection.

Quality Assurance and Warranty

Delphi suspension components are manufactured to meet or exceed OEM standards for fit, form, and function. The TC824 ball joint undergoes rigorous quality control to ensure durability and performance in Volkswagen suspension systems. While specific warranty details may vary, Delphi typically offers a limited warranty covering defects in materials and workmanship. Consult product documentation or your parts provider for exact warranty terms.
