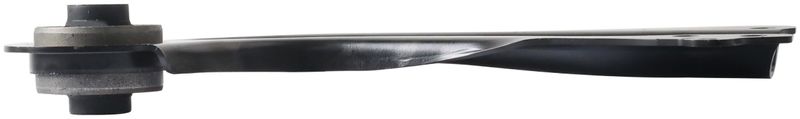

Delphi TC8301 Suspension Trailing Arm - Rear Right

Delphi Rear Right Trailing Arm

Restore rear suspension geometry with this Delphi suspension trailing arm, part number TC8301. Built from stamped steel with a painted black finish, it includes a rubber bushing and bolt-on mounting for a standard replacement on select Toyota applications.

Key Features

• Delphi TC8301 suspension trailing arm for the rear right position
• Stamped steel construction with painted black finish
• Rubber bushing included; black bushing color
• Bolt-on mounting with a 14.5 mm mounting hole diameter
• Standard replacement grade for OE-style service
• Length: 14 in. (355.7 mm)

Detailed Description

Delphi applies OE-focused dimensional and material analysis to this trailing arm to support proper fit and suspension alignment on the rear right side. The steel, stamped construction is paired with a rubber bushing for controlled movement, while the painted finish helps protect the part in everyday service. Delphi tests components for temperature extremes and extended salt-spray exposure to evaluate durability under demanding conditions. This part number TC8301 is a direct replacement-style option for Toyota Corolla, Camry, Corolla Cross, Avalon, C-HR, Prius, Prius AWD-e, and Prius Prime rear right applications.

This part cross-references MOOG Chassis Products RK643578 for the same application.

What It Helps Fix

• Rear suspension looseness or instability on the right side
• Excessive play from a worn trailing arm bushing
• Improper rear wheel tracking caused by suspension wear
• Noisy rear suspension movement over bumps and road joints
• Corrosion-related replacement needs on the rear suspension arm

Installation Notes and Tips

Fits 2019-2025 Toyota Corolla, rear right; 2018-2024 Toyota Camry, rear right; 2022-2024 Toyota Corolla Cross, rear right; 2018-2022 Toyota Avalon, rear right; 2018-2022 Toyota C-HR, rear right; 2016-2022 Toyota Prius, rear right; 2019-2022 Toyota Prius AWD-e, rear right; and 2017-2022 Toyota Prius Prime, rear right. Verify rear right placement, bolt-on mounting points, and mounting hole diameter before installation. Mounting hardware is not included.

Quality Assurance

Delphi uses OE engineering practices, dimensional checks, and material analysis to support consistent aftermarket fitment. The TC8301 trailing arm is evaluated for temperature extremes and salt-spray exposure as part of Delphi’s durability testing process.
