Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

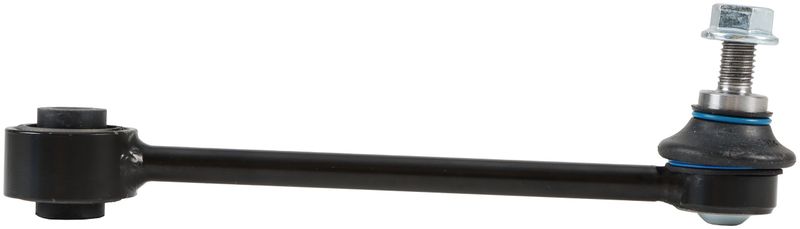

Delphi TC8335 Suspension Stabilizer Bar Link - Rear
| Brand | Delphi TC8335 |
|---|---|
| Position | Rear |
| Bushing Outside Diameter | 1.420 |
| Bushing Outside Diameter | 36.32 |
| Bushing Color | Black |
| Length | 214.47 |
| Length | 8.440 |
| End 1 Type | Ball joint |
| End 2 Type | Bushing |
| Bushings Included | Yes |
| Dust Boot Included | Yes |
| Width | 1.43 |
| Width | 36.32 |
| Washers Included | No |
| Height | 2.320 |
| Height | 58.85 |
| Grade Type | Standard replacement |
| Bolts Included | No |
| Housing Material | Steel |
| Boot Material | Rubber |
| Greaseable | No |
| Weight | 0.84 |
| Bearing Material | Polyoxymethylene (pom) |
| Bushing Material | Rubber |
| Wrench Size | 5mm |
| Bolt Length | 0.910 |
| Bolt Length | 23.30 |
| Distance Between Mounting Holes | 180.00 |
| Locking Nuts Included | Yes |
| Hardware Included | Yes |
| Bushing Inside Diameter | 0.400 |
| Bushing Inside Diameter | 10.20 |
| Fits | Chevrolet and GMC · 5 vehicles |
OE expertise. Delphi brings original-equipment know-how to its aftermarket steering parts.
Extreme-tested. Built to handle harsh temperatures and 720 hours of salt spray.
Steel construction. A durable rear stabilizer bar link with rubber bushings and dust boot.
Cross-references Mevotech Supreme MS508216, MOOG Chassis Products K750939 and 84379202 for the same application. See all 5.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Rear Stabilizer Bar Link for Equinox and Terrain
Delphi TC8335 is a rear suspension stabilizer bar link built for OE-style replacement on select Chevrolet Equinox and GMC Terrain applications. It combines a ball joint end with a bushing end to help restore rear suspension connection and consistent sway bar response.
- Rear suspension stabilizer bar link
- End 1: ball joint; End 2: bushing
- Black rubber bushing with dust boot included
- Steel housing with POM bearing material
- Standard replacement grade
- Hardware and locking nuts included
- Non-greaseable design
- Part number: TC8335
OE-Style Construction
Delphi applies OE-focused dimensional and material analysis to its aftermarket steering and suspension portfolio, and TC8335 follows that approach with a steel housing, rubber boot material, and rubber bushings. The link is engineered for rear placement and measures 8.440 inches in length, with a 180.00 mm distance between mounting holes and a 5 mm wrench size. This part cross-references MOOG Chassis Products K750939 for the same application.
Vehicle Fitment
- Fits 2018 Chevrolet Equinox, rear
- Fits 2020 Chevrolet Equinox, rear
- Fits 2018-2020 GMC Terrain, rear
Common Repair Symptoms
- Rear suspension clunking or rattling over bumps
- Excessive sway bar movement at the rear of the vehicle
- Loose or worn stabilizer link joints
- Uneven rear-end handling response during cornering
- Noise caused by deteriorated bushings or dust boot wear
Installation Notes
Confirm rear position and verify mounting-hole spacing before installation. Inspect the sway bar, adjacent bushings, and mounting points for wear or damage, and replace related hardware only when required by the application. Use the correct 5 mm wrench size during service and torque fasteners to the vehicle manufacturer’s specification.
Quality Assurance
Delphi subjects its OE-based suspension components to temperature extremes below -40 degrees C and above 120 degrees C, along with extended salt-spray exposure testing. TC8335 is built to support OE-level dimensional fit and material compatibility for rear suspension service on Chevrolet Equinox and GMC Terrain models.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2020 | Chevrolet | Equinox | Rear | — |
| 2020 | GMC | Terrain | Rear | — |
| 2019 | GMC | Terrain | Rear | — |
| 2018 | Chevrolet | Equinox | Rear | — |
| 2018 | GMC | Terrain | Rear | — |
| No rows match your filter. | ||||
