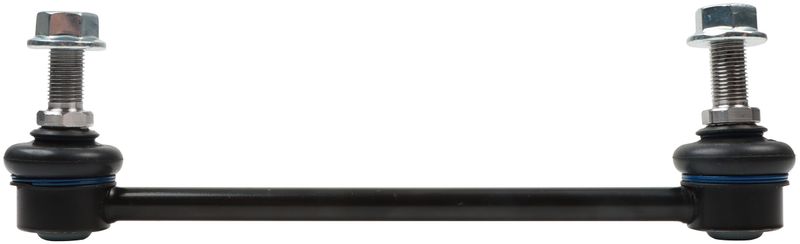

Delphi TC8464 Suspension Stabilizer Bar Link - Rear

Rear Stabilizer Bar Link for Nissan Titan

Restore rear suspension control with the Delphi TC8464 stabilizer bar link. This OE-style replacement is built for the rear of select Nissan Titan and Titan XD applications, with ball joint ends, a steel housing, and a rubber dust boot for dependable service.

• Rear suspension stabilizer bar link
• End 1 and End 2: ball joint
• Steel housing with rubber boot
• Dust boot included; bushings not included
• Standard replacement grade
• Hardware and locking nuts included
• Non-greaseable design
• Wrench size: 17 mm

OE-Style Construction and Fit

Delphi applies OE engineering to its aftermarket steering and suspension portfolio, using dimensional and material analysis to support proper fit and function. The TC8464 is tested for extreme temperature exposure from below -40 degrees C to over 120 degrees C and is subjected to 720 hours of salt spray testing. This part cross-references MOOG Chassis Products K750932 for the same application. Delphi TC8464 is a direct rear stabilizer bar link replacement for Nissan Titan and Nissan Titan XD models listed below.

• Fits 2022 Nissan TITAN, Rear
• Fits 2017-2020 Nissan TITAN, Rear
• Fits 2022 Nissan TITAN XD, Rear
• Fits 2016-2019 Nissan TITAN XD, Rear

What This Part Helps Address

• Rear suspension clunking or rattling from worn link joints
• Excess body roll caused by a loose stabilizer bar connection
• Uneven rear suspension response over bumps and turns
• Noise from deteriorated ball joint ends or damaged dust boots
• Fitment issues from an incorrect rear sway bar link replacement

Installation Notes and Tips

Confirm rear position before installation and compare the original link length and mounting-hole spacing to the replacement part. The TC8464 measures 253.20 mm (9.969 in) in length, with a 215.00 mm distance between mounting holes, and uses 17 mm wrench flats. Replace worn hardware as needed and torque fasteners to the vehicle manufacturer’s specification.

Quality Assurance

Delphi uses OE-based dimensional and material checks to support compatibility between original and aftermarket parts. The TC8464 is built with a steel housing, POM bearing material, and rubber boot material, and it is validated through temperature and corrosion testing for demanding suspension service.
