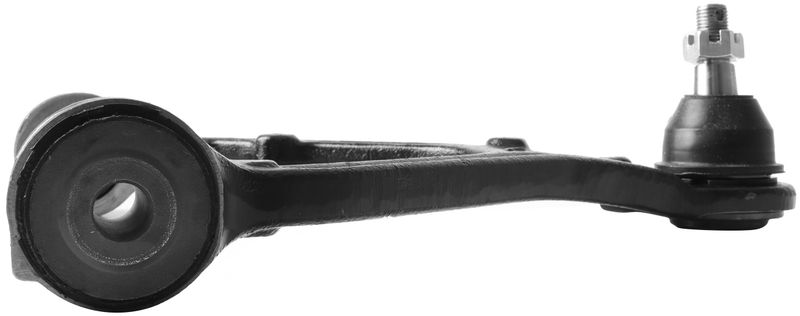

Delphi TC8471 Suspension Control Arm and Ball Joint Assembly - Front Left Upper

OE-Style Front Left Upper Control Arm

Delphi TC8471 is a front left upper suspension control arm and ball joint assembly for select Honda S2000 models. Built as a standard replacement part, it combines OE-focused dimensional accuracy with materials and testing practices aimed at consistent steering and suspension performance.

Key Features

• Fits 2000-2009 Honda S2000, front left upper
• Part number TC8471 for easy lookup and ordering
• Cast iron control arm construction with a painted finish
• Ball joint included with press-in mounting type and threaded stud
• Pre-greased design with no grease fitting required
• Rubber bushings and chloroprene rubber dust boot included
• Mounting hardware included
• Clockwise (right) thread direction
• Black control arm, bushings, and boot components

Detailed Description

Delphi TC8471 is engineered for the front left upper position on the Honda S2000, covering model years 2000 through 2009. Delphi applies OE-level dimensional and material analysis to help ensure proper fit between the replacement part and the original suspension geometry. The assembly uses cast iron construction, rubber bushings, and a chloroprene rubber dust boot to support durable service in everyday driving conditions. This part cross-references Dorman OE Solutions 522-521 for the same application.

Delphi tests steering and suspension components under extreme temperature and corrosion conditions, including sub-zero and high-heat exposure as well as extended salt spray testing. That validation approach supports consistent performance for drivers replacing a worn front left upper control arm on a Honda S2000. If you are searching for Delphi TC8471, Honda S2000 front left upper control arm, or an OE-style suspension control arm and ball joint assembly, this part matches that application.

What It Helps Address

• Clunking or looseness from a worn upper control arm assembly
• Uneven tire wear caused by suspension wear
• Steering wander or reduced front-end stability
• Ball joint play in the front left upper suspension position
• Noise or vibration from deteriorated bushings or boot damage

Installation Notes and Tips

Install TC8471 in the front left upper position only on confirmed Honda S2000 applications. Verify thread direction, mounting hole dimensions, and bushing spacing before installation. Because the ball joint is press-in and the assembly is pre-greased, follow proper suspension service procedures and torque specifications during replacement. A professional alignment is recommended after installation to restore correct suspension geometry.

Quality Assurance

Delphi uses OE-focused engineering and extensive testing for steering and suspension parts, including temperature cycling and salt spray exposure, to support fit and durability. The brand’s aftermarket portfolio is built from OE expertise and dimensional analysis to help maintain compatibility with the original vehicle design.
