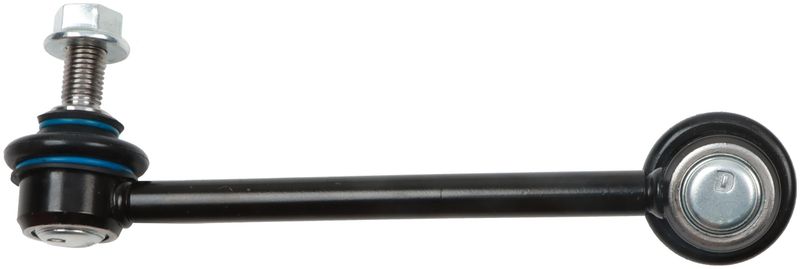

Delphi TC8474 Suspension Stabilizer Bar Link - Front Right or Rear Right

Delphi TC8474 Stabilizer Bar Link

Delphi TC8474 is a suspension stabilizer bar link built for OE-style replacement performance. It is engineered with ball joint ends, a steel housing, and a rubber dust boot to support consistent front or rear right suspension service where listed for the vehicle application.

Compatible With 2014-2020 Acura RLX, rear right, and 2017-2018 Acura NSX, front right. This Delphi TC8474 stabilizer link is a direct-fit style replacement for the specified positions and applications.

• Part number: TC8474
• Suspension stabilizer bar link for front right or rear right applications, depending on vehicle fitment
• End 1 type: ball joint
• End 2 type: ball joint
• Steel housing with rubber dust boot
• Standard replacement grade
• Dust boot included
• Locking nuts and hardware included
• Non-greaseable design
• Length: 182.50 mm (7.185 in)
• Distance between mounting holes: 147.50 mm

Detailed Product Overview

Delphi applies OE-focused dimensional and material analysis to this stabilizer bar link to help maintain proper suspension geometry and sway bar connection at the specified corner of the vehicle. The TC8474 uses a steel housing, POM bearing material, and a rubber boot to support durable operation in demanding temperature and corrosion conditions. Delphi subjects its OE-level components to extreme temperature exposure and extended salt-spray testing, reflecting the brand’s emphasis on aftermarket parts that align closely with original equipment requirements. This part cross-references Beck/Arnley 101-7878 and Mevotech Supreme MS608143 for the same application.

What This Part Helps Address

• Front or rear suspension clunking from a worn stabilizer link
• Excessive sway bar play at the right-side mounting point
• Loose or inconsistent steering feel caused by link wear
• Noise over bumps from deteriorated ball joint ends
• Boot damage that can expose the joint to contamination

Installation Notes and Tips

Verify the exact position before installation, since this part is listed for rear right on the Acura RLX and front right on the Acura NSX. Compare the original link length, mounting-hole spacing, and end style before replacement. Always confirm vehicle application by year, make, model, and position in the fitment data.

Quality Assurance

Delphi builds this stabilizer bar link using OE-oriented engineering and validation methods, including dimensional and material analysis plus environmental testing for temperature and corrosion resistance. The result is a standard replacement suspension component intended to match the specified application requirements for Acura RLX and Acura NSX fitment.
