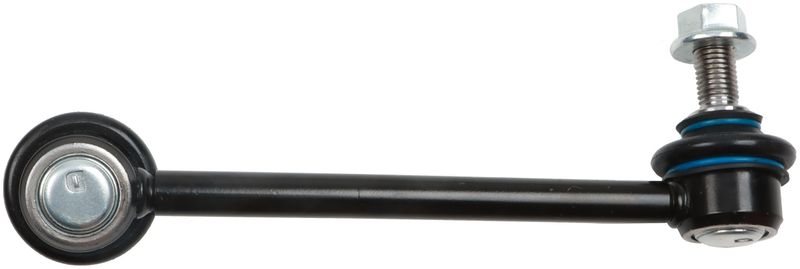

Delphi TC8475 Suspension Stabilizer Bar Link - Front Left or Rear Left

OE-Style Stabilizer Bar Link for Acura

Delphi TC8475 is a front or rear stabilizer bar link built for OE-style suspension service on select Acura applications. It uses ball joint ends, a steel housing, and a rubber dust boot to support consistent sway bar connection and steering response.

Compatible with 2014-2020 Acura RLX, rear left, and 2017-2018 Acura NSX, front left. Delphi applies OE-level dimensional and material analysis to help ensure proper fit and dependable replacement performance.

Key Features

• Part number: TC8475
• Suspension stabilizer bar link for front left and rear left positions
• Ball joint ends on both sides for OE-style articulation
• Steel housing with rubber boot material
• Dust boot included
• Standard replacement grade
• Locking nuts and hardware included
• Non-greaseable design
• Weight: 0.55 lb

Detailed Description

Delphi TC8475 is engineered as a suspension stabilizer bar link for vehicles that require precise sway bar connection at the front left or rear left position. The link measures 182.50 mm (7.185 in) in length and 147.50 mm between mounting holes, with a 54.3 mm width and 63.00 mm height. Its ball joint ends, POM bearing material, and steel housing are selected for standard replacement service where OE-style dimensions matter. This part cross-references Beck/Arnley 101-7877 for the same application.

Delphi’s OE-focused testing includes exposure to extreme temperatures and extended salt spray testing, along with dimensional and material analysis to support fitment consistency. For Acura RLX and Acura NSX suspension repair, TC8475 provides a direct replacement option that matches the listed position requirements.

Common Problems This Part Can Address

• Clunking or rattling from a worn stabilizer bar link
• Excessive sway bar play at the front left or rear left suspension
• Loose or damaged ball joint connection at the link ends
• Boot wear that can expose internal joint components
• Uneven suspension response caused by a failing link assembly

Installation Notes and Tips

Verify the exact position before ordering, since TC8475 is listed for front left on the 2017-2018 Acura NSX and rear left on the 2014-2020 Acura RLX. Confirm mounting-hole spacing, overall length, and end type against the removed part before installation. Use the included locking nuts and hardware as specified for the application, and torque fasteners to the vehicle manufacturer’s service information.

Quality Assurance

Delphi applies OE safety technology and aftermarket steering expertise to this stabilizer bar link. The part is tested for temperature extremes and salt spray exposure, and its dimensions and materials are analyzed for OE-to-aftermarket compatibility.
