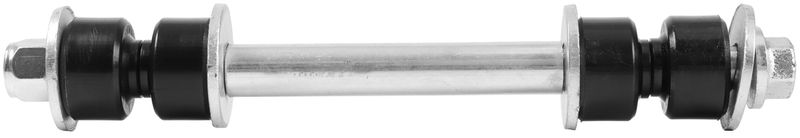

Delphi TC8550 Suspension Stabilizer Bar Link Kit - Front

Front Stabilizer Bar Link Kit for Toyota

Delphi TC8550 is a front suspension stabilizer bar link kit built for OE-style replacement on select Toyota applications. It is engineered with rubber bushings, included sleeves, bolts, washers, and locking nuts to restore proper sway bar connection and front-end control.

Key Features

• Front position stabilizer bar link kit
• Standard replacement grade for OE-style service
• Rubber bushings with 4 bushing pieces included
• Black bushing color
• Bolts, sleeves, washers, and locking nuts included
• Stud type: bolt
• Pre-greased: No
• Greaseable: No
• Length: 190 mm (7.480 in)
• Sleeve diameter: 31.00 mm (1.220 in)

Detailed Description

Delphi TC8550 is a front suspension stabilizer bar link kit for Toyota T100, Toyota 4Runner, and Toyota Pickup models. It is built to match OE dimensions and material requirements, helping maintain proper sway bar geometry and front suspension response. Delphi applies dimensional and material analysis to support fitment consistency between OE and aftermarket replacement parts, and the component is tested for temperature extremes and salt-spray exposure to reflect real-world undercar conditions. This part cross-references Dorman - Premium SK90445PR for the same application.

What This Part Helps Address

• Front suspension clunking from worn stabilizer link bushings
• Excessive sway bar movement at the front suspension
• Loose or degraded link hardware on Toyota front suspension systems
• Uneven steering feel caused by worn stabilizer bar connection points
• Noise over bumps from deteriorated rubber bushings

Installation Notes and Tips

Fits 1993-1998 Toyota T100, front; fits 1990-1995 Toyota 4Runner, front; fits 1989-1995 Toyota Pickup, front. Verify the front suspension layout and compare the original link length, sleeve diameter, and bolt style before installation. Replace worn hardware and inspect adjacent sway bar bushings and mounting points for wear while servicing the link kit. Delphi TC8550 is also referenced by part number TC8550 for catalog and service lookup.

Quality Assurance

Delphi uses OE-focused engineering and validation methods for its steering and suspension portfolio. This stabilizer bar link kit is evaluated for dimensional accuracy, material compatibility, temperature resistance from below -40 degrees C to above 120 degrees C, and corrosion exposure through extended salt-spray testing.
