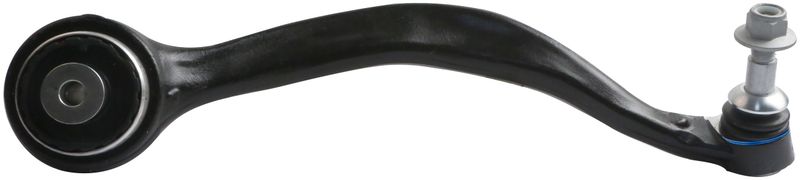

Delphi TC9015 Suspension Control Arm and Ball Joint Assembly - Front Right Lower Forward
| Brand | Delphi TC9015 |
|---|---|
| Position | Front Right Lower Forward |
| Length | 20 |
| Length | 508 |
| Pre-Greased | Yes |
| Bushings Included | Yes |
| Control Arm Construction | Casting/forged |
| Control Arm Material | Steel |
| Mounting Hardware Included | No |
| Grade Type | Standard replacement |
| Adjustable | No |
| Greaseable | No |
| Fits | BMW · 17 vehicles |
OE-focused design. Built with Delphi dimensional and material analysis for consistent replacement fit.
Steel construction. Casting/forged control arm design with pre-greased bushings included.
Standard replacement. Non-adjustable, non-greaseable suspension control arm and ball joint assembly.
Cross-references Dorman - OE Solutions 526-296, Mevotech Supreme CMS101579 and MOOG Chassis Products RK623975 for the same application. See all 5.
Overview
Delphi TC9015 is a standard replacement suspension control arm and ball joint assembly built for the front right lower forward position. It combines a steel, casting/forged construction with pre-greased bushings for a direct service replacement on select BMW applications.
Key Features
- Standard replacement control arm and ball joint assembly
- Steel construction with casting/forged design
- Pre-greased with bushings included
- Non-adjustable and non-greaseable design
- Delphi OE-focused engineering and material analysis
Detailed Description
Delphi TC9015 is engineered for the front right lower forward suspension position and is listed for 2019-2024 BMW X5, 2020-2024 BMW X6, and 2019-2024 BMW X7. This part number, TC9015, is built as a standard replacement using steel construction and a casting/forged control arm design to match the dimensional and material requirements of the original application. Delphi applies OE-oriented testing and analysis to support fit and performance consistency across the listed BMW X5, BMW X6, and BMW X7 applications.
This part cross-references MOOG Chassis Products (e.g., RK623975) for the same application.
What It Is Used For
- Replacing a worn or damaged suspension control arm and ball joint assembly
- Restoring proper front suspension geometry in the listed BMW applications
- Addressing looseness, clunking, or play from a worn control arm assembly
- Replacing a service part with pre-greased bushings already installed
Installation Notes and Tips
Verify the front right lower forward position before installation. Confirm the vehicle application and compare the original part number, including TC9015, against the removed component to ensure correct fitment. Because mounting hardware is not included, reuse or source the required hardware separately if needed.
Quality Assurance
Delphi subjects this part to temperature extremes below -40 degrees C and above 120 degrees C, along with 720 hours of salt spray testing. OE dimensional and material analysis is used to improve compatibility between the original and replacement part.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2024 | BMW | X5 | xDrive50e | Front Right Lower Forward | — |
| 2024 | BMW | X6 | xDrive40i | Front Right Lower Forward | — |
| 2024 | BMW | X7 | xDrive40i | Front Right Lower Forward | — |
| 2023 | BMW | X5 | xDrive45e | Front Right Lower Forward | — |
| 2023 | BMW | X6 | xDrive40i | Front Right Lower Forward | — |
| 2023 | BMW | X7 | xDrive40i | Front Right Lower Forward | — |
| 2022 | BMW | X5 | xDrive45e | Front Right Lower Forward | — |
| 2022 | BMW | X6 | xDrive40i | Front Right Lower Forward | — |
| 2022 | BMW | X7 | xDrive40i | Front Right Lower Forward | — |
| 2021 | BMW | X5 | xDrive45e | Front Right Lower Forward | — |
| 2021 | BMW | X6 | xDrive40i | Front Right Lower Forward | — |
| 2021 | BMW | X7 | xDrive40i | Front Right Lower Forward | — |
| 2020 | BMW | X5 | xDrive50i | Front Right Lower Forward | — |
| 2020 | BMW | X6 | xDrive40i | Front Right Lower Forward | — |
| 2020 | BMW | X7 | xDrive50i | Front Right Lower Forward | — |
| 2019 | BMW | X5 | xDrive50i | Front Right Lower Forward | — |
| 2019 | BMW | X7 | xDrive50i | Front Right Lower Forward | — |
