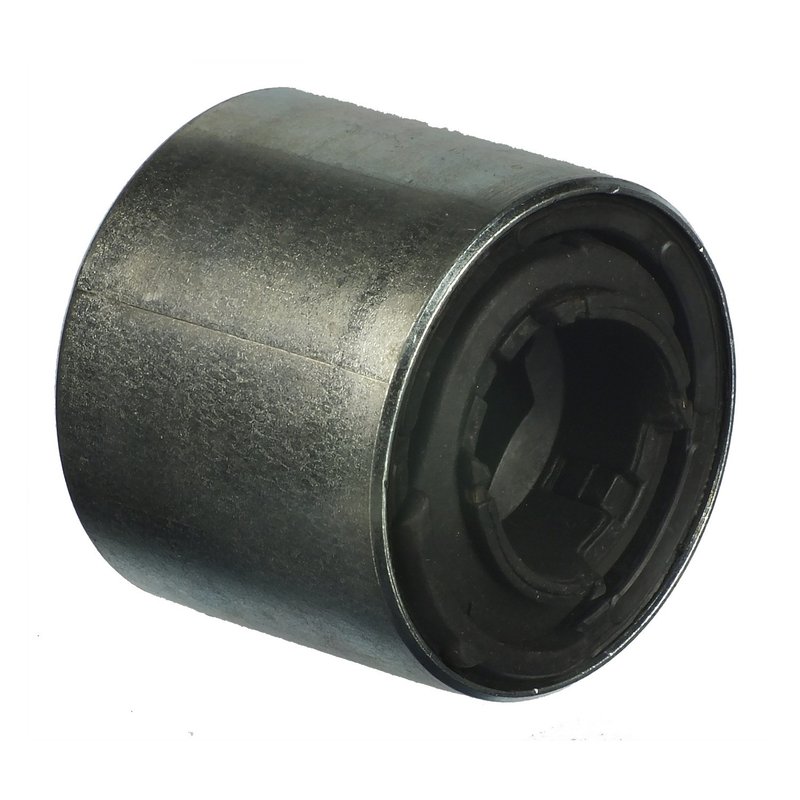

Delphi TD1047W Suspension Control Arm Bushing - Front or Front Lower

Delphi TD1047W Front Lower Control Arm Bushing

Delphi TD1047W is a standard replacement suspension control arm bushing built with a rubber-steel construction for front suspension service. It is engineered for BMW applications that use a pressed-in front or front lower bushing, including BMW Z4, 325i, 330i, 323i, 328i, and related models.

Key Features

• Rubber-steel construction for controlled compliance and support
• Pressed mounting type for direct suspension arm installation
• Gray finish
• Inside diameter: 20.0 mm (0.787 in)
• Outside diameter: 66.2 mm (2.606 in)
• Length: 62.5 mm (2.461 in)
• Standard replacement item grade
• Front and front lower positions, depending on vehicle application

Product Details

Delphi applies OE-focused dimensional and material analysis to this suspension control arm bushing to help maintain proper fit and suspension geometry. The part is tested for extreme temperature exposure from below -40 degrees C to over 120 degrees C and is subjected to 720 hours of salt spray testing, reflecting the durability expectations associated with OE-style steering and suspension components. This Delphi TD1047W bushing is a direct service part for BMW front suspension repairs where the original bushing is worn, cracked, or no longer holding alignment as intended.

This part cross-references MOOG Chassis Products K200714 and Beck/Arnley 101-6092 for the same application.

What It Helps Address

• Front suspension looseness or excess movement
• Clunking or knocking from worn control arm bushings
• Steering wander or reduced directional stability
• Uneven tire wear caused by degraded suspension geometry
• Vibration transfer from deteriorated rubber-steel bushings

Installation Notes

Fits 2003-2008 BMW Z4, front lower; 2003-2008 BMW Z4, front 66mm; 2001-2006 BMW 325Ci, front 66mm; 2001-2006 BMW 325i, front lower; 2001-2006 BMW 330Ci, front 66mm; 2001-2006 BMW 330i, front lower; 2001-2005 BMW 320i, front lower; 2002-2005 BMW 325i, front 66mm; 2002-2005 BMW 330i, front 66mm; 2001 BMW 325i, front from 02/2001; 2001 BMW 330i, front from 02/2001; 2000 BMW 323Ci, front lower; 1998-2000 BMW 323i, front lower; 2000 BMW 328Ci, front 66mm; 2000 BMW 328i, front 66mm; 1998-1999 BMW 318i, front lower; 1999 BMW 328i, front lower from 07/1999; 66mm. Pressed installation requires proper suspension service tools and accurate arm/bushing alignment during installation. Verify the vehicle’s position and 66 mm note before ordering, since fitment varies by model and production date.

Quality Assurance

Delphi uses OE-based engineering, dimensional checks, and material analysis to support consistent aftermarket fit and performance. The bushing is tested against temperature extremes and corrosion exposure to reflect demanding undercar conditions.
