Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

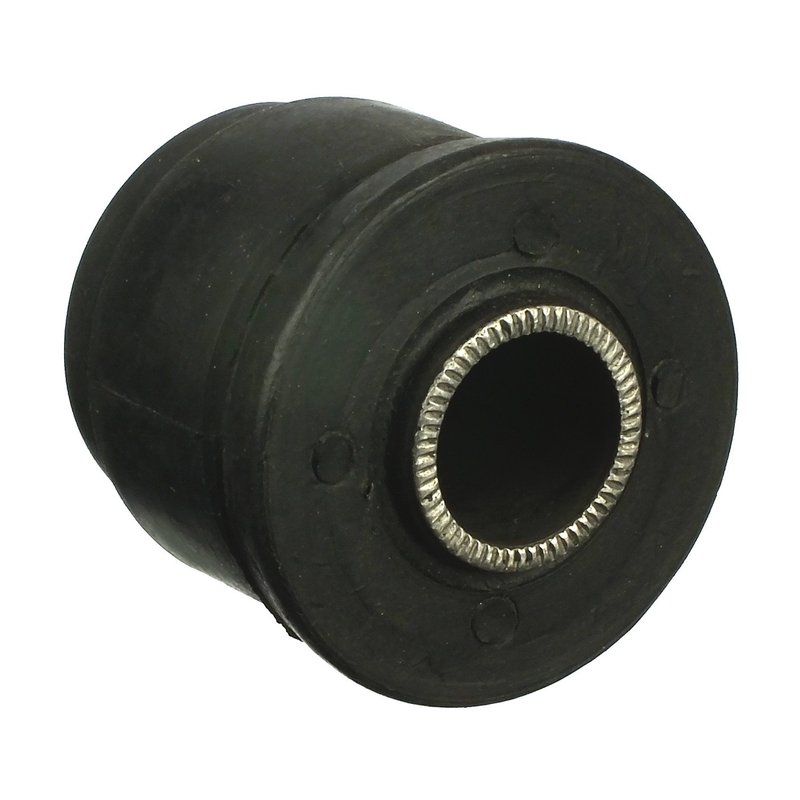

Delphi TD1064W Suspension Control Arm Bushing - Front Upper
| Brand | Delphi TD1064W |
|---|---|
| Position | Front Upper |
| Height | 1.89 |
| Height | 48.0 |
| Inside Diameter | 0.689 |
| Inside Diameter | 17.5 |
| Item Grade | Standard Replacement |
| Material | Rubber |
| Mounting Type | Press Fit |
| Outside Diameter | 1.85 |
| Outside Diameter | 47.0 |
| Wall Thickness | 0.581 |
| Wall Thickness | 14.8 |
| Fits | Nissan · 31 vehicles |
Standard replacement. Press-fit control arm bushing for straightforward service.
Rubber construction. Helps isolate vibration while maintaining suspension compliance.
OE expertise. Delphi applies dimensional and material analysis for compatibility.
Cross-references Beck/Arnley 101-3441, Dorman - OE Solutions 536-835 and Mevotech Supreme MK9209 for the same application. See all 8.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Delphi TD1064W Front Upper Control Arm Bushing
The Delphi TD1064W is a standard replacement suspension control arm bushing for front upper applications. Built with rubber and press-fit mounting, it is made for Nissan Pickup, Pathfinder, D21, and 720 models that need a direct-fit bushing solution.
- Rubber construction for suspension isolation and road feel control
- Press-fit mounting type for front upper control arm applications
- Standard replacement grade for OE-style service work
- Dimensions: 17.5 mm inside diameter, 47.0 mm outside diameter, 48.0 mm height
- Delphi OE-focused dimensional and material analysis for fit compatibility
- Tested for temperature extremes below -40 C and above 120 C
- Exposed to 720 hours of salt spray during validation testing
Fitment and Application Details
Compatible with front upper suspension applications on 1980-1986 Nissan 720, 1986-1994 Nissan D21, 1987-1996 Nissan Pathfinder, and 1995-1997 Nissan Pickup. The Delphi TD1064W is a fitment-based replacement for drivers searching for a front upper control arm bushing for Nissan Pickup, Pathfinder, D21, or 720 suspension service.
This part cross-references MOOG Chassis Products K9209 for the same application.
What This Bushing Helps Address
- Excessive play in the front upper control arm
- Suspension noise from worn rubber bushings
- Loose or inconsistent steering response caused by bushing wear
- Uneven suspension movement at the control arm pivot point
- Restoration of proper front suspension alignment stability after wear-related replacement
Installation Notes and Tips
The TD1064W uses a press-fit design, so proper removal and installation tools are required. Inspect the control arm and surrounding suspension components before installation, and verify the bushing dimensions against the original part to confirm correct front upper placement on the vehicle.
Quality Assurance
Delphi applies OE-focused engineering to its aftermarket steering and suspension portfolio. This bushing is validated through dimensional and material analysis, along with environmental testing that includes extreme temperature exposure and extended salt-spray resistance.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 1997 | Nissan | Pickup | — | Front Upper | — |
| 1996 | Nissan | Pathfinder | — | Front Upper | — |
| 1996 | Nissan | Pickup | XE | Front Upper | — |
| 1996 | Nissan | Pickup | SE | Front Upper | — |
| 1995 | Nissan | Pathfinder | — | Front Upper | — |
| 1995 | Nissan | Pickup | XE | Front Upper | — |
| 1995 | Nissan | Pickup | SE | Front Upper | — |
| 1994 | Nissan | D21 | — | Front Upper | — |
| 1994 | Nissan | Pathfinder | — | Front Upper | — |
| 1993 | Nissan | D21 | — | Front Upper | — |
| 1993 | Nissan | Pathfinder | — | Front Upper | — |
| 1992 | Nissan | D21 | — | Front Upper | — |
| 1992 | Nissan | Pathfinder | — | Front Upper | — |
| 1991 | Nissan | D21 | — | Front Upper | — |
| 1991 | Nissan | Pathfinder | — | Front Upper | — |
| 1990 | Nissan | D21 | — | Front Upper | — |
| 1990 | Nissan | Pathfinder | — | Front Upper | — |
| 1989 | Nissan | D21 | — | Front Upper | — |
| 1989 | Nissan | Pathfinder | — | Front Upper | — |
| 1988 | Nissan | D21 | — | Front Upper | — |
| 1988 | Nissan | Pathfinder | — | Front Upper | — |
| 1987 | Nissan | D21 | — | Front Upper | — |
| 1987 | Nissan | Pathfinder | — | Front Upper | — |
| 1986 | Nissan | 720 | — | Front Upper | — |
| 1986 | Nissan | D21 | — | Front Upper | — |
| 1985 | Nissan | 720 | — | Front Upper | — |
| 1984 | Nissan | 720 | — | Front Upper | — |
| 1983 | Nissan | 720 | — | Front Upper | — |
| 1982 | Nissan | 720 | — | Front Upper | — |
| 1981 | Nissan | 720 | — | Front Upper | — |
| 1980 | Nissan | 720 | — | Front Upper | — |
| No rows match your filter. | |||||
