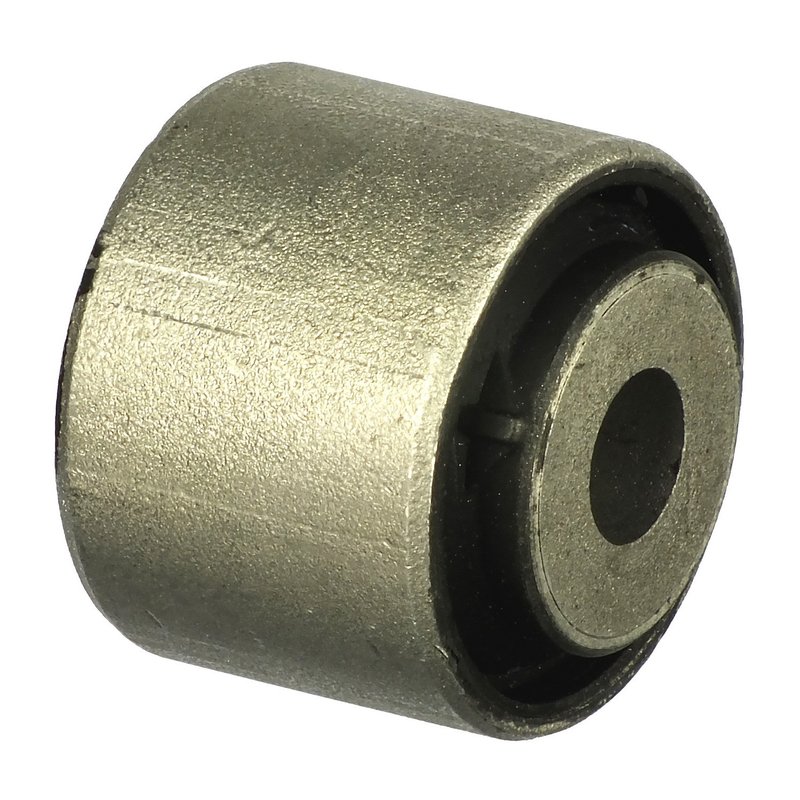

Delphi TD1105W Suspension Control Arm Bushing - Rear Upper Outer

Mercedes-Benz Rear Upper Outer Control Arm Bushing

Delphi TD1105W is a suspension control arm bushing for the rear upper outer position on select Mercedes-Benz S-Class and CL-Class applications. Built with rubber and press-fit mounting, it is made for direct replacement service where precise suspension location and consistent ride control matter.

Fits 2006-2021 Mercedes-Benz S-Class and CL-Class applications at the rear upper outer position, including S550, S600, S63 AMG, S65 AMG, CL550, CL600, CL63 AMG, and CL65 AMG. The TD1105W part number is also used across multiple OE-style interchange references for the same application.

Key Features

• Rubber suspension control arm bushing for rear upper outer placement
• Press-fit mounting type for OE-style service replacement
• Standard replacement grade for suspension restoration work
• Dimensions: 0.476 in inside diameter, 1.63 in outside diameter, 1.492 in height
• Metric dimensions: 12.1 mm inside diameter, 41.4 mm outside diameter, 37.9 mm height
• Wall thickness: 0.577 in / 14.7 mm
• Engineered for Mercedes-Benz S560, S550, S600, S63 AMG, S65 AMG, and related models

Detailed Description

Delphi TD1105W suspension control arm bushing is built around OE-focused dimensional and material analysis to support proper fitment between the original suspension design and the replacement part. Delphi subjects its steering and suspension components to extreme temperature exposure and extended salt-spray testing to evaluate durability in demanding conditions. This bushing is intended for rear upper outer suspension service on Mercedes-Benz S-Class and CL-Class vehicles, including select Maybach variants.

This part cross-references Dorman - OE Solutions 521-485 for the same application. The Delphi TD1105W part number is a practical choice when replacing worn rear upper outer bushings on Mercedes-Benz S550, S600, and S63 AMG platforms where suspension geometry and bushing condition affect handling and tire wear.

What It Helps Address

• Rear suspension looseness or excess movement at the control arm
• Clunking or knocking from worn bushing material
• Uneven tire wear caused by suspension alignment instability
• Imprecise rear-end handling or reduced road feel
• Visible cracking, hardening, or deterioration of the original rubber bushing

Installation Notes and Tips

Install in the rear upper outer control arm position only. Because this is a press-fit bushing, proper removal and installation tools are recommended to avoid damage to the control arm or new bushing. Verify the vehicle application by year, model, and suspension position before ordering, especially on Mercedes-Benz S-Class, Maybach S-Class, and CL-Class variants.

Quality Assurance

Delphi applies OE-focused testing and dimensional analysis to support consistent replacement quality. The part is evaluated for temperature resistance and corrosion exposure as part of Delphi's suspension and steering validation process.
