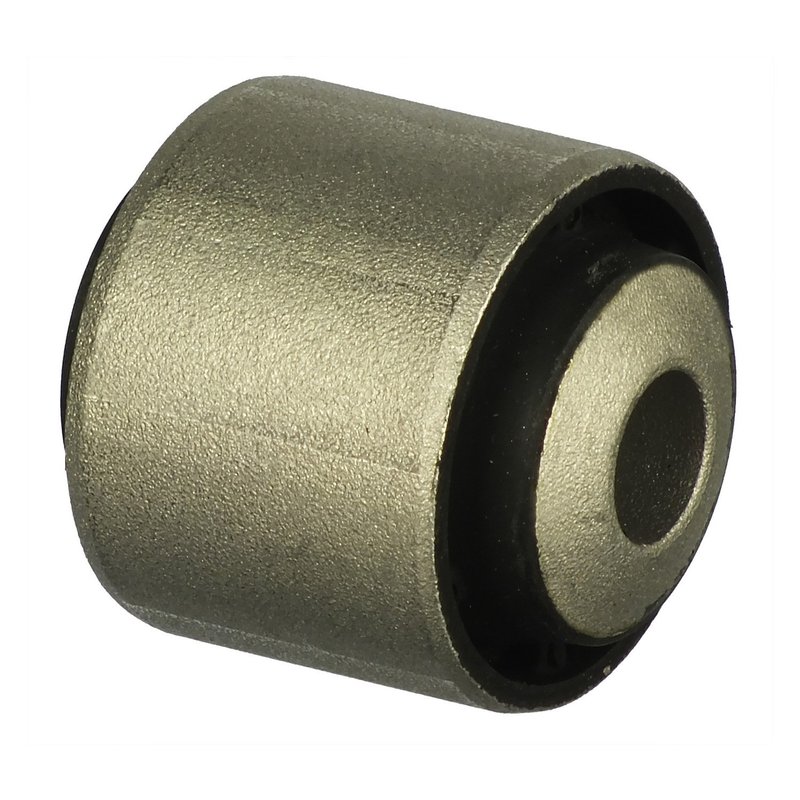

Delphi TD1106W Suspension Control Arm Bushing - Rear Lower Outer

Mercedes-Benz Rear Lower Outer Control Arm Bushing

Delphi TD1106W is a suspension control arm bushing for the rear lower outer position on select Mercedes-Benz models. Built with rubber and press-fit mounting, it is a standard replacement part sized for OE-style fitment and consistent suspension location control.

Key Features

• Rubber construction for suspension isolation and load control
• Press-fit mounting type for direct replacement service
• Standard replacement grade for OE-style serviceability
• Dimensions: 0.472 in inside diameter, 1.551 in outside diameter, 1.587 in height
• Wall thickness: 0.539 in
• Fits the rear lower outer suspension position
• Delphi TD1106W is engineered using dimensional and material analysis for OE-to-aftermarket compatibility

Detailed Description

Delphi TD1106W suspension control arm bushing is designed for Mercedes-Benz rear suspension service where precise bushing fit and material consistency matter. The rubber construction helps maintain suspension geometry at the rear lower outer control arm location, while the press-fit design supports a secure installation in the control arm assembly. Delphi applies OE-focused testing and material analysis to help ensure the aftermarket part matches the intended application. This part cross-references Beck/Arnley 102-6800 and 102-6801 for the same application. It is a direct-fit option for Mercedes-Benz S65 AMG, CL550, CL600, CL63 AMG, CL65 AMG, S350, S400, S550, S600, S450, and S63 AMG applications where the rear lower outer bushing is specified.

Common Repair Uses

• Restoring worn rear suspension bushing support
• Addressing clunking or looseness from a deteriorated control arm bushing
• Correcting suspension play at the rear lower outer mounting point
• Replacing cracked, hardened, or separated rubber bushings
• Maintaining stable rear suspension alignment on Mercedes-Benz S65 AMG and CL/S-Class models

Installation Notes and Tips

Fits 2006-2013 Mercedes-Benz S65 AMG, rear lower outer. Fits 2007-2014 Mercedes-Benz CL550, rear lower outer. Fits 2006-2014 Mercedes-Benz CL600, rear lower outer. Fits 2008-2014 Mercedes-Benz CL63 AMG, rear lower outer. Fits 2008-2014 Mercedes-Benz CL65 AMG, rear lower outer. Fits 2006 Mercedes-Benz CL65 AMG, rear lower outer. Fits 2012-2013 Mercedes-Benz S350, rear lower outer. Fits 2010-2013 Mercedes-Benz S400, rear lower outer. Fits 2007-2013 Mercedes-Benz S550, rear lower outer. Fits 2006-2013 Mercedes-Benz S600, rear lower outer. Fits 2008-2011 Mercedes-Benz S450, rear lower outer. Fits 2008-2010 Mercedes-Benz S63 AMG, rear lower outer. Verify control arm condition and bushing dimensions before pressing the new part into place.

Quality Assurance

Delphi tests this steering and suspension component for extreme temperature exposure from below -40 degrees C to above 120 degrees C, along with extended salt-spray exposure, to support durability in demanding road conditions. The part is backed by Delphi’s OE-focused engineering approach and dimensional verification for application accuracy.
