Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

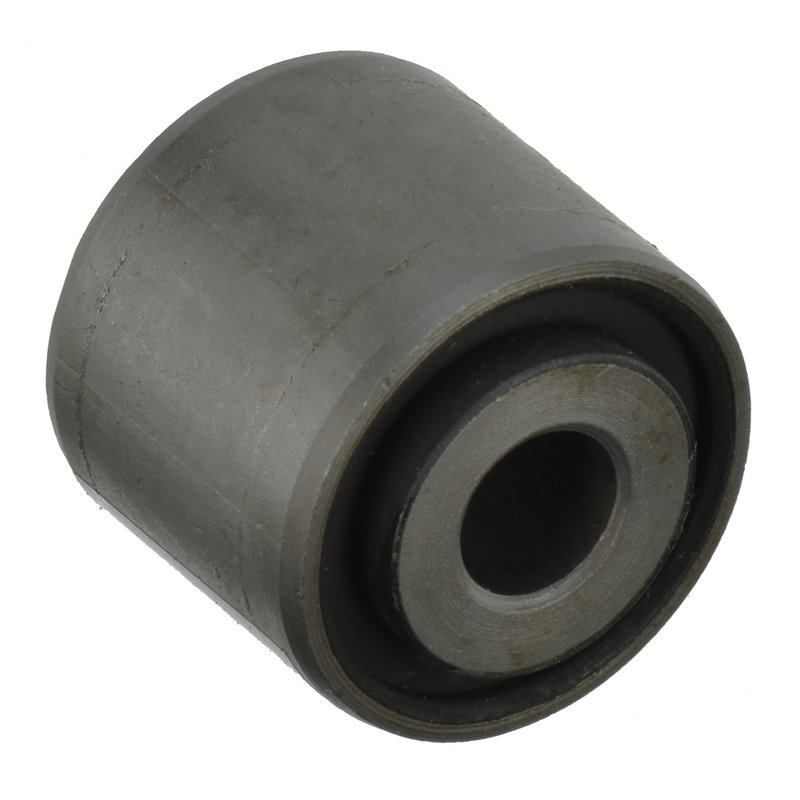

Delphi TD1155W Suspension Control Arm Bushing - Rear Lower Forward
| Brand | Delphi TD1155W |
|---|---|
| Position | Rear Lower Forward |
| Height | 1.378 |
| Height | 35.0 |
| Inside Diameter | 0.484 |
| Inside Diameter | 12.3 |
| Item Grade | Standard Replacement |
| Material | Rubber |
| Mounting Hardware Included | Yes |
| Mounting Type | Press Fit |
| Outside Diameter | 1.433 |
| Outside Diameter | 36.4 |
| Wall Thickness | 0.474 |
| Wall Thickness | 12.1 |
| Fits | Jaguar · 7 vehicles |
Standard replacement. Press-fit control arm bushing for straightforward service.
Rubber construction. Delivers the compliance and isolation expected in suspension bushings.
OE expertise. Delphi applies dimensional and material analysis for strong part compatibility.
Cross-references MOOG Chassis Products RK642135 and C2S46370 for the same application. See all 2.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Delphi TD1155W Rear Lower Forward Bushing
Delphi TD1155W is a suspension control arm bushing built for the rear lower forward position on select Jaguar X-Type models. It uses rubber construction and press-fit mounting to support a precise OE-style replacement for worn suspension pivot points.
Key Features
- Rubber suspension control arm bushing for controlled compliance and road isolation
- Press-fit mounting type for the rear lower forward position
- Standard replacement grade for direct service use
- Includes mounting hardware
- Dimensions: 0.484 in inside diameter, 1.433 in outside diameter, 1.378 in height, 0.474 in wall thickness
Application Details
Fits 2002-2008 Jaguar X-Type, rear lower forward. This Delphi TD1155W bushing is engineered for the suspension control arm location where accurate fit and material consistency matter for alignment stability and ride quality. It is a direct replacement for the rear lower forward bushing used on Jaguar X-Type models from 2002 through 2008.
Delphi applies OE-focused dimensional and material analysis to help match aftermarket fitment to the original part. The bushing is tested for extreme temperature exposure below -40 degrees C and above 120 degrees C, and it is exposed to 720 hours of salt spray during validation. This part cross-references MOOG Chassis Products RK642135 for the same application.
Common Repair Symptoms
- Clunking or knocking from the rear suspension
- Excessive play in the control arm pivot point
- Uneven tire wear related to suspension movement
- Loose or imprecise rear suspension response
- Visible cracking, separation, or deterioration of the original rubber bushing
Installation Notes
Delphi TD1155W uses a press-fit design, so proper removal and installation tools are recommended. Inspect the control arm, mounting surfaces, and adjacent bushings before installation, and verify the rear lower forward position on the Jaguar X-Type before pressing the new bushing into place. Confirm alignment after service.
Quality Assurance
Delphi builds this bushing using OE-oriented engineering and validation methods, including dimensional and material analysis plus environmental testing for heat and corrosion resistance. Part number TD1155W is made to support consistent fitment for the specified Jaguar X-Type applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2008 | Jaguar | X-Type | Rear Lower Forward | — |
| 2007 | Jaguar | X-Type | Rear Lower Forward | — |
| 2006 | Jaguar | X-Type | Rear Lower Forward | — |
| 2005 | Jaguar | X-Type | Rear Lower Forward | — |
| 2004 | Jaguar | X-Type | Rear Lower Forward | — |
| 2003 | Jaguar | X-Type | Rear Lower Forward | — |
| 2002 | Jaguar | X-Type | Rear Lower Forward | — |
| No rows match your filter. | ||||
