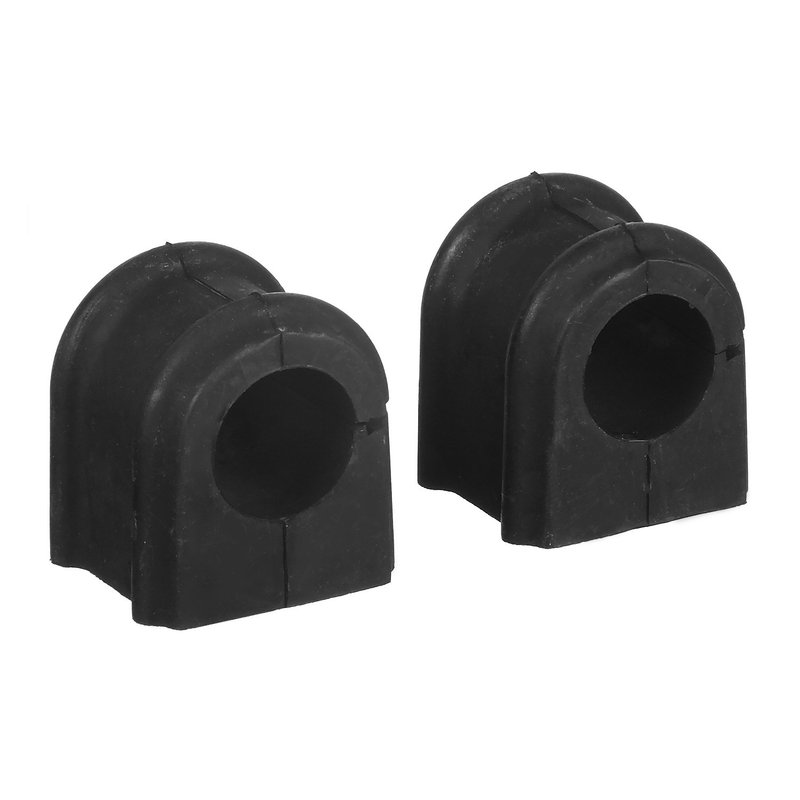

Delphi TD1174W Suspension Stabilizer Bar Bushing Kit - Rear

Rear Stabilizer Bar Bushing Kit for Sprinter 3500

Delphi TD1174W is a rear suspension stabilizer bar bushing kit built as a standard replacement for select Mercedes-Benz Sprinter 3500 applications. It is engineered for OE-style dimensional and material compatibility, with testing that covers extreme temperatures and extended salt-spray exposure.

• Rear suspension stabilizer bar bushing kit
• Standard replacement grade
• Black bushing construction
• Inside diameter: 1.06 in. / 27.0 mm
• Width: 1.81 in.
• Height: 2.11 in. / 53.5 mm
• No grease fitting included
• No mounting hardware included

OE-Style Fit and Material Control

Delphi TD1174W is built for rear stabilizer bar service on Mercedes-Benz Sprinter 3500 models with the listed frame and axle configuration. Delphi applies OE-focused dimensional and material analysis to help ensure proper part matching, and the component is tested for performance in temperatures below -40 degrees C and above 120 degrees C, along with 720 hours of salt spray exposure. This part cross-references Mercedes-Benz A 904 326 08 81 for the same application.

Vehicle Fitment

• Fits 2016-2017 Mercedes-Benz Sprinter 3500, rear, W/O Reinforced Lower Frame; W/O Rear Axle Stabilizer Under The Frame
• Fits 2016-2017 Mercedes-Benz Sprinter 3500, rear, Bushing For Torsion Bar To Rear Axle; W/O Reinforced Lower Frame; W/O Rear Axle Under The Frame

Common Replacement Reasons

• Rear sway bar bushing wear causing looseness or play
• Clunking or rattling from the rear suspension area
• Reduced stabilizer bar control at the rear axle
• Cracked, hardened, or deteriorated bushing material
• Service replacement for a Mercedes-Benz Sprinter 3500 rear torsion bar bushing

Installation Notes

Confirm the rear application, frame configuration, and axle layout before installation. Compare the original bushing dimensions and the stabilizer bar diameter to Delphi TD1174W, and inspect the bar surface for wear before assembly. Because mounting hardware is not included, reuse or replace related fasteners as needed during service.

Quality Assurance

Delphi uses OE-based engineering and extensive dimensional and material analysis for aftermarket steering and suspension components. TD1174W is tested for temperature extremes and corrosion resistance to support consistent rear suspension service on Mercedes-Benz Sprinter 3500 applications.
