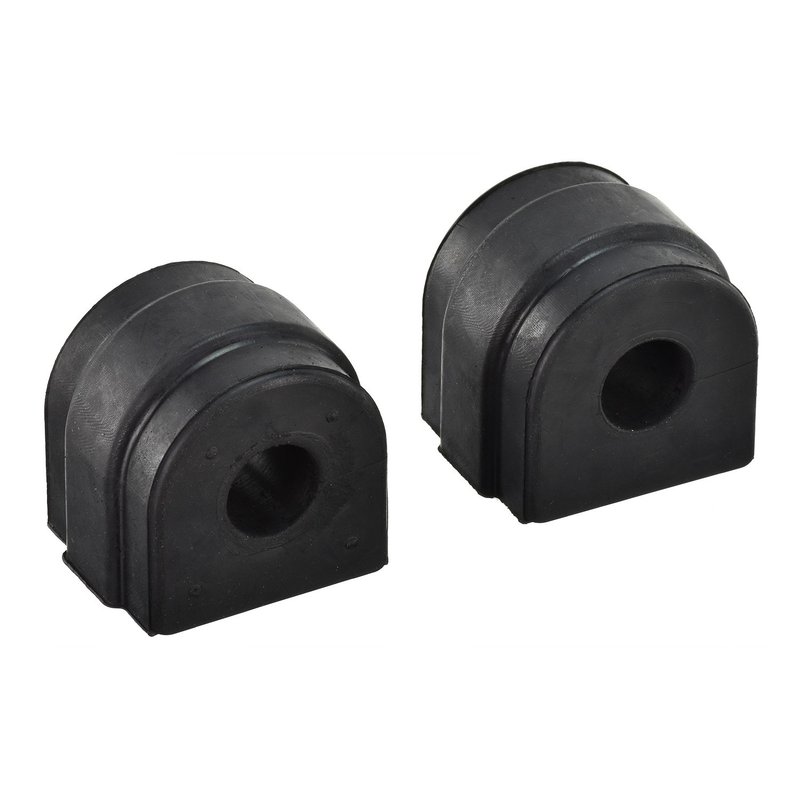

Delphi TD1204W Suspension Stabilizer Bar Bushing Kit - Front To Frame

Delphi TD1204W Front Stabilizer Bar Bushing Kit

Delphi TD1204W is a front-to-frame suspension stabilizer bar bushing kit built for OE-style replacement on select BMW applications. It uses rubber construction and standard replacement dimensions to support proper sway bar location and consistent front suspension response.

Key Features

• Rubber bushing material with black finish
• Front to frame position for stabilizer bar mounting
• Standard replacement grade for OE-style service
• Dimensional specs: 23.5 mm inside diameter, 65.0 mm width, 20.75 mm height
• Designed for BMW Z4, 325Ci, 330Ci, 320i, 325i, 325xi, 330i, 330xi, 323Ci, 323i, 328Ci, and 328i front suspension applications

Detailed Description

The Delphi TD1204W stabilizer bar bushing kit is engineered for front-to-frame mounting locations where the sway bar passes through the chassis support. Delphi applies OE-focused dimensional and material analysis to help ensure proper fitment and consistent replacement performance. This part number, TD1204W, is listed for multiple BMW 3 Series and Z4 front suspension applications, including BMW Z4 models with a 24 mm bar diameter and several E46-era BMW coupe and sedan variants. This part cross-references MOOG Chassis Products K200821 for the same application.

What It Helps Address

• Clunking or knocking from worn front stabilizer bar bushings
• Excess sway bar movement at the frame mount
• Loose or inconsistent front-end handling feel
• Noise caused by hardened, cracked, or compressed rubber bushings
• Restoration of proper sway bar support on BMW front suspension systems

Installation Notes and Tips

Verify the sway bar diameter and mounting location before installation. Fitment includes BMW Z4 2003-2008, front to frame, with 24 mm bar diameter; BMW 325Ci 2001-2006, front to frame; BMW 330Ci 2001-2006, front to frame; BMW 320i 2001-2005, front to frame; BMW 325i 2001-2005, front to frame; BMW 325xi 2001-2005, front to frame; BMW 330i 2001-2005, front to frame; BMW 330xi 2001-2005, front to frame; BMW 323Ci 2000, front to frame, with 24 mm bar diameter; BMW 323i 1999-2000, front to frame, with 24 mm bar diameter; BMW 328Ci 2000, front to frame, with 24 mm bar diameter; and BMW 328i 1999-2000, front to frame, with 24 mm bar diameter. Confirm the existing bar diameter and frame mount style against the vehicle before service.

Quality Assurance

Delphi validates steering and suspension components through temperature exposure below -40 degrees C and above 120 degrees C, along with extended salt spray testing. The brand also uses dimensional and material analysis to support OE-level compatibility between original and replacement parts.
