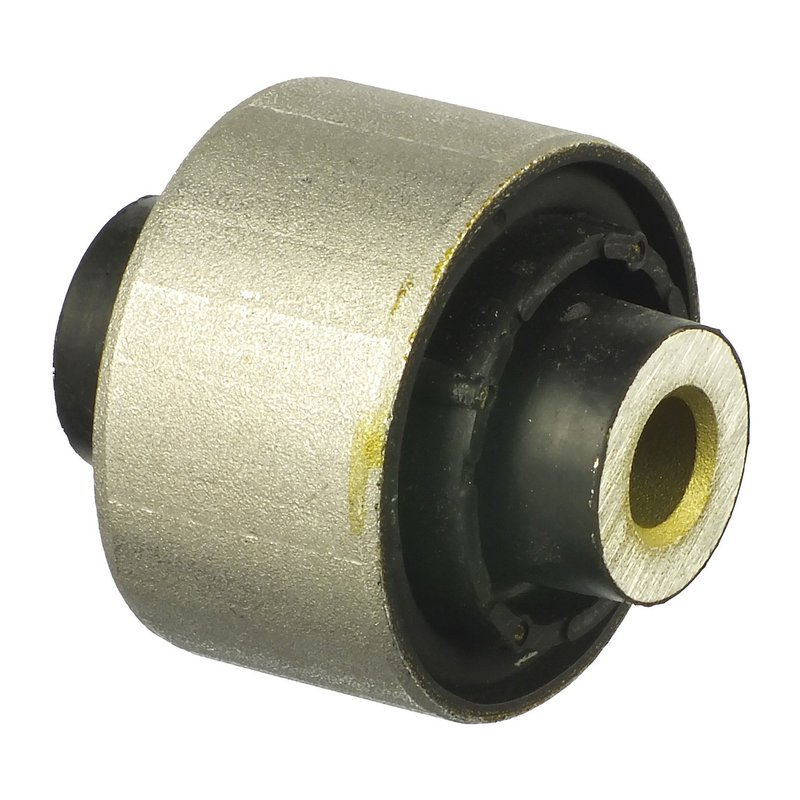

Delphi TD1240W Suspension Control Arm Bushing - Front Lower Inner
OE Quality 60-Day Returns
Delphi

Delphi TD1240W Suspension Control Arm Bushing - Front Lower Inner

Brand Delphi TD1240W
Position Front Lower Inner
Height 2.354
Height 59.8
Inside Diameter 0.484
Inside Diameter 12.3
Item Grade Standard Replacement
Material Rubber
Mounting Type Press Fit
Outside Diameter 2.177
Outside Diameter 55.3
Wall Thickness 0.847
Wall Thickness 21.5
Fits Audi and Volkswagen · 30 vehicles

Standard replacement. Press-fit bushing for straightforward service and OE-style compatibility.

Rubber construction. Helps isolate vibration while maintaining the control arm's movement.

OE expertise. Delphi applies dimensional and material analysis for fit and performance.

Cross-references TRW JBU629, 4E0 407 182 C and 4E0 407 182B for the same application. See all 3.

$43.89Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $43.89
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Suspension Control Arm Bushing options

OE-Style Front Lower Inner Bushing

Delphi TD1240W is a suspension control arm bushing built for the front lower inner position on select Audi and Volkswagen applications. It uses a rubber construction and press-fit mounting style to support precise suspension location and consistent ride control.

Engineered with Delphi OE-focused dimensional and material analysis, this bushing is made to match the fit and function expected in factory-style suspension service. It is a standard replacement for vehicles such as the Audi A6, Audi A6 Quattro, Audi S6, Audi A8 Quattro, Audi S8, and Volkswagen Phaeton.

  • Rubber bushing construction for suspension isolation and control
  • Press-fit mounting type for front lower inner control arm service
  • Standard replacement grade for OE-style repair work
  • Dimensions: 0.484 in inside diameter, 2.177 in outside diameter, 2.354 in height
  • Delphi TD1240W for front suspension control arm applications

Fitment Details

  • Fits 2006-2011 Audi A6, Front Lower Inner
  • Fits 2009-2011 Audi A6 Quattro, Front Lower Inner
  • Fits 2005-2007 Audi A6 Quattro, Front Lower Inner
  • Fits 2007-2011 Audi S6, Front Lower Inner
  • Fits 2004-2010 Audi A8 Quattro, Front Lower Inner
  • Fits 2007-2009 Audi S8, Front Lower Inner
  • Fits 2004-2006 Volkswagen Phaeton, Front Lower Inner

What This Bushing Helps Address

  • Excessive play in the front lower control arm
  • Clunking or knocking from worn suspension bushings
  • Steering looseness caused by deteriorated rubber
  • Uneven tire wear related to suspension movement
  • Loss of suspension alignment stability under load

Installation Notes and Tips

TD1240W installs in a press-fit location, so proper bushing removal and installation tools are recommended. Confirm the front lower inner position before service and verify dimensions against the original part for the Audi A6, Audi A6 Quattro, Audi S6, Audi A8 Quattro, Audi S8, or Volkswagen Phaeton.

This part cross-references TRW JBU629 for the same application.

Quality Assurance

Delphi subjects its OE-style steering and suspension parts to temperature extremes below -40 degrees C and above 120 degrees C, along with 720 hours of salt spray testing. Delphi also uses dimensional and material analysis to support OE-level fitment consistency for the aftermarket.

This part fits 30 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2011AudiA6Front Lower Inner—
2011AudiA6 QuattroFront Lower Inner—
2011AudiS6Front Lower Inner—
2010AudiA6Front Lower Inner—
2010AudiA6 QuattroFront Lower Inner—
2010AudiA8 QuattroFront Lower Inner—
2010AudiS6Front Lower Inner—
2009AudiA6Front Lower Inner—
2009AudiA6 QuattroFront Lower Inner—
2009AudiA8 QuattroFront Lower Inner—
2009AudiS6Front Lower Inner—
2009AudiS8Front Lower Inner—
2008AudiA6Front Lower Inner—
2008AudiA8 QuattroFront Lower Inner—
2008AudiS6Front Lower Inner—
2008AudiS8Front Lower Inner—
2007AudiA6Front Lower Inner—
2007AudiA6 QuattroFront Lower Inner—
2007AudiA8 QuattroFront Lower Inner—
2007AudiS6Front Lower Inner—
2007AudiS8Front Lower Inner—
2006AudiA6Front Lower Inner—
2006AudiA6 QuattroFront Lower Inner—
2006AudiA8 QuattroFront Lower Inner—
2006VolkswagenPhaetonFront Lower Inner—
2005AudiA6 QuattroFront Lower Inner—
2005AudiA8 QuattroFront Lower Inner—
2005VolkswagenPhaetonFront Lower Inner—
2004AudiA8 QuattroFront Lower Inner—
2004VolkswagenPhaetonFront Lower Inner—
Directly replaces or cross-references 3 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
TRW — JBU6294E0 407 182 C4E0 407 182B
