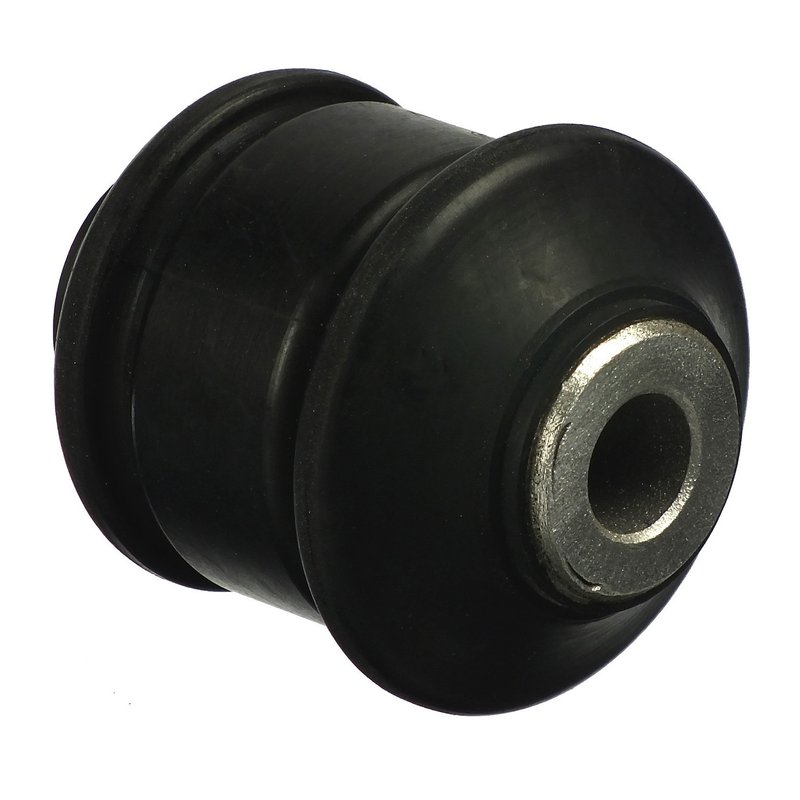

Delphi TD1246W Suspension Control Arm Bushing - Rear Lower Outer
| Brand | Delphi TD1246W |
|---|---|
| Position | Rear Lower Outer |
| Color | Black |
| Inside Diameter | 0.48 |
| Inside Diameter | 12.2 |
| Item Grade | Standard Replacement |
| Length | 2.35 |
| Length | 59.8 |
| Material | Rubber |
| Mounting Hardware Included | No |
| Mounting Type | Press Fit |
| Outside Diameter | 2.012 |
| Outside Diameter | 51.1 |
| Wall Thickness | 0.766 |
| Wall Thickness | 19.5 |
| Fits | Audi · 42 vehicles |
Standard replacement. OE expertise and dimensional analysis help ensure compatibility.
Rubber construction. Provides dependable cushioning and vibration isolation.
Press fit design. Installs securely without mounting hardware included.
Cross-references Beck/Arnley 101-5821, 8E0 505 203 D and 8E0 505 203C for the same application. See all 5.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
OE-Style Rear Lower Outer Bushing
Delphi TD1246W is a suspension control arm bushing built for rear lower outer applications on select Audi models. It uses rubber construction and press-fit mounting to support a precise OE-style replacement for worn suspension bushings.
Compatible with Audi A4, Audi A4 Quattro, Audi A6, Audi A6 Quattro, Audi S4, Audi S6, and Audi RS4 rear lower outer positions across the listed model years.
Key Features
- Rubber bushing construction for standard replacement service
- Press-fit mounting type for rear lower outer suspension locations
- Black finish
- Dimensions: 0.48 in inside diameter, 2.012 in outside diameter, 2.35 in length
- Wall thickness: 0.766 in
- Delphi OE-focused dimensional and material analysis for fit consistency
- Tested for extreme temperature exposure below -40 C and above 120 C
- Exposed to 720 hours of salt spray during validation testing
Detailed Description
The Delphi TD1246W suspension control arm bushing is engineered for rear lower outer suspension service on select Audi A4, Audi A4 Quattro, Audi A6, Audi A6 Quattro, Audi S4, Audi S6, and Audi RS4 applications. As a standard replacement bushing, it is built with rubber material and press-fit mounting to match the original suspension interface and restore proper control arm support.
Delphi applies OE-oriented testing and dimensional analysis to help maintain compatibility between the original part and the aftermarket replacement. This part cross-references Beck/Arnley 101-5821 for the same application.
Common Problems It Can Address
- Rear suspension looseness or excess movement
- Clunking or knocking from the rear lower control arm area
- Uneven tire wear related to worn bushing support
- Reduced suspension stability over bumps and road irregularities
- Visible cracking, hardening, or deterioration of the original rubber bushing
Installation Notes and Tips
Press-fit installation is required, so the control arm typically needs to be removed and the old bushing pressed out before the new one is installed. Verify the rear lower outer position and compare the dimensions to the original bushing before installation. Professional suspension service equipment is recommended for proper alignment and press work.
Fits 2002-2009 Audi A4, Rear Lower Outer; 2002-2009 Audi A4 Quattro, Rear Lower Outer; 2006-2009 Audi A6, Rear Lower Outer; 2005-2009 Audi A6 Quattro, Rear Lower Outer; 2004-2009 Audi S4, Rear Lower Outer; 2007-2009 Audi S6, Rear Lower Outer; 2007-2008 Audi RS4, Rear Lower Outer; 2010-2011 Audi A6, Rear Lower; 2010-2011 Audi A6 Quattro, Rear Lower; 2010-2011 Audi S6, Rear Lower.
Quality Assurance
Delphi validates this bushing through temperature cycling and salt-spray exposure to evaluate durability in demanding conditions. The brand’s OE background and material analysis support consistent aftermarket fitment for the listed Audi rear lower suspension applications. Part number TD1246W is the reference for ordering and fit verification.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2011 | Audi | A6 | Rear Lower | — |
| 2011 | Audi | A6 Quattro | Rear Lower | — |
| 2011 | Audi | S6 | Rear Lower | — |
| 2010 | Audi | A6 | Rear Lower | — |
| 2010 | Audi | A6 Quattro | Rear Lower | — |
| 2010 | Audi | S6 | Rear Lower | — |
| 2009 | Audi | A4 | Rear Lower Outer | — |
| 2009 | Audi | A4 Quattro | Rear Lower Outer | — |
| 2009 | Audi | A6 | Rear Lower Outer | — |
| 2009 | Audi | A6 Quattro | Rear Lower Outer | — |
| 2009 | Audi | S4 | Rear Lower Outer | — |
| 2009 | Audi | S6 | Rear Lower Outer | — |
| 2008 | Audi | A4 | Rear Lower Outer | — |
| 2008 | Audi | A4 Quattro | Rear Lower Outer | — |
| 2008 | Audi | A6 | Rear Lower Outer | — |
| 2008 | Audi | A6 Quattro | Rear Lower Outer | — |
| 2008 | Audi | RS4 | Rear Lower Outer | — |
| 2008 | Audi | S4 | Rear Lower Outer | — |
| 2008 | Audi | S6 | Rear Lower Outer | — |
| 2007 | Audi | A4 | Rear Lower Outer | — |
| 2007 | Audi | A4 Quattro | Rear Lower Outer | — |
| 2007 | Audi | A6 | Rear Lower Outer | — |
| 2007 | Audi | A6 Quattro | Rear Lower Outer | — |
| 2007 | Audi | RS4 | Rear Lower Outer | — |
| 2007 | Audi | S4 | Rear Lower Outer | — |
| 2007 | Audi | S6 | Rear Lower Outer | — |
| 2006 | Audi | A4 | Rear Lower Outer | — |
| 2006 | Audi | A4 Quattro | Rear Lower Outer | — |
| 2006 | Audi | A6 | Rear Lower Outer | — |
| 2006 | Audi | A6 Quattro | Rear Lower Outer | — |
| 2006 | Audi | S4 | Rear Lower Outer | — |
| 2005 | Audi | A4 | Rear Lower Outer | — |
| 2005 | Audi | A4 Quattro | Rear Lower Outer | — |
| 2005 | Audi | A6 Quattro | Rear Lower Outer | — |
| 2005 | Audi | S4 | Rear Lower Outer | — |
| 2004 | Audi | A4 | Rear Lower Outer | — |
| 2004 | Audi | A4 Quattro | Rear Lower Outer | — |
| 2004 | Audi | S4 | Rear Lower Outer | — |
| 2003 | Audi | A4 | Rear Lower Outer | — |
| 2003 | Audi | A4 Quattro | Rear Lower Outer | — |
| 2002 | Audi | A4 | Rear Lower Outer | — |
| 2002 | Audi | A4 Quattro | Rear Lower Outer | — |
