Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

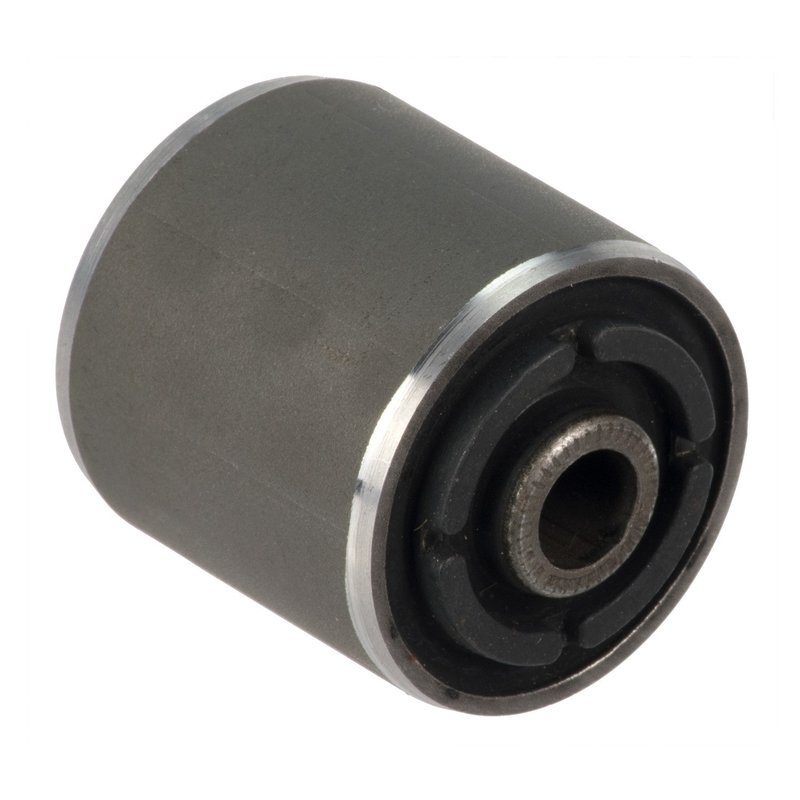

Delphi TD1487W Suspension Control Arm Bushing - Front Forward
| Brand | Delphi TD1487W |
|---|---|
| Position | Front Forward |
| Height | 2.303 |
| Height | 58.5 |
| Inside Diameter | 0.48 |
| Inside Diameter | 12.2 |
| Item Grade | Standard Replacement |
| Material | Rubber |
| Mounting Type | Press Fit |
| Outside Diameter | 1.858 |
| Outside Diameter | 47.2 |
| Wall Thickness | 0.689 |
| Wall Thickness | 17.5 |
| Fits | Kia · 11 vehicles |
Standard replacement. Press-fit rubber bushing for dependable suspension service.
OE expertise. Delphi applies dimensional and material analysis for compatibility.
Extreme-tested. Withstands temperatures below -40°C and over 120°C.
Cross-references Beck/Arnley 101-5956 and 0K2C0-34-460 for the same application. See all 2.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Delphi TD1487W Front Forward Control Arm Bushing
Delphi TD1487W is a standard replacement suspension control arm bushing for the front forward position. Built with rubber and press-fit mounting, it is sized for OE-style service on select Kia applications, including Kia Spectra and Kia Sephia models.
Key Features
- Rubber construction for suspension isolation and road noise control
- Press-fit mounting type for OE-style installation
- Standard replacement grade for routine suspension service
- Dimensions: 12.2 mm inside diameter, 47.2 mm outside diameter, 58.5 mm height
- Front forward position application
- Delphi part number TD1487W for catalog and cross-reference lookup
Application Details
Delphi TD1487W is engineered for the front forward control arm location on 1999-2004 Kia Spectra and Kia Sephia applications. It is a direct-fit suspension bushing for drivers searching for a front forward control arm bushing for 2000-2004 Kia Spectra or a front forward bushing for 1999-2001 Kia Sephia. This part cross-references Beck/Arnley 101-5956 for the same application.
What It Helps Address
- Excessive suspension play at the control arm pivot point
- Clunking or knocking from worn front suspension bushings
- Steering looseness caused by deteriorated rubber bushings
- Uneven tire wear related to front suspension movement
- Vibration transfer from worn control arm mounting points
Installation Notes
TD1487W uses a press-fit design, so proper bushing removal and installation tools are recommended. Verify the front forward position, confirm dimensions against the original part, and inspect the control arm and surrounding hardware for wear before installation. For Kia Spectra and Kia Sephia service, match the vehicle year and note the 1999-2000 Sephia fitment from 06/09/1999.
Quality Assurance
Delphi applies OE-focused dimensional and material analysis to support fitment consistency between original and aftermarket parts. The bushing is tested for extreme temperature exposure below -40 degrees C and above 120 degrees C, and it is evaluated with 720 hours of salt spray exposure for corrosion resistance validation.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2004 | Kia | Spectra | LS | Front Forward | — |
| 2004 | Kia | Spectra | GSX | Front Forward | — |
| 2004 | Kia | Spectra | GS | Front Forward | — |
| 2004 | Kia | Spectra | Base | Front Forward | — |
| 2003 | Kia | Spectra | — | Front Forward | — |
| 2002 | Kia | Spectra | — | Front Forward | — |
| 2001 | Kia | Sephia | — | Front Forward | — |
| 2001 | Kia | Spectra | — | Front Forward | — |
| 2000 | Kia | Sephia | — | Front Forward | From 06/09/1999 |
| 2000 | Kia | Spectra | — | Front Forward | — |
| 1999 | Kia | Sephia | — | Front Forward | From 06/09/1999 |
