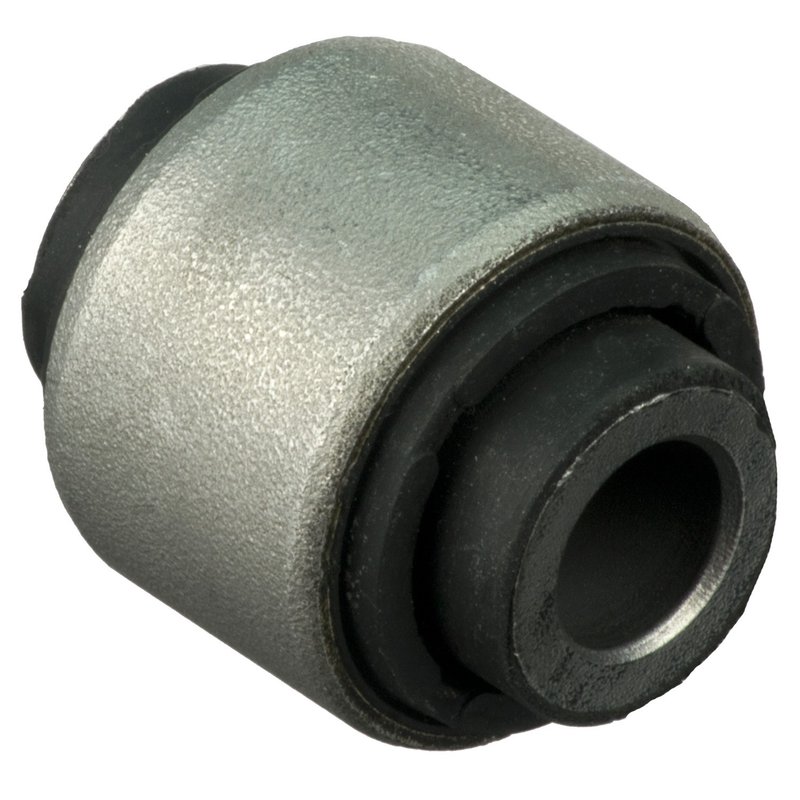

Delphi TD1653W Suspension Control Arm Bushing - Rear Upper

Delphi Rear Upper Control Arm Bushing TD1653W

Restore rear suspension control with this Delphi suspension control arm bushing, part number TD1653W. Built with rubber and OE-focused dimensional analysis, it is made for precise replacement in rear upper suspension locations on select Audi and Volkswagen models.

Key Features

• Rubber construction for standard replacement service
• Press-fit mounting type for rear upper suspension applications
• OE-style dimensional and material analysis for proper fit
• Engineered for temperature exposure below -40 C and above 120 C
• Tested for corrosion resistance with 720 hours of salt spray exposure
• Dimensions: 44.96 mm length, 45.0 mm height, 14.2 mm inside diameter, 23.98 mm outside diameter, 12.1 mm wall thickness

Detailed Description

Delphi TD1653W is a suspension control arm bushing for rear upper positions, including rear upper at knuckle applications where listed. It is a standard replacement part built from rubber and sized to match OE requirements for consistent suspension geometry and dependable bushing support. This part cross-references MOOG Chassis Products RK640613 for the same application.

Compatible With Audi A3, Audi A3 Quattro, Audi TT Quattro, Audi TTS Quattro, Audi TT RS Quattro, and Volkswagen CC, Eos, Golf, Golf R, GTI, Tiguan, Passat, Passat CC, Jetta, and R32 applications listed below. The Delphi TD1653W is a direct-fit option for drivers servicing rear upper suspension wear on Audi A3 and Volkswagen GTI platforms.

Common Problems This Part Can Address

• Rear suspension looseness or excess movement at the control arm
• Clunking or knocking from worn rear upper bushings
• Uneven rear tire wear caused by suspension play
• Imprecise rear suspension response during braking or cornering
• Degraded ride quality from cracked or hardened rubber bushings

Installation Notes and Tips

This bushing uses a press-fit mounting type and should be installed with the correct suspension service tools to avoid damage to the arm or bushing shell. Verify the rear upper position and note any chassis or date restrictions before ordering, including 2012 Volkswagen applications limited to production through 05/28/2012 and the 2006 Volkswagen GTI chassis note. Confirm the vehicle’s exact fitment against the listed year, make, model, and position before installation.

• Fits 2006-2013 Audi A3, Rear Upper
• Fits 2006-2013 Audi A3 Quattro, Rear Upper
• Fits 2008-2012 Audi TT Quattro, Rear Upper
• Fits 2012 Audi TT RS Quattro, Rear Upper At Knuckle
• Fits 2009-2011 Audi TTS Quattro, Rear Upper At Knuckle
• Fits 2012 Volkswagen CC, Rear Upper
• Fits 2010-2011 Volkswagen CC, Rear Upper
• Fits 2012 Volkswagen Eos, Rear Upper
• Fits 2007-2011 Volkswagen Eos, Rear Upper
• Fits 2012 Volkswagen Golf, Rear Upper
• Fits 2010-2011 Volkswagen Golf, Rear Upper
• Fits 2012 Volkswagen Golf R, Rear Upper At Knuckle
• Fits 2012 Volkswagen GTI, Rear Upper
• Fits 2007-2011 Volkswagen GTI, Rear Upper
• Fits 2006 Volkswagen GTI, Rear Upper
• Fits 2012 Volkswagen Tiguan, Rear Upper
• Fits 2009-2011 Volkswagen Tiguan, Rear Upper
• Fits 2008-2010 Volkswagen Passat, Rear Upper
• Fits 2006-2007 Volkswagen Passat, Rear Upper At Knuckle
• Fits 2009-2010 Volkswagen Passat CC, Rear Upper At Knuckle
• Fits 2009 Volkswagen CC, Rear Upper At Knuckle
• Fits 2007-2008 Volkswagen Jetta, Rear Upper
• Fits 2005-2006 Volkswagen Jetta, Rear Upper At Knuckle
• Fits 2008 Volkswagen R32, Rear Upper

Quality Assurance

Delphi applies OE-focused engineering and validation to its aftermarket steering and suspension portfolio. TD1653W is tested for extreme temperature exposure and salt spray resistance, with dimensional and material analysis used to support OE-style compatibility.
