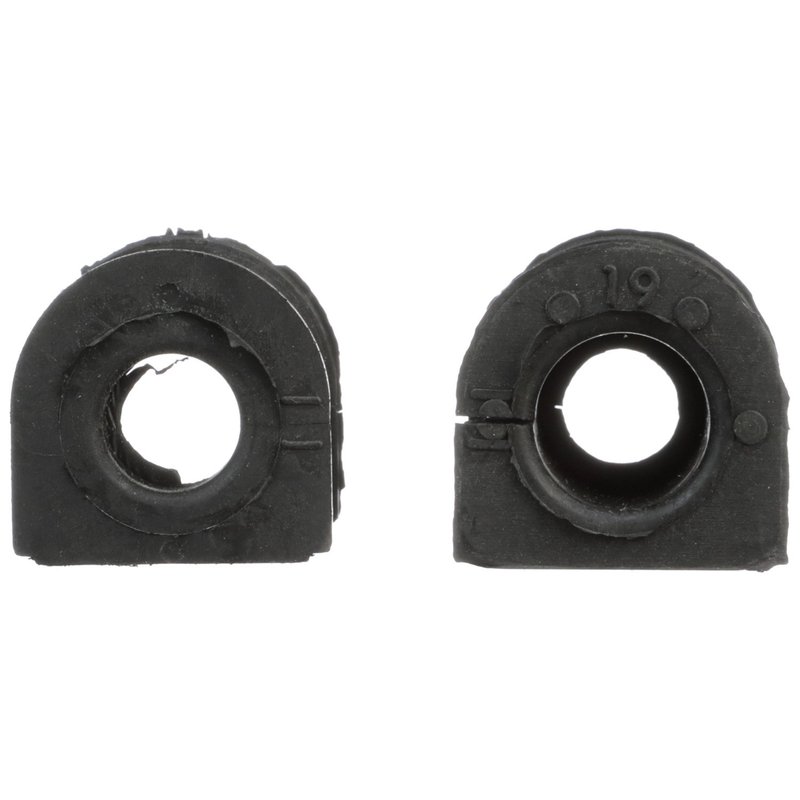

Delphi TD1666W Suspension Stabilizer Bar Bushing Kit - Rear
| Brand | Delphi TD1666W |
|---|---|
| Position | Rear |
| Color | Black |
| Height | 1.307 |
| Height | 33.2 |
| Inside Diameter | 0.728 |
| Inside Diameter | 18.5 |
| Item Grade | Standard Replacement |
| Material | Rubber |
| Outside Diameter | 1.142 |
| Outside Diameter | 29.0 |
| Width | 1.331 |
| Width | 33.8 |
| Fits | Honda and Acura · 13 vehicles |
Standard replacement. OE expertise helps ensure compatibility and dependable fit.
Rubber construction. Provides resilient cushioning for stable suspension movement.
Extreme testing. Built to handle harsh temperatures and long salt-spray exposure.
Cross-references Beck/Arnley 101-7304, MOOG Chassis Products K200205 and 52306-SWA-A01 for the same application. See all 3.
Delphi Rear Stabilizer Bar Bushing Kit TD1666W
Delphi TD1666W is a rear suspension stabilizer bar bushing kit built as a standard replacement for select Honda and Acura applications. It uses rubber construction and OE-focused dimensional analysis to support proper fitment on the rear sway bar mounting points.
For shoppers searching for a rear stabilizer bar bushing kit for 2007-2011 Honda CR-V or rear sway bar bushings for 1999-2003 Acura TL, this Delphi part number TD1666W provides a direct replacement option with OE-style sizing.
Key Features
- Rubber bushing material with black finish
- Rear position application
- Standard replacement item grade
- Inside diameter: 0.728 in / 18.5 mm
- Outside diameter: 1.142 in / 29.0 mm
- Width: 1.331 in / 33.8 mm
- Height: 1.307 in / 33.2 mm
- Delphi part number TD1666W
Detailed Description
Delphi TD1666W is engineered for rear stabilizer bar service where worn bushings can affect sway bar control and suspension response. Delphi applies OE-level dimensional and material analysis to help ensure the bushing matches the intended OE profile, and the brand subjects its steering and suspension components to temperature extremes below -40 degrees C and above 120 degrees C, along with extended salt-spray exposure testing. This makes TD1666W a practical replacement for rear suspension service on 2007-2011 Honda CR-V, 2001-2003 Acura CL, and 1999-2003 Acura TL applications.
This part cross-references Beck/Arnley 101-7304 and MOOG Chassis Products K200205 for the same application.
What It Helps Address
- Rear sway bar clunking from worn bushings
- Excessive play at the stabilizer bar mounting point
- Suspension noise over bumps and uneven pavement
- Reduced rear-end stability caused by deteriorated rubber bushings
- Fitment issues when replacing an aged OE rear stabilizer bar bushing
Installation Notes and Tips
Verify the rear stabilizer bar diameter and bushing dimensions before installation. Clean the mounting surface and inspect the sway bar, brackets, and surrounding hardware for wear or corrosion before reassembly. Confirm rear-position fitment for your vehicle before ordering, especially on 2007-2011 Honda CR-V, 2001-2003 Acura CL, and 1999-2003 Acura TL models.
Quality Assurance
Delphi uses OE-focused testing and material validation for its aftermarket steering and suspension portfolio. TD1666W is built with attention to dimensional accuracy and durability expectations for rear suspension service.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2011 | Honda | CR-V | Rear | — |
| 2010 | Honda | CR-V | Rear | — |
| 2009 | Honda | CR-V | Rear | — |
| 2008 | Honda | CR-V | Rear | — |
| 2007 | Honda | CR-V | Rear | — |
| 2003 | Acura | CL | Rear | — |
| 2003 | Acura | TL | Rear | — |
| 2002 | Acura | CL | Rear | — |
| 2002 | Acura | TL | Rear | — |
| 2001 | Acura | CL | Rear | — |
| 2001 | Acura | TL | Rear | — |
| 2000 | Acura | TL | Rear | — |
| 1999 | Acura | TL | Rear | — |
