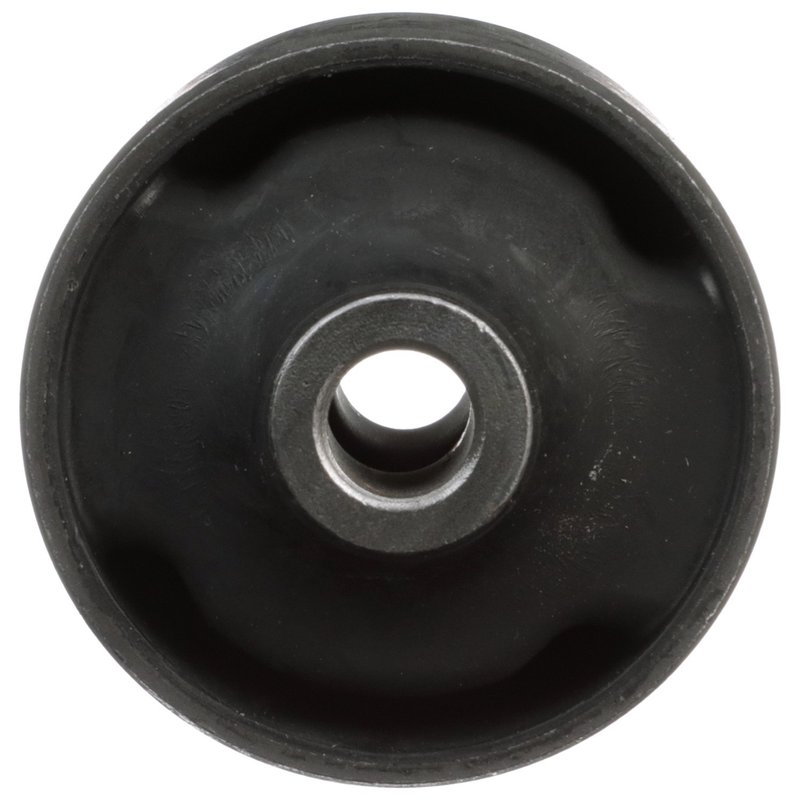

Delphi TD1704W Suspension Control Arm Bushing - Front Lower Rearward

Delphi Suspension Control Arm Bushing Overview

The Delphi TD1704W suspension control arm bushing is designed specifically for the front lower rearward position on Hyundai Santa Fe models. Constructed from durable rubber-steel material, this bushing provides reliable performance and helps maintain proper suspension alignment.

• Material: Rubber-steel for balanced flexibility and strength
• Length: 2.461 inches (62.5 mm)
• Inside Diameter: 0.492 inches (12.5 mm)
• Outside Diameter: 2.571 inches (65.3 mm)
• Color: Gray
• Mounting Type: Pressed-in design
• Mounting Hardware: Not included
• Item Grade: Standard replacement
• Position: Front lower rearward suspension control arm

Detailed Product Description

The Delphi TD1704W suspension control arm bushing is engineered to meet the specifications required for Hyundai Santa Fe vehicles. Its rubber-steel construction offers a balance between vibration dampening and structural integrity, ensuring consistent suspension performance. The pressed mounting type allows for a secure fit within the control arm assembly, maintaining proper alignment and reducing wear on suspension components. With precise dimensions including a 0.492 inch inside diameter and 2.571 inch outside diameter, this bushing fits accurately in the front lower rearward position, contributing to vehicle stability and handling.

Common Applications and Problem Solving

• Reduces suspension noise and vibration in Hyundai Santa Fe front lower control arms
• Prevents excessive play and wear in suspension joints
• Restores proper wheel alignment and handling characteristics
• Addresses issues related to worn or cracked bushings causing uneven tire wear
• Improves overall ride comfort by maintaining suspension geometry

Installation Notes and Tips

Installation of the Delphi TD1704W requires pressing the bushing into the control arm housing. Since mounting hardware is not included, ensure that existing hardware is inspected and replaced if necessary. Proper tools such as a hydraulic press or bushing installation kit are recommended to avoid damage during installation. It is advisable to check suspension alignment after installation to confirm correct positioning and performance.

Quality Assurance and Warranty

Delphi suspension components are manufactured to meet industry standards for durability and performance. The TD1704W bushing is a standard replacement part designed to match OEM specifications for Hyundai Santa Fe vehicles. While specific warranty details may vary, Delphi typically offers coverage against manufacturing defects to ensure product reliability.
