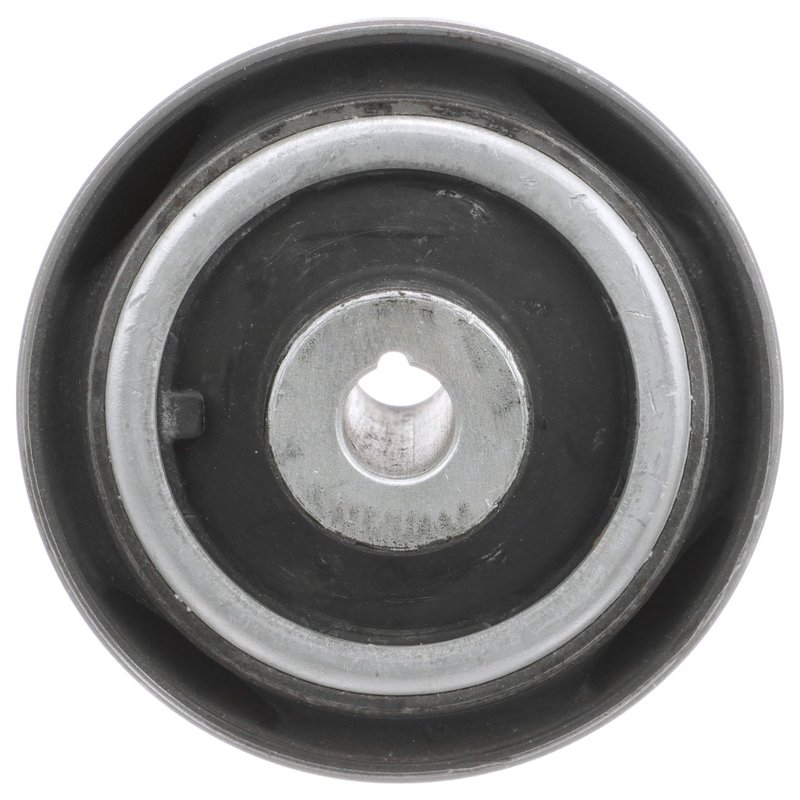

Delphi TD1808W Suspension Control Arm Bushing - Front Right Lower Forward

Delphi TD1808W Front Control Arm Bushing

The Delphi TD1808W is a standard replacement suspension control arm bushing built for front lower forward applications on select Land Rover vehicles. It is engineered using Delphi OE-focused dimensional and material analysis to support proper fitment and consistent suspension performance.

Key Features

• Standard replacement suspension control arm bushing
• Front right lower forward position
• Length: 98.0
• Inside diameter: 14.2
• Outside diameter: 100.3
• Built with OE-based dimensional and material analysis for fit accuracy
• Tested for temperature extremes below -40 C and above 120 C
• Exposed to 720 hours of salt spray during validation

Detailed Description

Delphi TD1808W is a suspension control arm bushing for front lower forward service on Land Rover Discovery, Range Rover, and Range Rover Sport applications. This part number is built to match OE-style dimensions and material requirements, helping maintain the intended suspension geometry and bushing fit in the control arm assembly. Delphi TD1808W is a direct replacement choice for vehicles that need a front right lower forward bushing with verified dimensional compatibility.

This part cross-references Land Rover OE numbers LR0 34219 and LR072470 for the same application.

Vehicle Fitment

• Fits 2019-2022 Land Rover Discovery, front lower forward.
• Fits 2019-2020 Land Rover Range Rover, front lower forward.
• Fits 2019-2020 Land Rover Range Rover Sport, front lower forward.
• Fits 2014-2015 Land Rover Range Rover, front right lower forward, w/o B6 level armouring.
• Fits 2014-2015 Land Rover Range Rover Sport, front right lower forward.
• Fits 2013 Land Rover Range Rover, front right lower forward.

Common Replacement Reasons

• Front suspension clunking or knocking over bumps
• Excessive play in the lower control arm
• Uneven tire wear caused by worn suspension bushings
• Steering feel that becomes loose or imprecise
• Visible cracking, separation, or deterioration in the original bushing

Installation Notes

Verify the control arm position and vehicle configuration before ordering, especially on 2014-2015 Range Rover models with the B6 level armouring note. Inspect the surrounding control arm and mounting points for wear or damage before installation. Confirm the OE reference and dimensions against the removed part to ensure correct front right lower forward fitment.

Quality Assurance

Delphi applies OE-focused testing and material validation to this bushing, including extreme temperature exposure and extended salt spray testing. The brand’s OE engineering background supports consistent aftermarket replacement quality for Land Rover Discovery, Range Rover, and Range Rover Sport suspension service.
