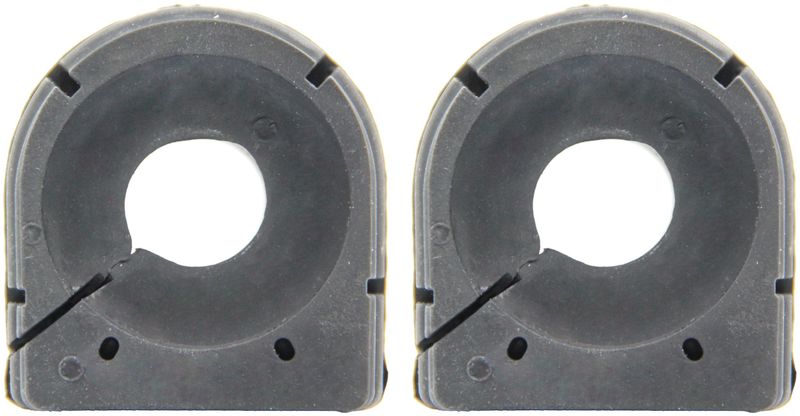

Delphi TD2012W Suspension Stabilizer Bar Bushing Kit - Front

Delphi TD2012W Front Stabilizer Bar Bushings

Restore front suspension control with the Delphi TD2012W suspension stabilizer bar bushing kit. This OE-style rubber bushing set is built for the front position and is engineered for a precise replacement fit on select Mazda CX-5 models.

Compatible with 2013-2016 Mazda CX-5 front applications, the Delphi TD2012W is a standard replacement kit that helps maintain sway bar location and reduce unwanted movement in the suspension. Delphi applies OE dimensional and material analysis to support fitment consistency between original and aftermarket parts.

Key Features

• Suspension stabilizer bar bushing kit for the front position
• Rubber construction with black finish
• Standard replacement grade
• Bushing quantity: 2
• Inside diameter: 18.00 mm (0.709 in)
• Outside diameter: 49.0 mm (1.929 in)
• Dimensions: 40.0 mm length, 40.0 mm width, 53.70 mm height
• No grease fitting, bracket, or mounting hardware included

Detailed Description

The Delphi TD2012W stabilizer bar bushing kit is built for front suspension service on the Mazda CX-5 and is intended to replace worn sway bar bushings with an OE-style rubber design. Delphi subjects its parts to extreme temperature and corrosion testing, including sub-zero and high-heat exposure plus extended salt spray testing, to evaluate durability in demanding conditions. The TD2012W also reflects Delphi’s dimensional and material analysis process for better OE-to-aftermarket compatibility.

This part cross-references Mevotech Supreme MS76879 for the same application. The Delphi TD2012W is a direct-fit suspension stabilizer bar bushing kit for 2013-2016 Mazda CX-5 front suspension service.

Common Problems It Can Help Address

• Front sway bar movement caused by worn bushings
• Clunking or rattling from the front suspension
• Excessive play in the stabilizer bar mounting area
• Reduced steering response from deteriorated rubber bushings
• Noise and vibration transferred through the front suspension

Installation Notes and Tips

Verify the front position and confirm bushing dimensions before installation. Inspect the stabilizer bar and surrounding brackets for wear or corrosion, and replace damaged components as needed. Because mounting hardware is not included, reuse only serviceable existing hardware or source the correct hardware separately.

Quality Assurance

Delphi applies OE-focused engineering and testing to its aftermarket steering and suspension portfolio. The TD2012W is evaluated for temperature resistance and salt spray exposure, and its material and dimensional checks are used to support consistent fitment on 2013-2016 Mazda CX-5 front applications.
