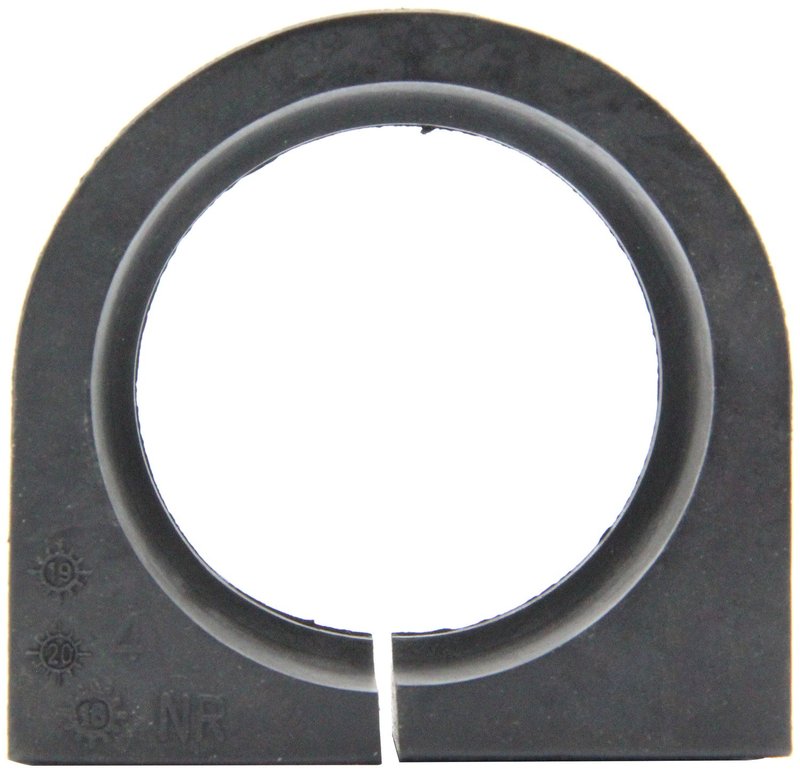

Delphi TD2016W Suspension Stabilizer Bar Bushing Kit - Front

Front Stabilizer Bar Bushing Kit for BMW

Restore front sway bar support with the Delphi TD2016W suspension stabilizer bar bushing kit. This OE-style replacement uses rubber construction and precise dimensions to help maintain proper bar location on select BMW models, including 528i, 535i, 550i, 650i, 750i, 750Li, 760Li, 525i, 530i, 760i, 545i, 645Ci, and 745i applications.

Delphi TD2016W is built as a standard replacement front stabilizer bar bushing kit for vehicles that need consistent suspension control and a secure fit around the sway bar.

Key Features

• Part number TD2016W
• Front stabilizer bar bushing kit
• Rubber construction with black finish
• 2 bushings included
• Standard replacement grade
• Inside diameter: 2.008 in / 51.0 mm
• Dimensions: 1.524 in L x 2.902 in W x 2.862 in H
• No grease fitting included
• No bracket included
• No mounting hardware included

Detailed Description

Delphi applies OE-focused dimensional and material analysis to this front sway bar bushing kit to support proper compatibility with the original suspension layout. The rubber bushings are sized for a 2.008-inch inside diameter and are intended to help secure the stabilizer bar in the front suspension, reducing unwanted movement at the mounting point. Delphi tests components across extreme temperature ranges and salt-spray exposure to verify durability in demanding conditions. If you are replacing worn BMW front stabilizer bushings, TD2016W provides a direct-fit service part for the listed applications.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Fix

• Front suspension clunking from worn sway bar bushings
• Excess stabilizer bar movement at the mounting point
• Loose or imprecise front-end handling feel
• Noise caused by hardened, cracked, or compressed rubber bushings
• Uneven stabilizer bar support on BMW front suspension systems

Installation Notes and Fitment

Compatible With front applications on select BMW models. Fits 2008-2010 BMW 528i, front; 2008-2010 BMW 535i, front; 2006-2010 BMW 550i, front; 2006-2010 BMW 650i, front; 2006-2008 BMW 750i, front; 2006-2008 BMW 750Li, front; 2003-2008 BMW 760Li, front; 2004-2007 BMW 525i, front; 2004-2007 BMW 530i, front; 2004-2006 BMW 760i, front; 2004-2005 BMW 545i, front; 2004-2005 BMW 645Ci, front; 2002-2005 BMW 745i, front.

Verify stabilizer bar diameter and mounting dimensions before installation. Because mounting hardware and bracket are not included, reuse or source the required related components as needed for the repair.

Quality Assurance

Delphi uses OE expertise and extensive material validation to support aftermarket steering and suspension replacement parts. TD2016W is engineered and tested for temperature extremes and corrosion exposure to help maintain consistent performance in service.
