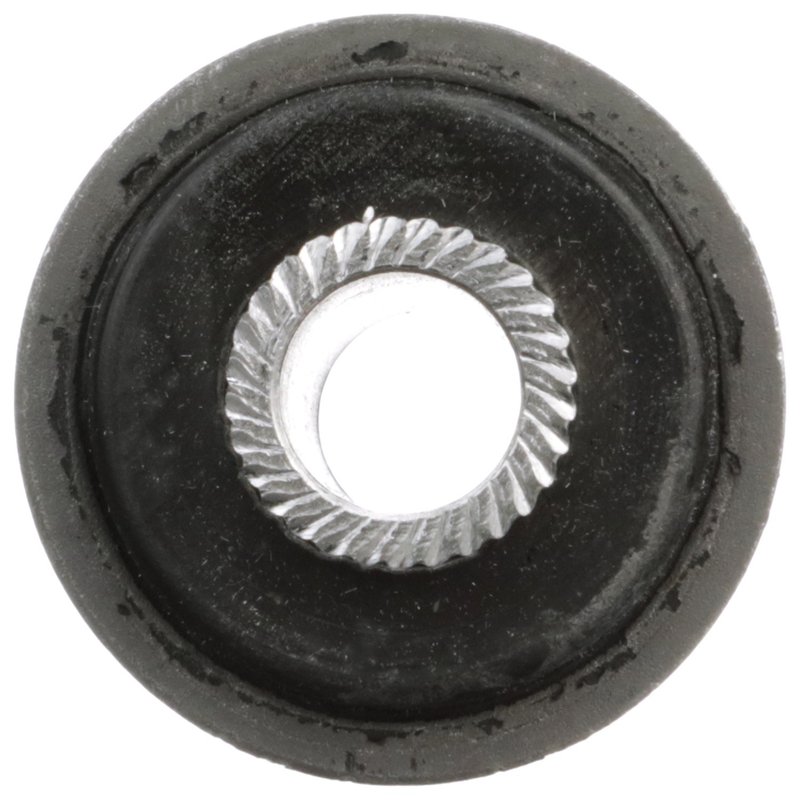

Delphi TD4019W Suspension Control Arm Bushing - Front Arm To Frame (Lower), Front Lower Inner or Rear Upper

Delphi Suspension Control Arm Bushing TD4019W

Delphi TD4019W is a standard replacement suspension control arm bushing built with a rubber-steel construction for stable mounting and consistent suspension location. It is engineered for front and rear applications across select Ford, Mercury, and Lincoln vehicles, including Taurus, Sable, Windstar, and Continental fitments.

Key Features

• Rubber-steel construction for controlled compliance and durability
• Pressed mounting type for direct bushing replacement in the control arm or frame location
• Gray finish
• Standard replacement grade for OE-style service work
• Dimensions: 60.0 mm length, 14.2 mm inside diameter, 39.0 mm outside diameter
• Fits front arm to frame (lower), front lower inner, and rear upper positions depending on vehicle application

Detailed Description

Delphi TD4019W suspension control arm bushing is built to match OE-style dimensional and material requirements for service on the suspension system. Delphi applies dimensional and material analysis to help ensure proper compatibility with the original part, while its OE-focused testing includes exposure to extreme temperatures and extended salt spray conditions. This bushing is a direct service solution for vehicles such as the Ford Taurus, Mercury Sable, Ford Windstar, and Lincoln Continental where the original suspension pivot point needs renewed support and isolation. This part cross-references MOOG Chassis Products K8415 for the same application.

What It Helps Address

• Excessive suspension play at the control arm mounting point
• Clunking or knocking from worn bushing material
• Uneven tire wear caused by loose suspension geometry
• Steering wander or reduced straight-line stability
• Vibration transfer from the suspension into the chassis

Installation Notes and Tips

TD4019W uses a pressed mounting design, so the old bushing must be removed from the control arm or frame location before installation. Verify the exact position on your vehicle before ordering, since this part is used in front arm to frame (lower), front lower inner, and rear upper applications. Confirm inside diameter, outside diameter, and length against the original bushing to ensure proper service fitment on the Ford Taurus, Mercury Sable, Ford Windstar, or Lincoln Continental.

Quality Assurance

Delphi builds this bushing using OE-focused engineering and validation methods, including temperature testing below -40 degrees C and above 120 degrees C, plus 720 hours of salt spray exposure. Those checks support consistent material performance and dimensional accuracy for suspension service.
