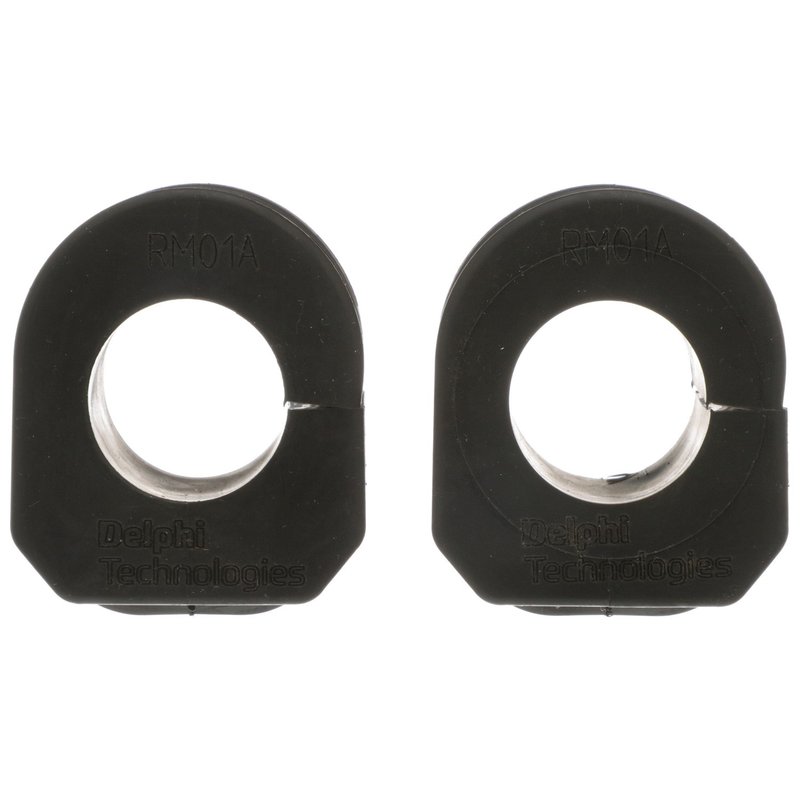

Delphi TD4102W Suspension Stabilizer Bar Bushing Kit - Front To Frame

OE-Style Front Stabilizer Bar Bushing

Delphi TD4102W is a standard replacement suspension stabilizer bar bushing kit for the front to frame position. It uses rubber construction and a 1.125-inch inside diameter to match vehicles with a 1-1/8 inch front sway bar diameter.

Built from Delphi OE-focused engineering, TD4102W is made for direct-fit replacement on a wide range of Chevrolet, GMC, Pontiac, Buick, Cadillac, and Oldsmobile applications. This part cross-references MOOG Chassis Products K6453 and Delphi TD4102W is listed for the same application as 10178646.

Key Features

• Rubber bushing material for standard replacement service
• 1.125-inch inside diameter for 1-1/8 inch stabilizer bars
• Front to frame position
• OE-based dimensional and material analysis for fit consistency
• Tested for temperature extremes and salt spray exposure
• Fits many rear-wheel-drive and truck applications, including Chevrolet Camaro, Pontiac Firebird, and GMC Yukon

Fitment Coverage

• Fits 1976-2002 Chevrolet Camaro, front to frame, with 1-1/8in bar diameter
• Fits 1992-2002 GMC Jimmy, front to frame, with 1-1/8in bar diameter
• Fits 1971-2002 Pontiac Firebird, front to frame, with 1-1/8in bar diameter
• Fits 1990-2001 Chevrolet Lumina, front to frame, with 1-1/8in bar diameter
• Fits 1999-2000 Cadillac Escalade, front to frame, with 1-1/8in bar diameter
• Fits 1988-2000 Chevrolet K2500, front to frame, with 1-1/8in bar diameter
• Fits 1988-2000 Chevrolet K3500, front to frame, with 1-1/8in bar diameter
• Fits 1995-2000 Chevrolet Tahoe, front to frame, with 1-1/8in bar diameter
• Fits 1988-2000 GMC K2500, front to frame, with 1-1/8in bar diameter
• Fits 1988-2000 GMC K3500, front to frame, with 1-1/8in bar diameter
• Fits 1992-2000 GMC Yukon, front to frame, with 1-1/8in bar diameter
• Fits 1988-1999 Chevrolet K1500, front to frame, with 1-1/8in bar diameter
• Fits 1992-1999 Chevrolet K1500 Suburban, front to frame, with 1-1/8in bar diameter
• Fits 1992-1999 Chevrolet K2500 Suburban, front to frame, with 1-1/8in bar diameter
• Fits 1995-1999 Chevrolet Monte Carlo, front to frame, with 1-1/8in bar diameter
• Fits 1978-1988 Chevrolet Monte Carlo, front to frame, with 1-1/8in bar diameter
• Fits 1988-1999 GMC K1500, front to frame, with 1-1/8in bar diameter
• Fits 1992-1999 GMC K1500 Suburban, front to frame, with 1-1/8in bar diameter
• Fits 1992-1999 GMC K2500 Suburban, front to frame, with 1-1/8in bar diameter
• Fits 1978-1997 Oldsmobile Cutlass Supreme, front to frame, with 1-1/8in bar diameter
• Fits 1978-1996 Buick Regal, front to frame, with 1-1/8in bar diameter
• Fits 1991-1996 Buick Roadmaster, front to frame, with 1-1/8in bar diameter
• Fits 1992-1996 Cadillac Commercial Chassis, front to frame, with 1-1/8in bar diameter
• Fits 1993-1996 Cadillac Fleetwood, front to frame, with 1-1/8in bar diameter
• Fits 1985-1986 Cadillac Fleetwood, front to frame, with 1-1/8in bar diameter
• Fits 1980-1996 Chevrolet Caprice, front to frame, with 1-1/8in bar diameter
• Fits 1994-1996 Chevrolet Impala, front to frame, with 1-1/8in bar diameter
• Fits 1980-1985 Chevrolet Impala, front to frame, with 1-1/8in bar diameter
• Fits 1973-1996 Pontiac Grand Prix, front to frame, with 1-1/8in bar diameter
• Fits 1991-1994 Chevrolet Commercial Chassis, front to frame, with 1-1/8in bar diameter
• Fits 1983-1994 Chevrolet S10, front to frame, with 1-1/8in bar diameter
• Fits 1983-1994 Chevrolet S10 Blazer, front to frame, with 1-1/8in bar diameter
• Fits 1991-1994 GMC Sonoma, front to frame, with 1-1/8in bar diameter
• Fits 1991-1994 Oldsmobile Bravada, front to frame, with 1-1/8in bar diameter
• Fits 1987-1992 Cadillac Brougham, front to frame, with 1-1/8in bar diameter
• Fits 1980-1992 Oldsmobile Custom Cruiser, front to frame, with 1-1/8in bar diameter
• Fits 1983-1991 GMC S15 Jimmy, front to frame, with 1-1/8in bar diameter
• Fits 1980-1990 Buick LeSabre, front to frame, with 1-1/8in bar diameter
• Fits 1983-1990 GMC S15, front to frame, with 1-1/8in bar diameter
• Fits 1987-1989 Pontiac Safari, front to frame, with 1-1/8in bar diameter
• Fits 1978-1987 Chevrolet El Camino, front to frame, with 1-1/8in bar diameter
• Fits 1985-1987 Oldsmobile Cutlass, front to frame, with 1-1/8in bar diameter
• Fits 1978-1981 Oldsmobile Cutlass, front to frame, with 1-1/8in bar diameter
• Fits 1985-1987 Oldsmobile Cutlass Salon, front to frame, with 1-1/8in bar diameter
• Fits 1978-1980 Oldsmobile Cutlass Salon, front to frame, with 1-1/8in bar diameter
• Fits 1973-1986 Pontiac Bonneville, front to frame, with 1-1/8in bar diameter
• Fits 1976-1986 Pontiac Parisienne, front to frame, with 1-1/8in bar diameter
• Fits 1973-1974 Pontiac Parisienne, front to frame, with 1-1/8in bar diameter
• Fits 1980-1985 Oldsmobile 98, front to frame, with 1-1/8in bar diameter
• Fits 1980-1985 Oldsmobile Delta 88, front to frame, with 1-1/8in bar diameter
• Fits 1978-1984 Oldsmobile Cutlass Calais, front to frame, with 1-1/8in bar diameter
• Fits 1978-1983 Chevrolet Malibu, front to frame, with 1-1/8in bar diameter
• Fits 1980-1983 Oldsmobile Cutlass Cruiser, front to frame, with 1-1/8in bar diameter
• Fits 1975-1982 Pontiac Grand LeMans, front to frame, with 1-1/8in bar diameter
• Fits 1978-1981 Buick Century, front to frame, with 1-1/8in bar diameter
• Fits 1981 Chevrolet Bel Air, front to frame, with 1-1/8in bar diameter
• Fits 1973-1981 Pontiac Catalina, front to frame, with 1-1/8in bar diameter
• Fits 1973-1981 Pontiac LeMans, front to frame, with 1-1/8in bar diameter
• Fits 1978-1980 Pontiac Grand Am, front to frame, with 1-1/8in bar diameter
• Fits 1973-1975 Pontiac Grand Am, front to frame, with 1-1/8in bar diameter
• Fits 1977-1979 Pontiac Phoenix, front to frame, with 1-1/8in bar diameter
• Fits 1971-1973 Pontiac GTO, front to frame, with 1-1/8in bar diameter

Common Repair Uses

• Front sway bar bushing wear causing looseness or clunking
• Excessive movement at the stabilizer bar where it mounts to the frame
• Restoring steering feel on older Chevrolet, GMC, and Pontiac platforms
• Replacing cracked or hardened rubber bushings
• Addressing front-end noise during turns or over bumps

Installation Notes

Verify the stabilizer bar diameter before ordering; this part is for 1-1/8 inch bars and the front to frame location. Confirm the vehicle application against the listed fitment, especially on models with multiple suspension configurations.

Quality Assurance

Delphi applies OE-focused dimensional and material analysis to support fit consistency. The part is tested for extreme temperatures below -40 degrees C and above 120 degrees C, and it is exposed to 720 hours of salt spray during validation.
