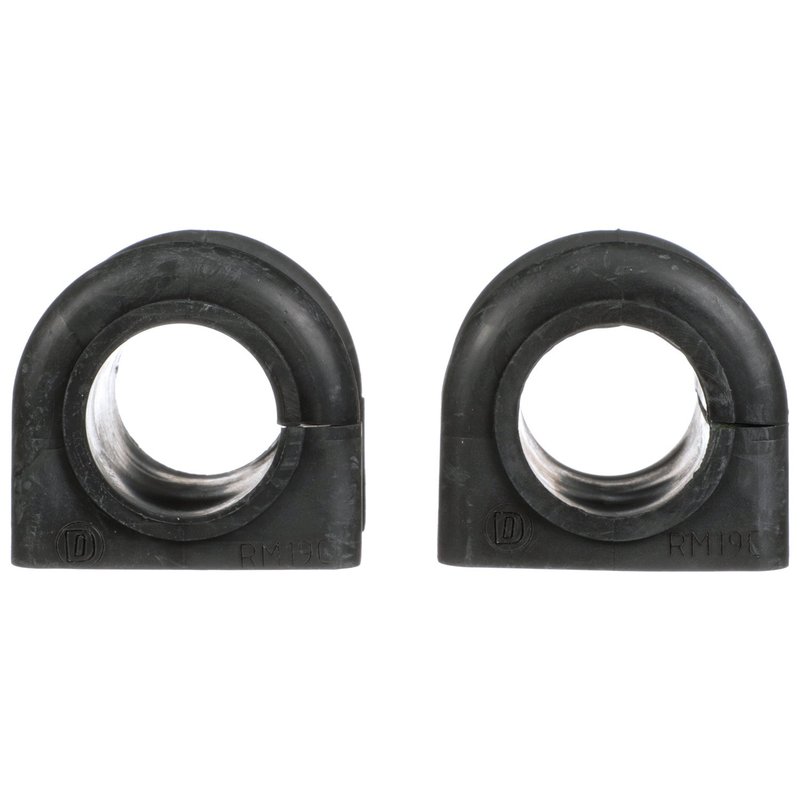

Delphi TD4193W Suspension Stabilizer Bar Bushing Kit - Front

Front Stabilizer Bar Bushing Kit

Delphi TD4193W is a front suspension stabilizer bar bushing kit built as a standard replacement for select Ram, Jeep, and Dodge applications. It uses rubber construction and a 1.259-inch inside diameter to support proper sway bar location and front-end control.

Delphi applies OE-focused dimensional and material analysis to help ensure accurate fitment between the original part and the aftermarket replacement. This front stabilizer bar bushing kit is engineered for vehicles such as the Ram 1500, Ram 2500, Ram 3500, Jeep Wrangler, and Dodge Dakota where front sway bar service is needed.

Key Features

• Rubber bushing material for standard replacement service
• 1.259-inch inside diameter
• Front position application
• OE-based dimensional and material analysis for fit accuracy
• Built for front sway bar support on Ram, Jeep, and Dodge platforms
• Part number TD4193W for catalog and service reference

Detailed Description

Delphi TD4193W is a front suspension stabilizer bar bushing kit for vehicles using a 32mm diameter sway bar or front-to-frame mounting, depending on application. It is listed for select Ram 1500, Ram 2500, Ram 3500, Jeep Wrangler, Jeep TJ, Dodge Ram 1500, Dodge Ram 2500, Dodge Ram 3500, Dodge Dakota, and Dodge Durango models. This part cross-references MOOG Chassis Products K7353 for the same application.

Delphi subjects its OE safety technology and aftermarket steering and suspension parts to extreme temperature and salt-spray testing, helping validate durability across demanding road conditions. The TD4193W part number is a direct reference for shoppers searching for a front sway bar bushing kit for Ram 2500 front to frame service or Jeep Wrangler front stabilizer bar repair.

What It Helps Address

• Front sway bar movement caused by worn rubber bushings
• Clunking or rattling from the front stabilizer bar area
• Loose-feeling front suspension response
• Excessive play at the sway bar mounting point
• Wear-related service needs on Ram, Jeep, and Dodge front suspension systems

Installation Notes

Verify the vehicle’s sway bar diameter and mounting style before ordering. Fitment includes front and front-to-frame positions, with notes for 32mm diameter sway bar and independent front suspension on specific applications. Confirm the exact year, make, model, and front suspension configuration for Ram 1500, Ram 2500, Ram 3500, Jeep Wrangler, and Dodge Dakota or Durango service.

Quality Assurance

Delphi uses OE-based engineering, dimensional analysis, and material validation to support consistent replacement quality. The part is tested for extreme temperatures below -40 degrees C and above 120 degrees C, and for 720 hours of salt spray exposure.
