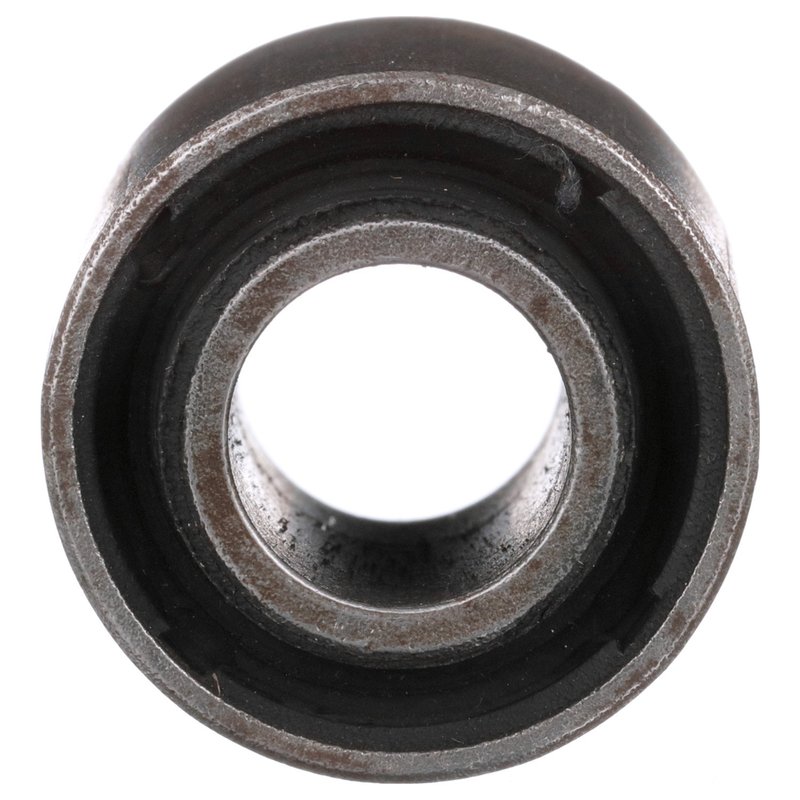

Delphi TD4297W Suspension Control Arm Bushing - Front Lower Forward

OE-Style Front Lower Forward Bushing

The Delphi TD4297W is a standard replacement suspension control arm bushing for the front lower forward position. Built with a rubber-steel construction, it is made for direct-fit service on select Nissan Altima and Nissan Maxima applications.

Delphi applies OE-focused dimensional and material analysis to help match aftermarket fit and function to the original part. This bushing is engineered for vehicles that need a pressed-in suspension bushing with the correct inside and outside dimensions for the specified front lower forward location.

Key Features

• Part number: TD4297W
• Suspension control arm bushing for front lower forward placement
• Rubber-steel construction for standard replacement service
• Pressed mounting type
• Black finish
• Inside diameter: 18.2 mm
• Outside diameter: 38.5 mm
• Length: 50.0 mm
• Compatible with 1993-2001 Nissan Altima, front lower forward
• Compatible with 1995-1999 Nissan Maxima, front lower forward

Detailed Description

Delphi TD4297W is a suspension control arm bushing designed for the front lower forward position on select Nissan passenger cars. It is a rubber-steel OE-style replacement that supports the control arm’s pivot point and helps restore the original bushing interface when the factory part is worn or damaged. This part cross-references MOOG Chassis Products (e.g., K200152) for the same application.

Use TD4297W when servicing a 1993-2001 Nissan Altima or a 1995-1999 Nissan Maxima at the front lower forward control arm location. The pressed design and listed dimensions help ensure proper seating in the control arm and correct alignment with the original suspension geometry.

Common Repair Applications

• Front suspension clunking or looseness from a worn control arm bushing
• Excessive play at the front lower forward control arm pivot
• Cracked, separated, or deteriorated rubber bushing material
• Uneven tire wear related to suspension bushing wear
• Restoring stable front suspension response on Nissan Altima and Nissan Maxima models

Installation Notes and Tips

TD4297W uses a pressed mounting type, so the old bushing must be removed from the control arm before installation. Inspect the control arm, mounting bore, and surrounding suspension components for wear or damage before pressing in the new bushing. Verify the front lower forward position and confirm vehicle fitment by year, make, and model before service.

Quality Assurance

Delphi subjects its OE-focused steering and suspension parts to temperature and corrosion testing, including exposure to extreme cold, high heat, and extended salt spray. The brand also uses dimensional and material analysis to support OE-level compatibility for the aftermarket replacement part.
