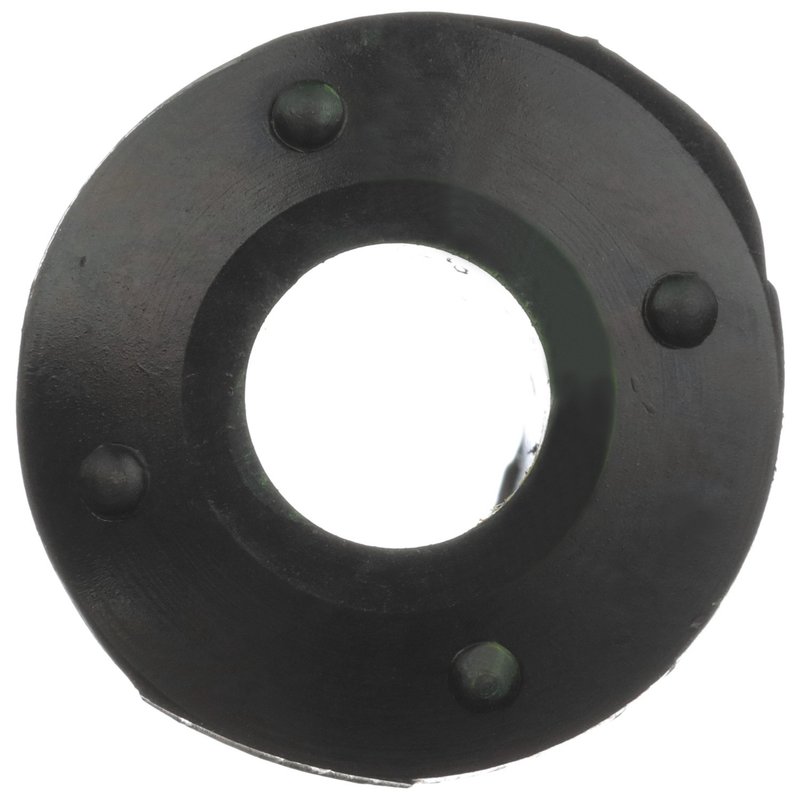

Delphi TD4505W Leaf Spring Shackle Bushing - Front Upper Rearward, Rear Upper or Rear Upper Rearward

Delphi TD4505W Leaf Spring Shackle Bushing

Delphi TD4505W is a standard replacement leaf spring shackle bushing made from rubber with a black finish. It is built for rear suspension service on select Jeep CJ5, CJ7, and Scrambler applications, including front upper rearward and rear upper rearward positions where specified.

Key Features

• Rubber construction for suspension isolation
• Black finish
• Inside diameter: 0.505 in. / 12.8 mm
• Outside diameter: 1.27 in. / 32.3 mm
• Height: 1.27 in. / 32.3 mm
• Standard replacement grade
• Bolts not included

Application Details

Compatible with 1976-1986 Jeep CJ7, front upper rearward; 1976-1980 Jeep CJ7, rear upper rearward; 1976-1983 Jeep CJ5, front upper rearward; 1976-1980 Jeep CJ5, rear upper rearward; and 1981-1984 Jeep Scrambler, front upper rearward. For Jeep CJ5, Jeep CJ7, and Scrambler suspension service, verify the position listed for your vehicle before ordering.

This part cross-references Monroe Shocks & Struts (e.g., 3219783, 5353571) for the same application.

Detailed Description

Delphi TD4505W is a leaf spring shackle bushing engineered as an OE-style replacement for select Jeep suspension setups. Delphi applies dimensional and material analysis to help ensure proper part-to-vehicle matching, and the bushing is tested for demanding temperature exposure and corrosion resistance conditions used in OE validation. For Jeep CJ5, CJ7, and Scrambler models, this bushing supports the leaf spring shackle connection at the specified front upper rearward or rear upper rearward location.

Common Repair Uses

• Replacing worn or cracked leaf spring shackle bushings
• Addressing suspension noise from deteriorated rubber bushings
• Restoring proper leaf spring mounting support
• Correcting looseness at the shackle connection point
• Servicing Jeep CJ5, CJ7, or Scrambler rear suspension hardware

Installation Notes

Confirm the suspension position before installation, since this part is listed for front upper rearward and rear upper rearward locations depending on vehicle application. Compare the original bushing dimensions to the listed measurements of 0.505 in. inside diameter, 1.27 in. outside diameter, and 1.27 in. height. Bolts are not included, so reuse or replacement hardware must be sourced separately if needed.

Quality Assurance

Delphi uses OE-focused engineering and validation methods for its aftermarket steering and suspension components. This bushing is part of a standard replacement line built around dimensional accuracy, material consistency, and durability testing for temperature and salt-spray exposure.
